Siemens CU240S DP-F Parameter Manual

List of Parameters
Parameters
1-253
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007

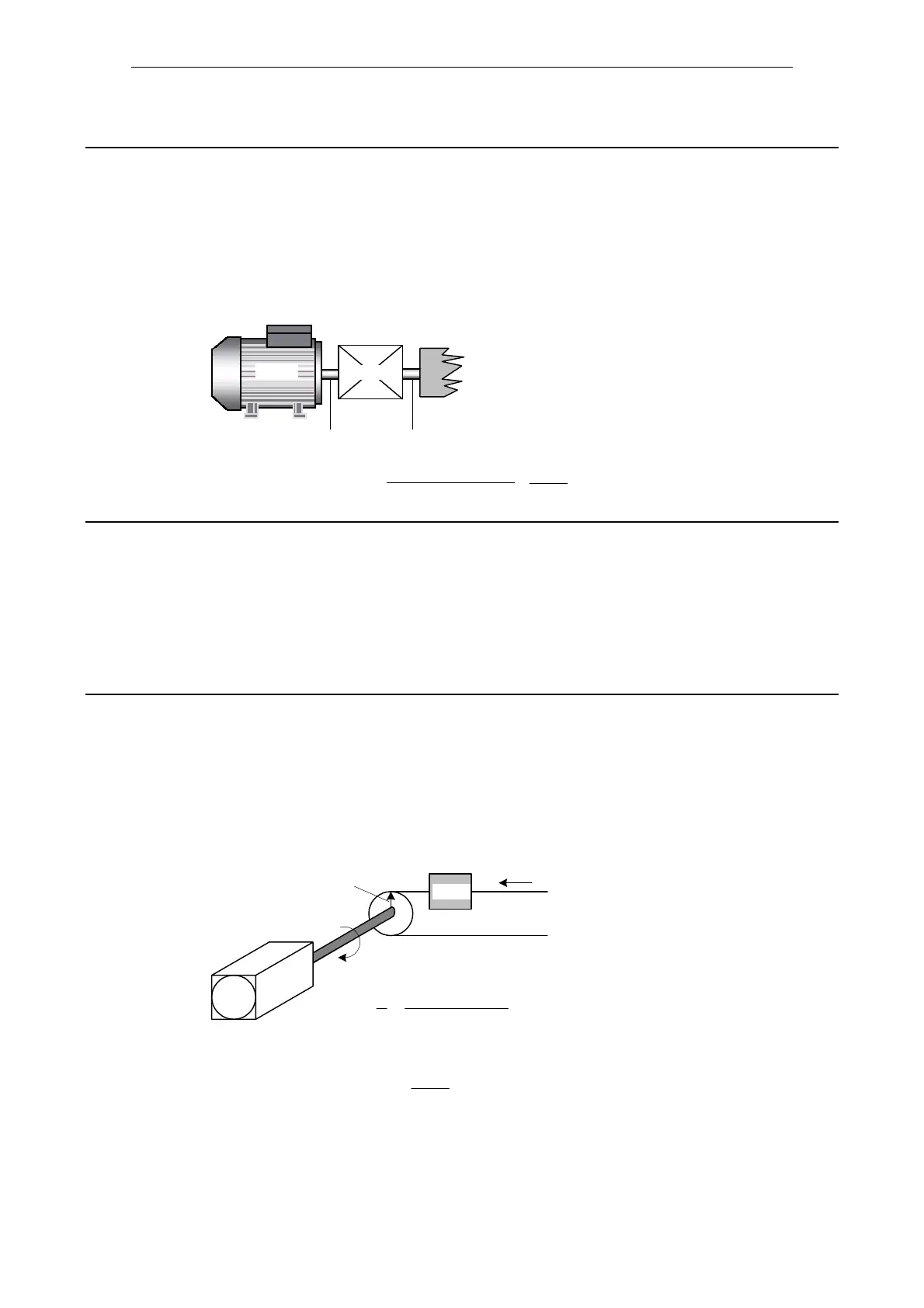

Description: P2481 and P2482 define the gear box ratio for the positioning ramp down functionality. P2481 sets the motor shaft
side (gear box input).
Description: P2481 and P2482 define the gear box ratio for the positioning ramp down functionality. P2482 sets the load side
(gear box output).
Description: Sets the number of rotations of the motor shaft required to represent 1 unit of user selected units.
The following equation determines the number of motor shaft revolutions to stop:
p2481[0...2] Gearbox ratio input / Gearbox ratio in
Access level: 3 P-Group: Closed-loop control Data type: Floating Point
Quick comm. NO Active: NO Data set: DDS
Can be changed: U, T
Min Max Factory setting
0.01 9999.99 1.00
n n
Motor Load
Load
i
i =
P2482
P2481
=
Motor revolutions
Load revolutions
Motor
Gear
p2482[0...2] Gearbox ratio output / Gearbox ratio out
Access level: 3 P-Group: Closed-loop control Data type: Floating Point
Quick comm. NO Active: NO Data set: DDS
Can be changed: U, T
Min Max Factory setting
0.01 9999.99 1.00
p2484[0...2] No. of shaft turns = 1 Unit / Position ref. unit
Access level: 3 P-Group: Closed-loop control Data type: Floating Point
Quick comm. NO Active: NO Data set: DDS
Can be changed: U, T
Min Max Factory setting
0.01 9999.99 1.00
==
s
U
P2484
Load
Mo
t
o
r
Pulley radius r
No. of revolutions
1 [unit]
U
Distance s
2482P
2481P
2484P2488P ⋅⋅=
Revolutions
Motor
