Siemens CU240S DP-F Parameter Manual

List of Parameters
Parameters
1-275
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: Define inputs of Multiplier 2, result is in P2880.
Index: [0] = Connector input 0 (CI 0)
[1] = Connector input 1 (CI 1)
Dependency: P2802[9] is active level for the Multiplier.
Description: Result of Multiplier 2.
Dependency: P2802[9] is active level for the Multiplier.

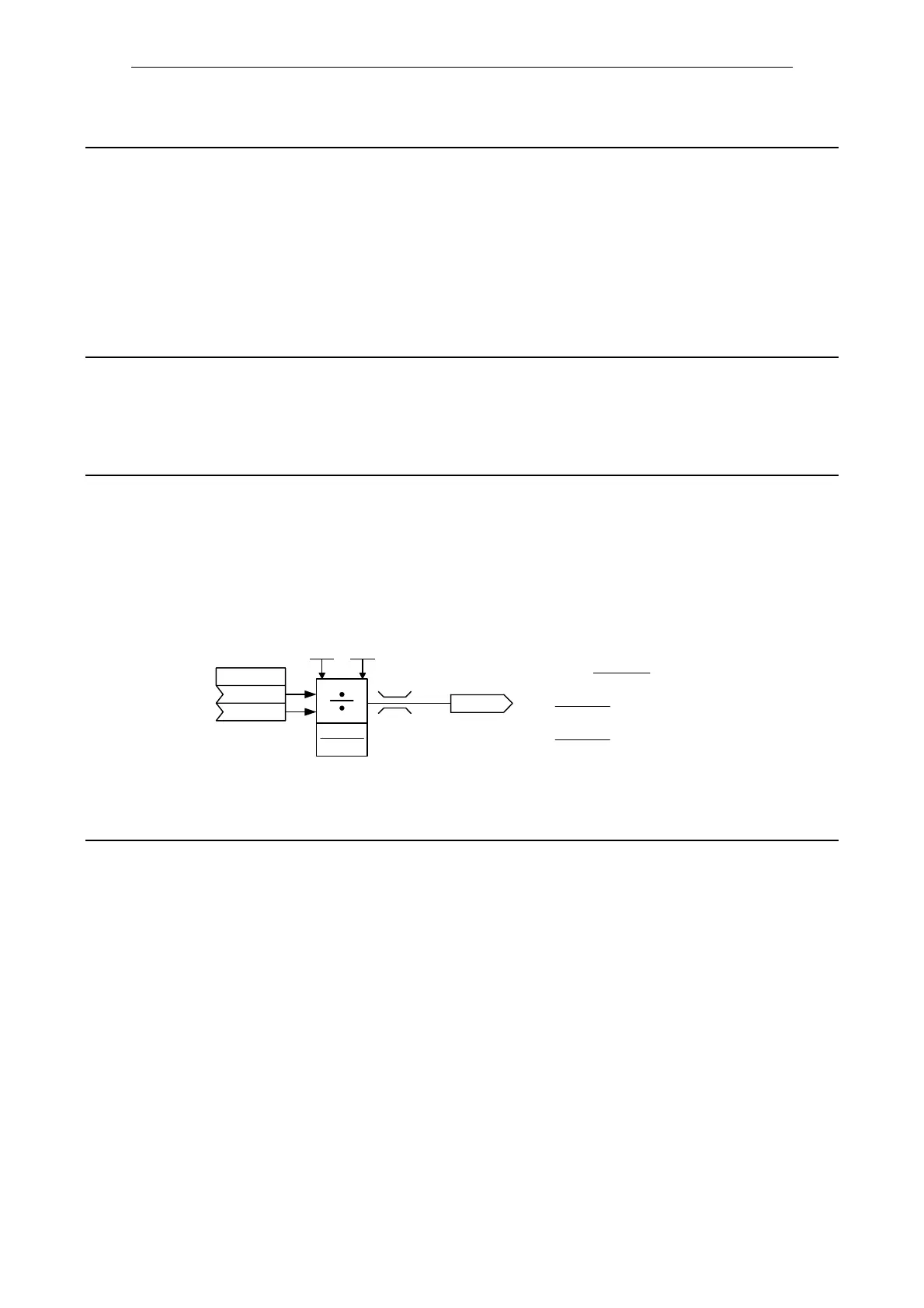

Description: Define inputs of Divider 1, result is in P2882.
Index: [0] = Connector input 0 (CI 0)
[1] = Connector input 1 (CI 1)
Dependency: P2802[10] is active level for the Divider.
Description: Result of Divider 1.
Dependency: P2802[10] is active level for the Divider.
p2879[0...1] CI: MUL 2 / MUL 2
Access level: 3 P-Group: Technology Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: U, T
Min Max Factory setting
- - 755[0]
r2880 CO: MUL 2 / MUL 2
Access level: 3 P-Group: Technology Data type: Floating Point
Unit: [%] Data set: -
p2881[0...1] CI: DIV 1 / DIV 1
Access level: 3 P-Group: Technology Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: U, T
Min Max Factory setting
- - 755[0]
r2882
x1
x2
200%
-200%
2X
%1001x ∗
x2
100%x1∗
p2800
p2802[10]
> 200%
→
< -200%
→
x2
100%x1
x2
100%x1
∗
∗
Result = 200%
Result = -200%
If:
p2881
Index1
Index0
Result =
Result
r2882 CO: DIV 1 / DIV 1
Access level: 3 P-Group: Technology Data type: Floating Point
Unit: [%] Data set: -
