Siemens CU240S DP-F Parameter Manual

Internal Setpoint Source
Function diagrams
2-337
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007

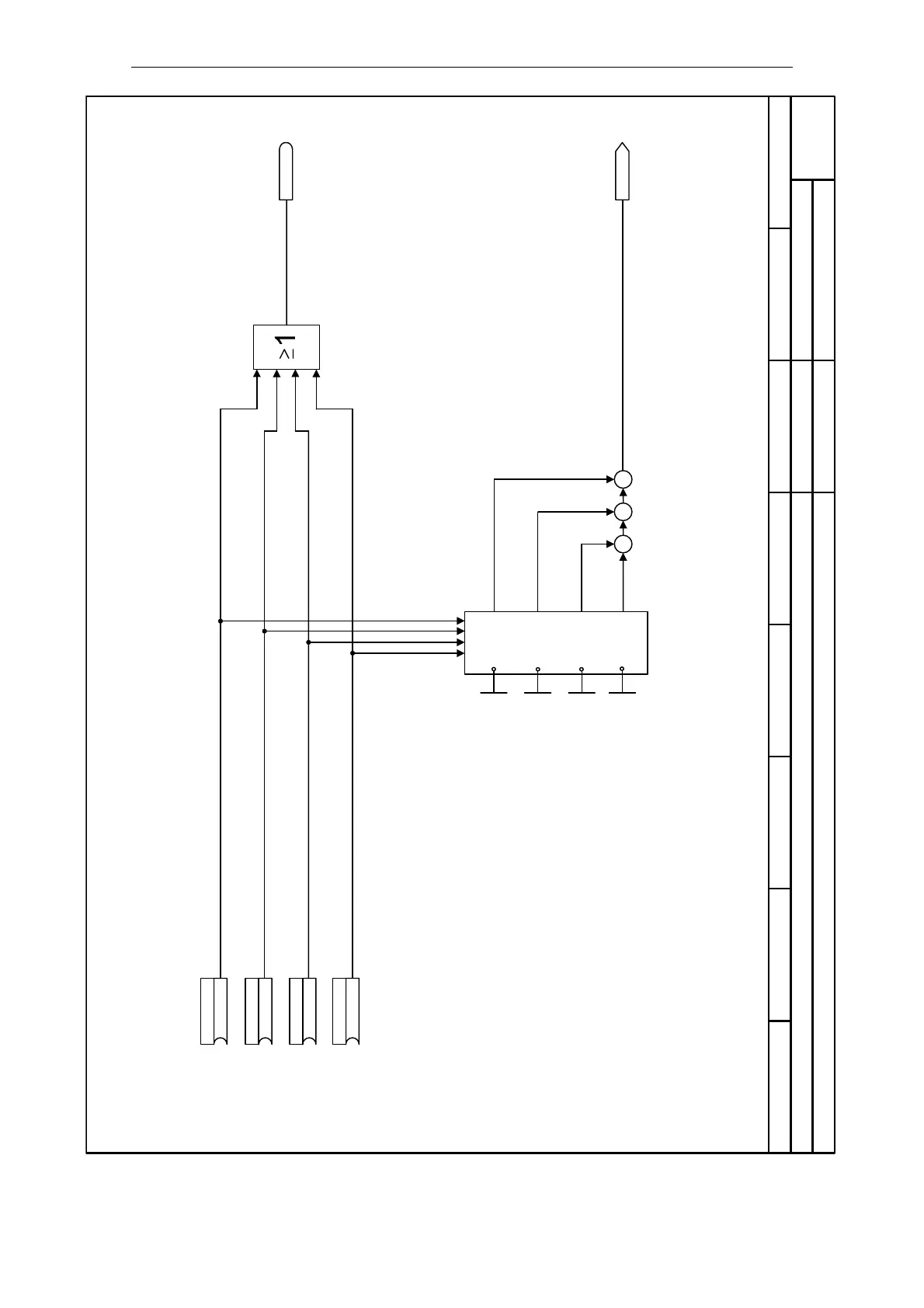

Fig. 2-16 3200 – Fixed Frequency (FF) Direct Selection (P1016 = 1)
- 3200 -
Function diagram
87654321
3200_FF.vsd
Internal Setpoint Source
SINAMICS G120
02.04.2007 V3.0
Fixed Frequency (FF) Direct Selection (P1016 = 1)
0 0 0 1
0 1 0 0
1 0 0 0
0 0 1 0
+++
Fixed frequency 1
-650.00 ... 650.00 [Hz]
P1001.DDS ( 0.00)
(722.3)
FF sel. Bit 0 P1020.CDS
FF Status
r1025 r1024
Act. FF [Hz]
(722.4)
FF sel. Bit 1
P1021.CDS
(722.5)
FF sel. Bit 2
P1022.CDS
(722.6)
FF sel. Bit 3 P1023.CDS
Fixed frequency 2
-650.00 ... 650.00 [Hz]
P1002.DDS ( 5.00)
Fixed frequency 3
-650.00 ... 650.00 [Hz]
P1003.DDS ( 10.00)
Fixed frequency 4
-650.00 ... 650.00 [Hz]
P1004.DDS ( 15.00)
