Siemens CU240S DP-F Parameter Manual

Parameters
List of Parameters
1-230
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: Defines torque threshold for comparing actual torque.
Description: Delay time for comparing actual torque to threshold.
Description: Delay time for identification that motor is blocked.
p2174[0...2] Torque threshold M_thresh / Torque threshold
Access level: 2 P-Group: Messages Data type: Floating Point
Quick comm. NO Active: YES Data set: DDS
Can be changed: U, T
Min Max Factory setting
0.00 [Nm] 99999.00 [Nm] 5.13 [Nm]
–
+
0
1
{
0
1

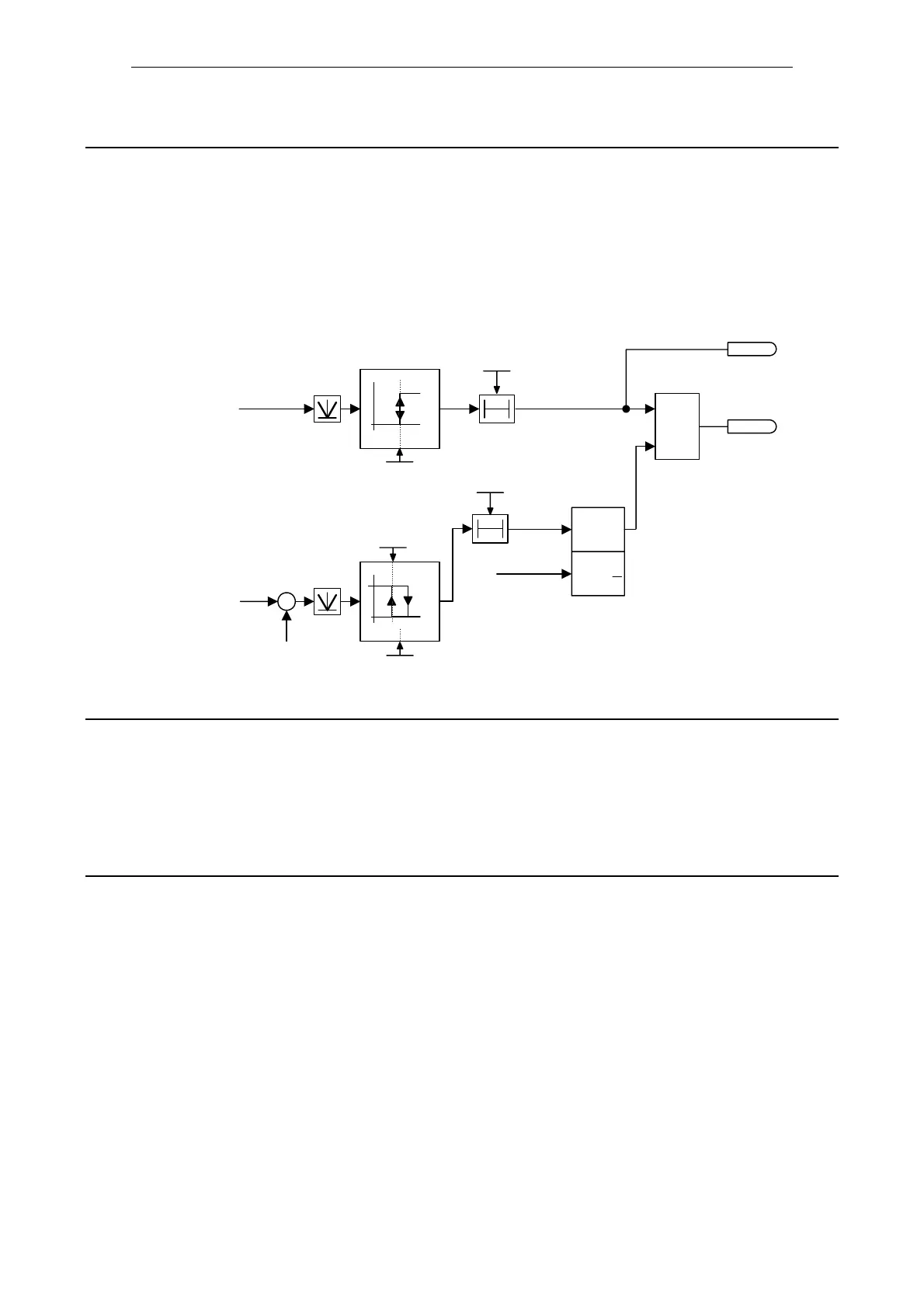

SET
(Q=1) Q
RESET
(Q=0) Q
&
Entry freq. deviat
0.00 ... 20.00 [Hz]
P2163.D (3.00)
Hyster freq deviat
0.00 ... 10.00 [Hz]
p2164.D (3.00)
Delay_T rampUpCmpl
0 ... 10000 [ms]
p2166.D (10)
Torque threshold
0.00 ... 99999.00 [Nm]
p2174.D (5.13)
Delay time torque
0 ... 10000 [ms]
p2176.D (10)
f_act
RFG active
f_set
Ramp-up
completed
(active-high)
| M_actNoAcc |
> M_thresh
| M_act | > M_thresh
| M_act | > M_thresh
| M_actNoAcc | > M_thresh
Priority
1 RESET
2 SET
T0
T0
r2198 Bit10
r2198 Bit09
M_act
p2176[0...2] Delay time for torque threshold / Delay time torque
Access level: 2 P-Group: Messages Data type: Unsigned16
Quick comm. NO Active: YES Data set: DDS
Can be changed: U, T
Min Max Factory setting
0 [ms] 10000 [ms] 10 [ms]
p2177[0...2] Delay time for motor is blocked / Delay_T MotBlocked
Access level: 2 P-Group: Messages Data type: Unsigned16
Quick comm. NO Active: YES Data set: DDS
Can be changed: U, T
Min Max Factory setting
0 [ms] 10000 [ms] 10 [ms]
