Siemens CU240S DP-F Parameter Manual

External Interfaces
Function diagrams
2-327
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007

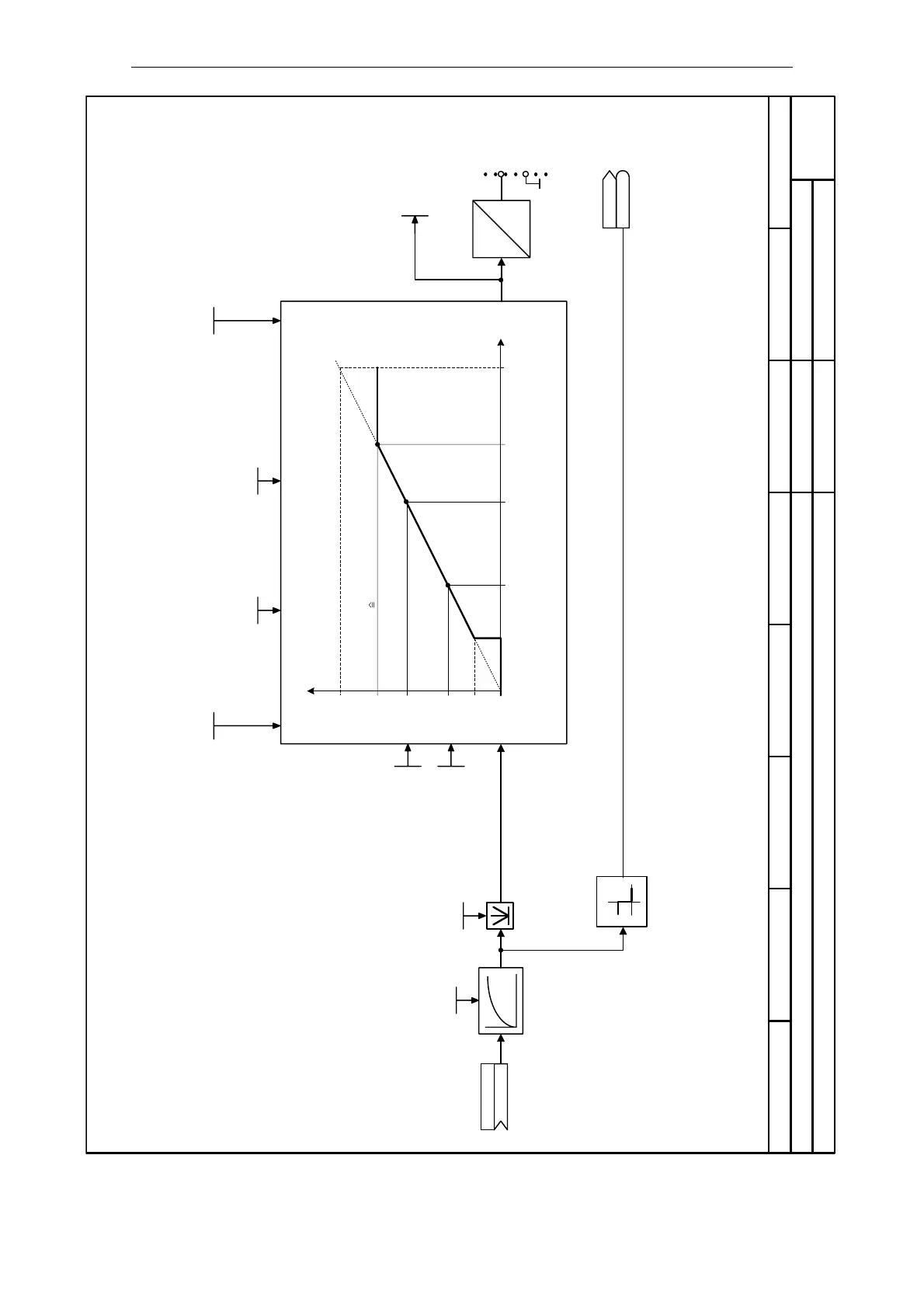

Fig. 2-7 2300 – Analog Output (AO)
- 2300 -
Function diagram
87654321
2300_Analog_Out.vsd
External Interfaces
SINAMICS G120
02.04.2007 V3.0
Analog Output (AO)
A
D
x(t)
x
2
x
1
y
2
y
1
4000 h 4000 h 20 mA
x
20mA
100 %
20 mA
mA
y
100%
%
P0781
Analog output
AO
(21[0])
P0771 [2]
Smooth time AO
0 ... 1000 [ms]
P0773 [2] (2)
Value y1:AO scal.
0 ... 20
P0778 [2] (0)
Value y2:AO scal.
0 ... 20
P0780 [2] (20)
Value x1:AO scal.
-99999.0 ... 99999.0 [%]
P0777 [2] (0.0)
Value x2:AO scal.
-99999.0 ... 99999.0 [%]
P0779 [2] (100.0)
Type of AO
0 ... 1
P0776 [2] (0)
AO deadband width
0 ... 20
P0781 [2] (0)
Act.AO val.[V/mA]
r0774 [2]
1
0
Enable ab. value
0 ... 65535
P0775 [2] (0)
AO stat Wd
r0785 r0785
