Parameters
List of Parameters
1-204
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: Selects signals to be transmitted to serial interface via USS on RS232.
This parameter allows the user to define the source of the status words and actual values for the reply PZD.
Index 0 cannot be changed and contains always statusword 1.
Example: P2016[0] = 52.0 (default). In this case, the value of r0052 (CO/BO: Status word) is transmitted as 1st PZD to the
USS on RS232.
Index: [0] = Transmitted word 0
[1] = Transmitted word 1
[2] = Transmitted word 2
[3] = Transmitted word 3
[4] = Transmitted word 4
[5] = Transmitted word 5
[6] = Transmitted word 6
[7] = Transmitted word 7
Note: If r0052 not indexed, display does not show an index (".0" ).
p2016[0...7] CI: PZD to USS on RS232 / PZD->USS
Access level: 3 P-Group: Communications Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: T
Min Max Factory setting
- - 52[0]
P2012

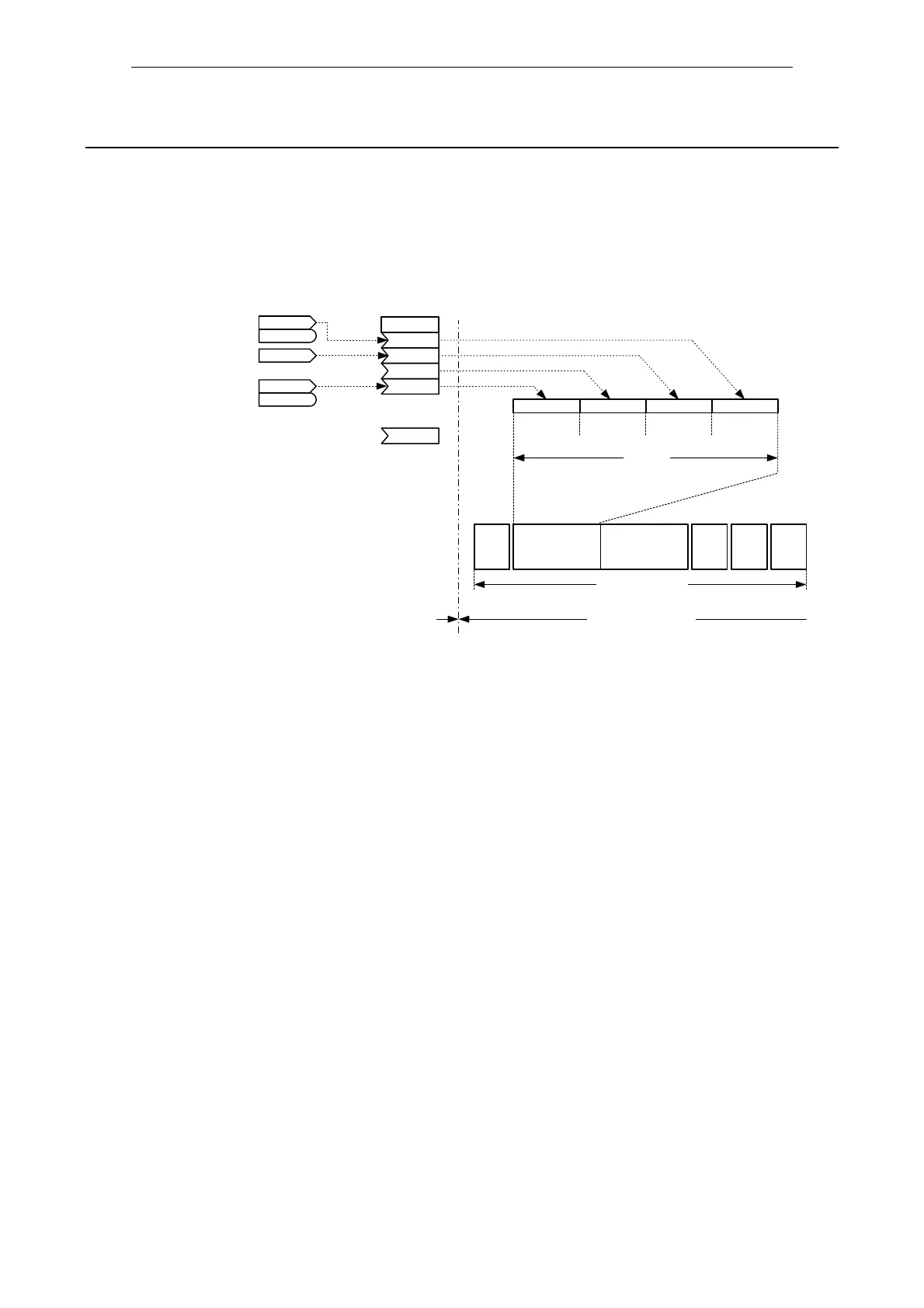

PZD mapping from parameter P2016
.
.
.
PZD1
ZSW1
PZD2
HIW
PZD3PZD4
ZSW2
[0]
P2016
[1]
[2]
[3]
[7]
STX
LGE
ADR
PKW
PZD
BCC
ZSW
HIW
r0021
r0052
r0052
r0053
r0053
Start of text
Length
Address
Parameter ID value
Process data
Block check character
USS telegram
STXLGEADRBCC
PKWPZD
Process data
Parameter
Status word
Main actual value
USS on RS232
