Siemens CU240S DP-F Parameter Manual

Parameters
List of Parameters
1-274
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: Define inputs of Subtracter 2, result is in P2876.
Index: [0] = Connector input 0 (CI 0)
[1] = Connector input 1 (CI 1)
Dependency: P2802[7] is active level for the Subtracter.
Description: Result of Subtracter 2.
Dependency: P2802[7] is active level for the Subtracter.

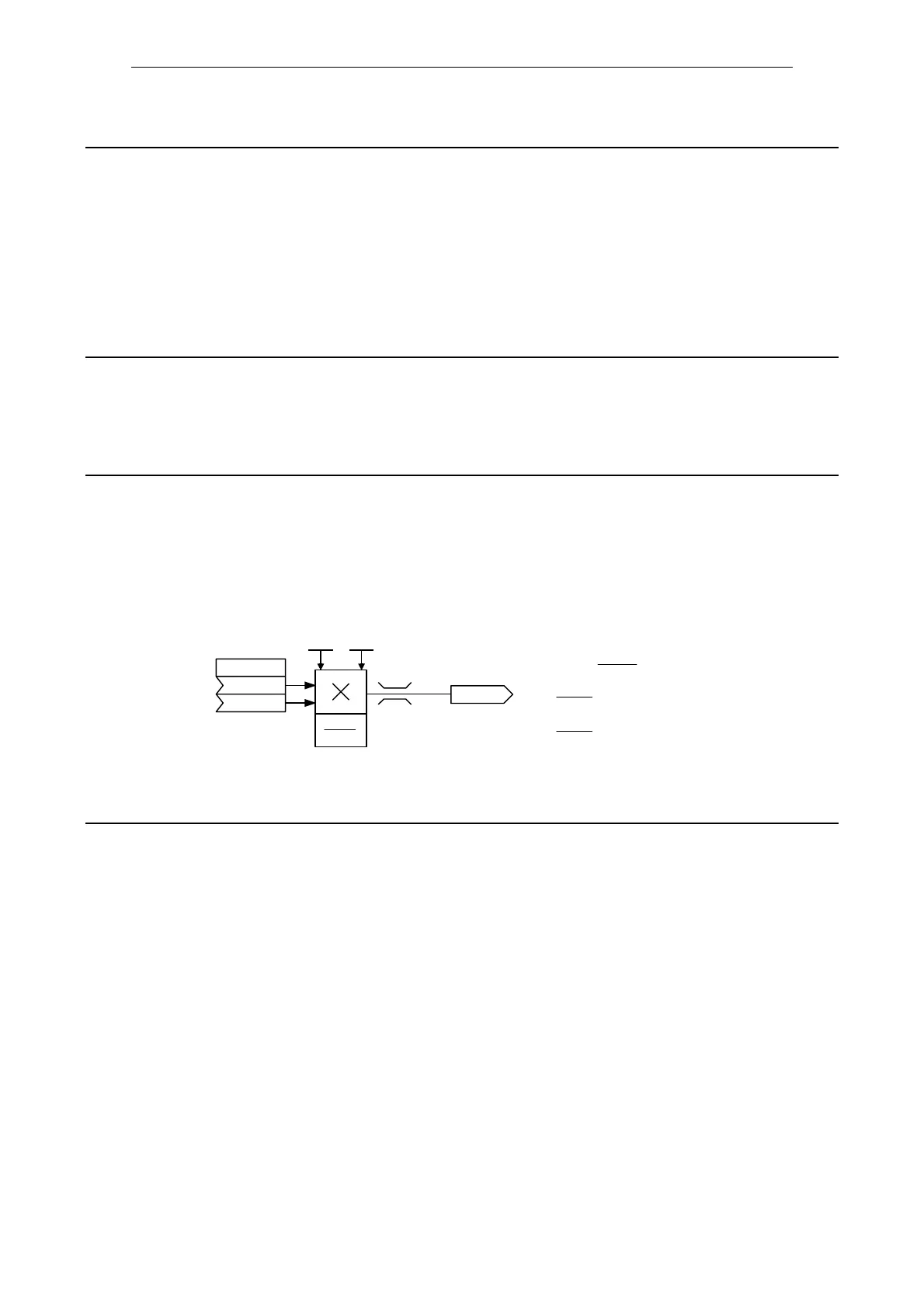

Description: Define inputs of Multiplier 1, result is in P2878.
Index: [0] = Connector input 0 (CI 0)
[1] = Connector input 1 (CI 1)
Dependency: P2802[8] is active level for the Multiplier.
Description: Result of Multiplier 1.
Dependency: P2802[8] is active level for the Multiplier.
p2875[0...1] CI: SUB 2 / SUB 2
Access level: 3 P-Group: Technology Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: U, T
Min Max Factory setting
- - 755[0]
r2876 CO: SUB 2 / SUB 2
Access level: 3 P-Group: Technology Data type: Floating Point
Unit: [%] Data set: -
p2877[0...1] CI: MUL 1 / MUL 1
Access level: 3 P-Group: Technology Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: U, T
Min Max Factory setting
- - 755[0]
r2878
x1
x2
200%
-200%
100%
x2x1∗
> 200%
→
< -200%
→
%100
2x1x
%100
2x1x
∗
∗
Result = 200%
Result = -200%
If:
p2877
Index0
Index1
%100
2x1x ∗
p2800
p2802[8]
Result =
Result
r2878 CO: MUL 1 / MUL 1
Access level: 3 P-Group: Technology Data type: Floating Point
Unit: [%] Data set: -
