Siemens CU240S DP-F Parameter Manual

List of Parameters
Parameters
1-211
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: Selects if native ident number (0) or NAMUR ident number (1) is send to the PLC.
Values: 0: Native
1: Namur
Note: After changing P2042, a power cycle must be done to have changes take effect.
See also : Switching to / from Namur in the description of parameter P0922.
Description: Displays PZD received from Fieldbus.
Index: [0] = Received word 0
[1] = Received word 1
[2] = Received word 2
[3] = Received word 3
[4] = Received word 4
[5] = Received word 5
[6] = Received word 6
[7] = Received word 7
Note: The control words can be viewed as bit parameters r2090 and r2091.
p2042 Selection of ident number / Ident nb
Access level: 3 P-Group: - Data type: Unsigned16
Quick comm. NO Active: NO Data set: -
Can be changed: T
Min Max Factory setting
0 1 0
r2050[0...7] CO: PZD from Fieldbus / PZD from FB
CU240S DP
CU240S DP-F
CU240S PN
Access level: 3 P-Group: Communications Data type: Unsigned16
Unit: - Data set: -
r2090
[0]
r2050
[1]
[2]
[3]
PZD1
STW1
PZD2PZD3PZD4
PZD
STW
HSW
Fieldbus

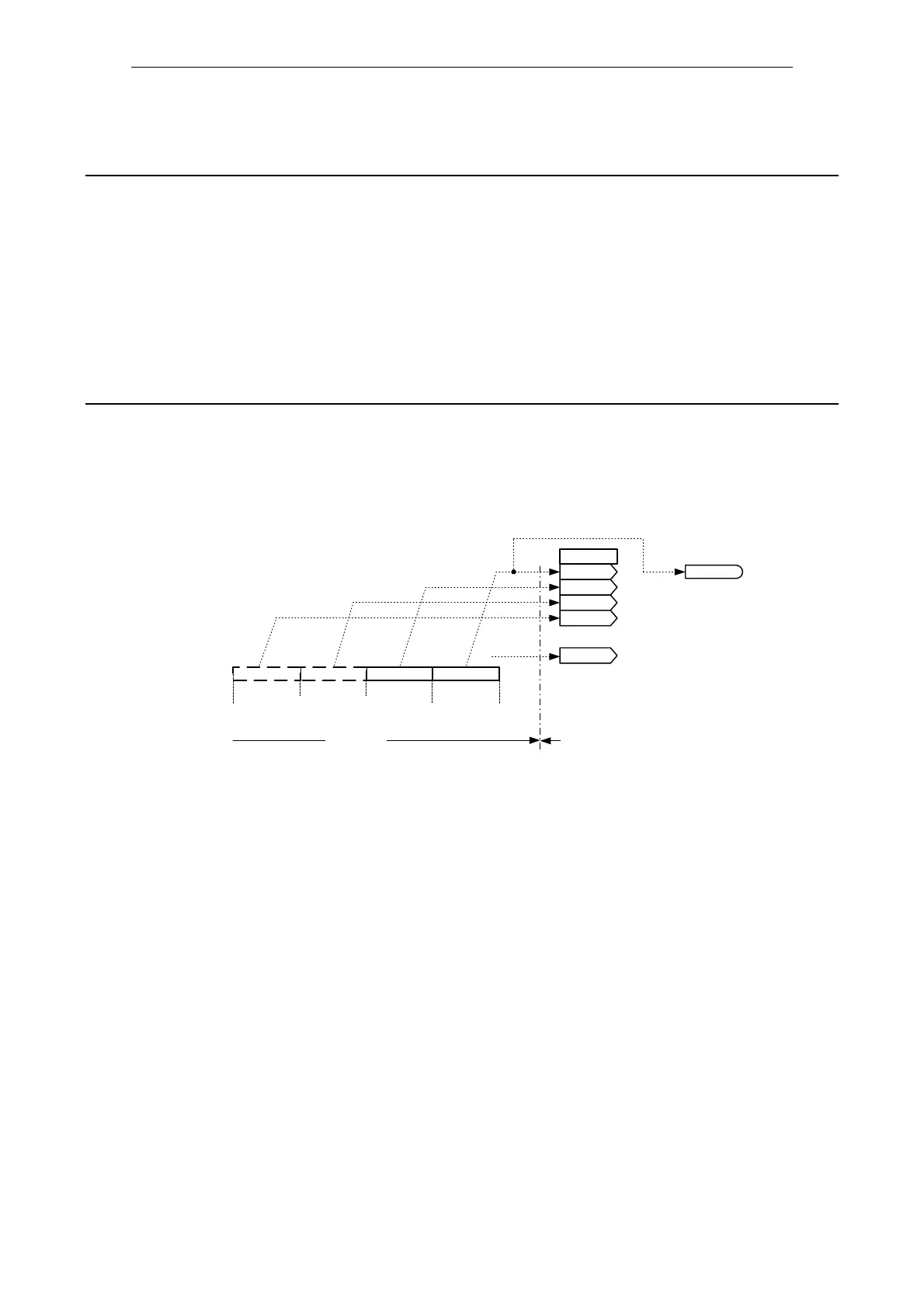

PZD mapping to parameter r2050
Process data
Control word
Main setpoint
...
[7]
depends on setting in P0922
...
