Siemens CU240S DP-F Parameter Manual

Symbols in funktion diagrams
Function diagrams
2-319
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007

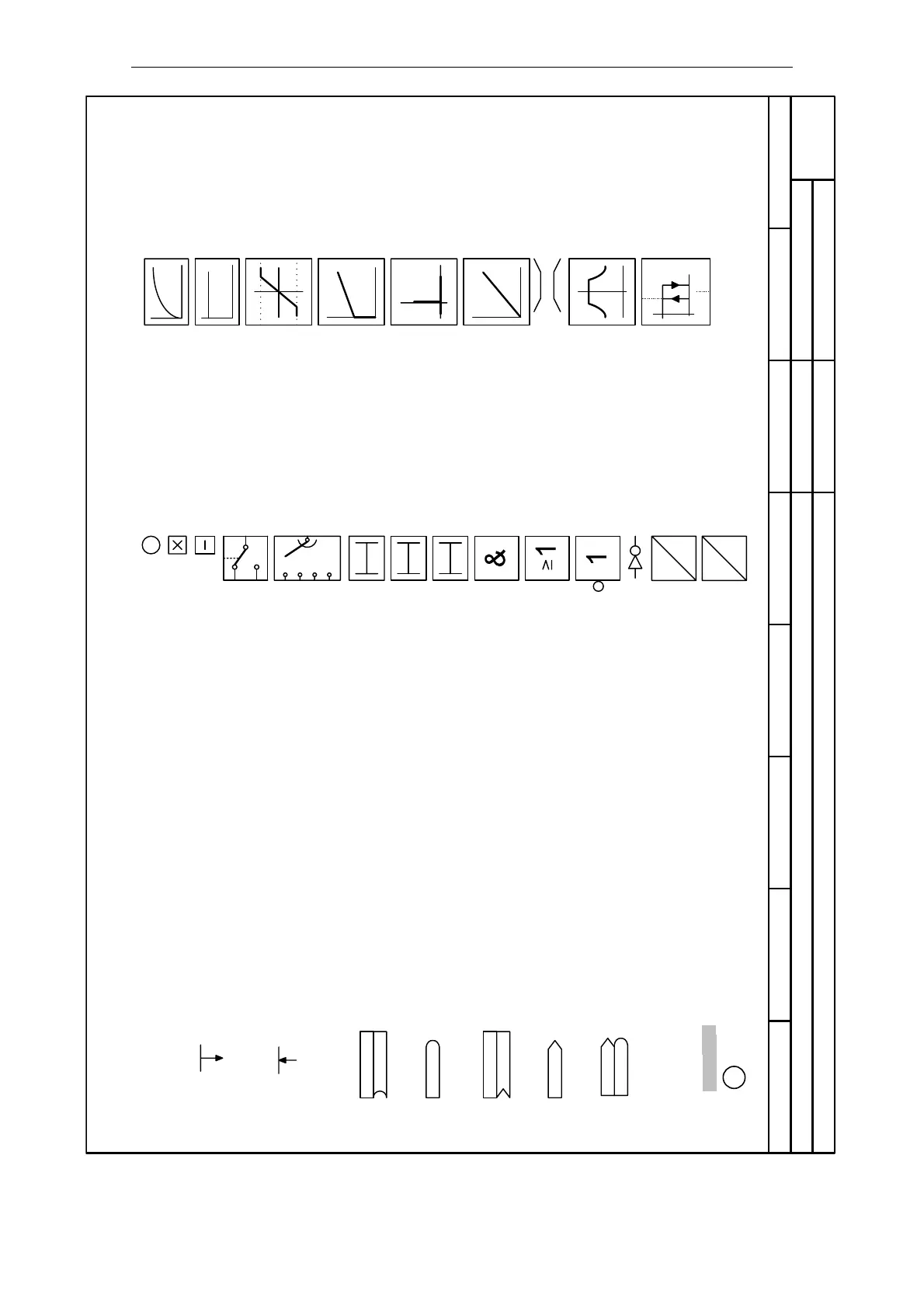

Fig. 2-1 0010 – Symbols in funktion diagrams
-10-
Function diagram
87654321
0010_Symbols.vsd
SINAMICS G120
02.04.2007 V3.0
Symbols in function diagrams
ParName [Dim]
PNumber.C/D [3]
(Default)
ParName [Dim]
PNum.C/D
ParName
(Default)
PNum.C/D [3]
PNum [3]
ParName [Hz]
ParName
PNum PNum
ParName
Min ... Max [Dim]
PNumber.C/D [3] (Default)
ParName
PNum
Kp Tn
x
y
T0
0T
T1 T2
11
10 01 00
0
1
{
1 0
A
D
D
A
x y
Parameter text Minimum ... Maximum value [Unit] Parameter text [Unit] Parameter number.Command/Drive data set [Number indexes] Parameter number.Command/Drive data set [Number indexes] (Default) Parameter text [Unit] Parameter number.Command/Drive data set (Default) Parameter text Parameter number Parameter text Parameter number.Command/Drive data set [Number indexes] (Default) Parameter text [Unit] Parameter number [Number indexes] Parameter text Parameter number
Setting parametersSetting parameters
Monitoring parameters BICO parameters
Binector input (Setting parameter) Binector output (Monitoring parameter) Connector input (Setting parameter) Connector output (Monitoring parameter) Connector/Binector output (Monitoring parameter)
Explanation of symbols used in the function diagrams
Summation Multiplication Division Switch Selection switch (1 out of 4) ON delay OFF delay ON and OFF delay AND gate OR gate A/D converter NOT gate NOT gate D/A converter
Filter element Gain element Integrator PI controller Differentiator Limitation Limitation Characteristic Hysteresis
1
Sheet
2300
Details refer to sheet 2300
Reference signal between function diagrams
