Mounting

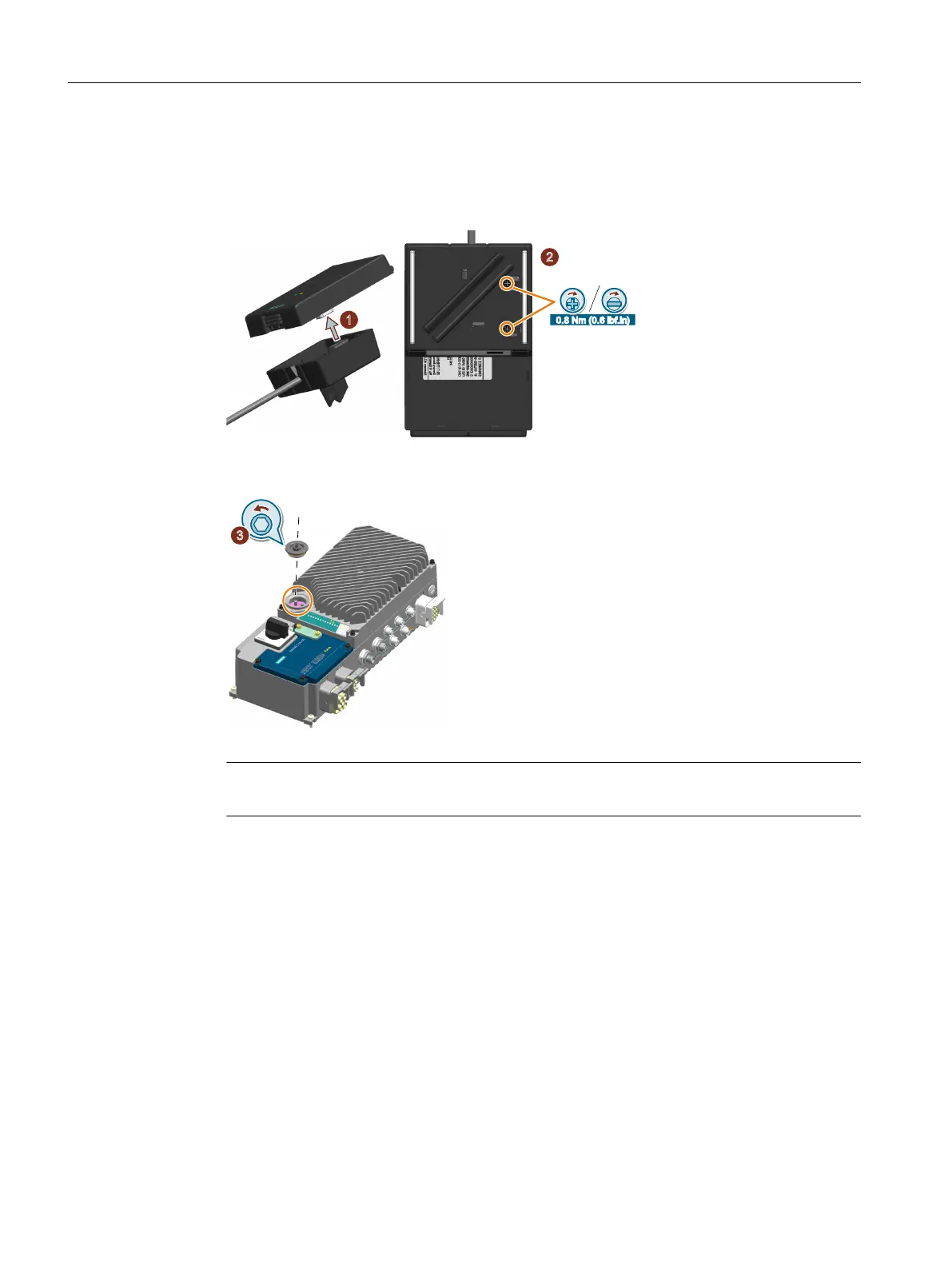

1. Mount the SAM interface kit to the SINAMICS G120 Smart Access and x the two tightening
screws to the prescribed torque (0.8 Nm, 0.6 lbf.in) by using a at-bit screwdriver or a cross-
tip screwdriver.
2. Remove the commissioning cover (③) from the G115D converter by using an S12 hex nut
driver.
Note
Reattach the commissioning cover with a tightening torque of 2.5 Nm (22.1 lbf.in).
3. Choose one of the following three methods according to the applicable converter mounting
position to connect the G120 Smart Access tted with the SAM interface kit to the converter:
Mounting
4.2Mounting the optional components
SINAMICS G115D Wall Mounted distributed drive
46 Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA
