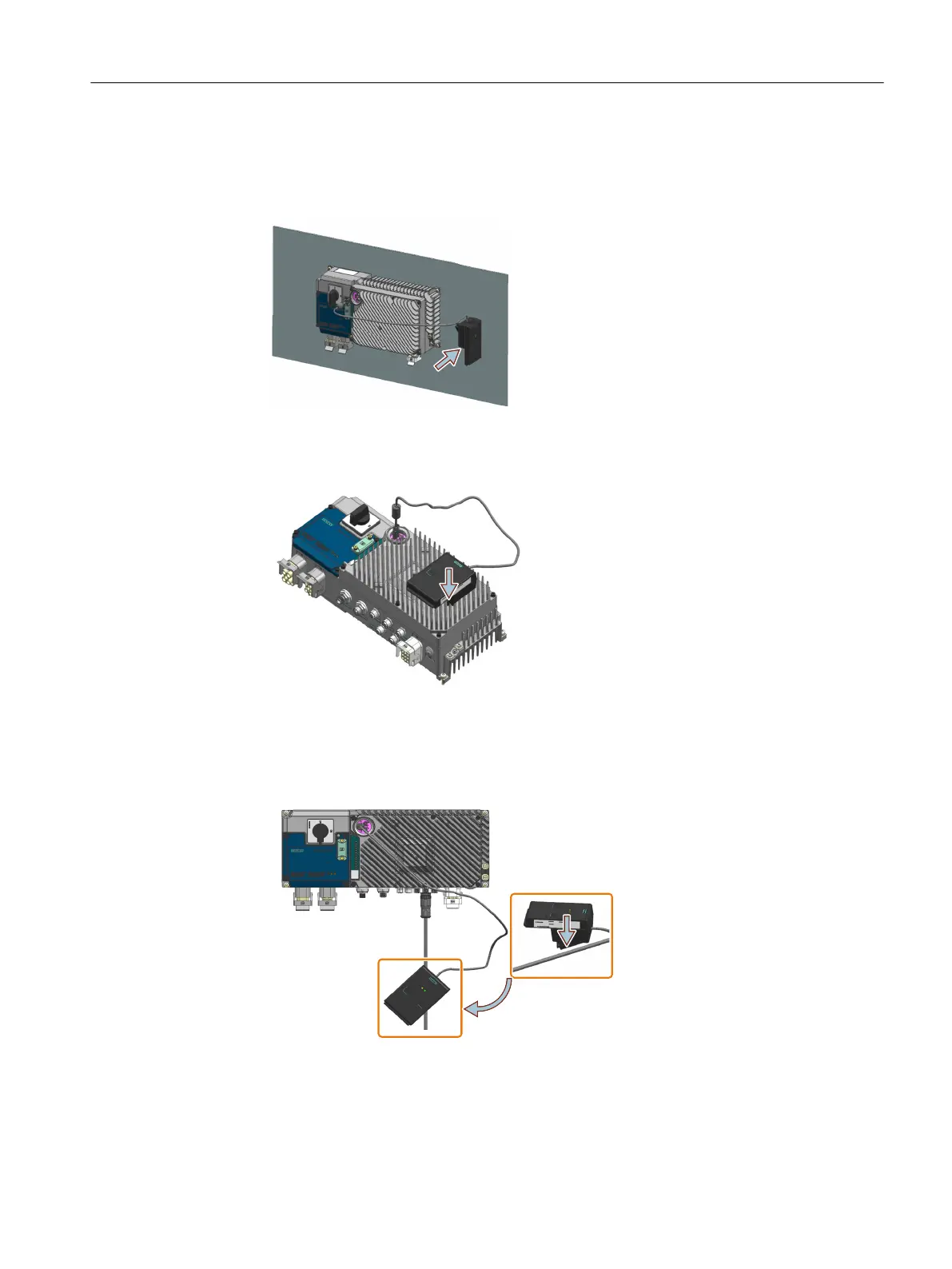

– Method 1 (applicable to all permissible mounting positions)
Attach the G120 Smart Access to a metallic plate via one magnetic side of the SAM
interface kit and then connect the SAM interface kit cable to the USB interface on the
converter.
– Method 2 (applicable only to the mounting position with the heatsink facing upwards)
Snap the rubber support of the SAM interface kit onto the converter heatsink and then
connect the SAM interface kit cable to the USB interface on the converter.
– Method 3 (applicable only to the mounting position with the cable outlets facing
downwards)
Snap the rubber support of the SAM interface kit onto the PROFINET cable or the I/O cable
connected to the converter and then connect the SAM interface kit cable to the USB
interface on the converter.
Further information
For more information about the SINAMICS G120 Smart Access and the SAM interface kit, see
SINAMICS G120 Smart Access Operating Instructions.
Mounting
4.2Mounting the optional components
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 47
