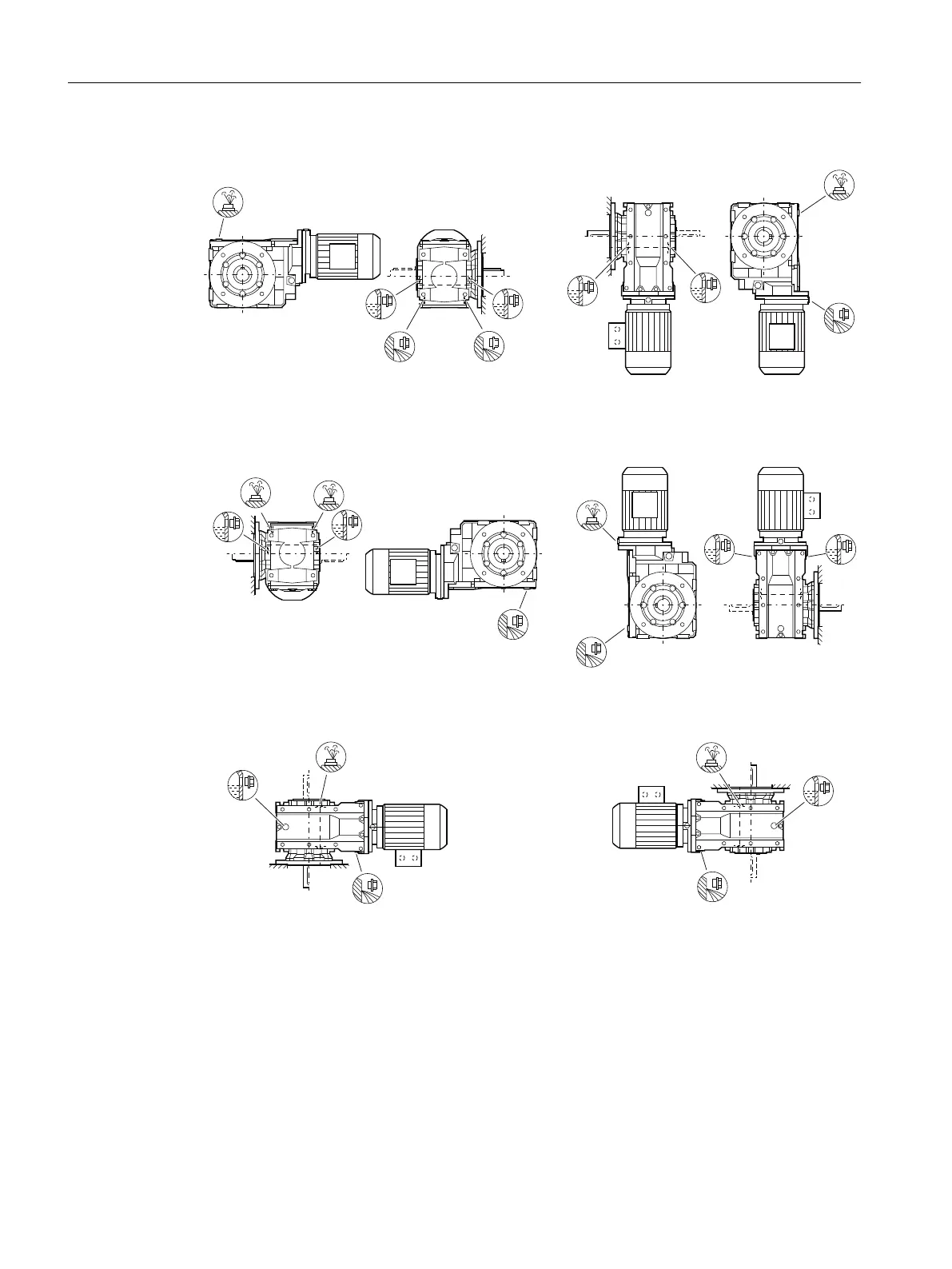

Figure12-54 Mounting positions for bevel gearbox B.F 󹪞ange-mounted design and B.Z with housing
󹪞ange, frame sizes39-49
Additional information on the SIMOGEAR geared motor
12.3Speci󹪝c data gearbox
