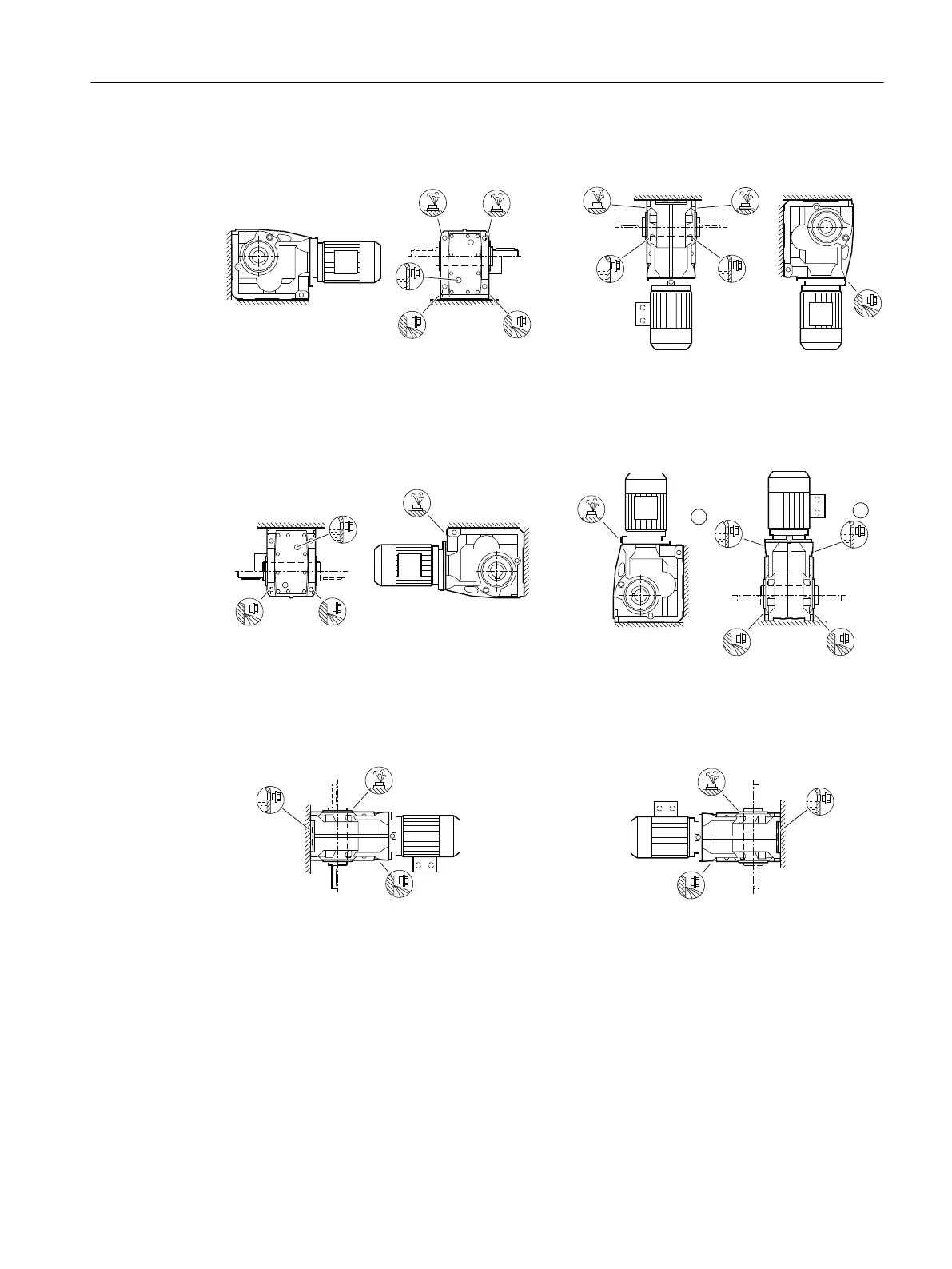

Figure12-57 Mounting positions for bevel gearbox K. foot-mounted design, frame sizes39-109
Additional information on the SIMOGEAR geared motor
12.3Speci󹪝c data gearbox
