The Electronic Module is available in PROFINET variant, AS-i variant, and I/O Control (without
󹪝eldbus communication) variant. The Wiring Module is available in glanded variant and
connector variant.
Depending on the variant ordered, the converter is equipped with plug-in sockets and/or
blanking caps (for wiring with cable glands).
For the connector variant, the converter is all wired up internally when delivered and all that
is required is the external wiring of the system. For the glanded variant, make sure you wire
the terminals and route the cables inside the Wiring Module and 󹪝x with the cable glands.
(%8BMM.PVOUFE
$POOFDUPSWBSJBOU(MBOEFEWBSJBOU
(MBOEFEWBSJBOUXJUI
2DPOOFDUPSGPS9
(MBOEFEWBSJBOUXJUI
HMBOEFE
UFSNJOBMTGPS9
(MBOEFEWBSJBOUXJUI.
DPOOFDUPSTGPS99
(MBOEFEWBSJBOUXJUIHMBOEFE
UFSNJOBMTGPS99
Note that the converters of glanded variant provide no cable glands but blanking caps at
delivery for all glanded interfaces.
Wall-mounted converter

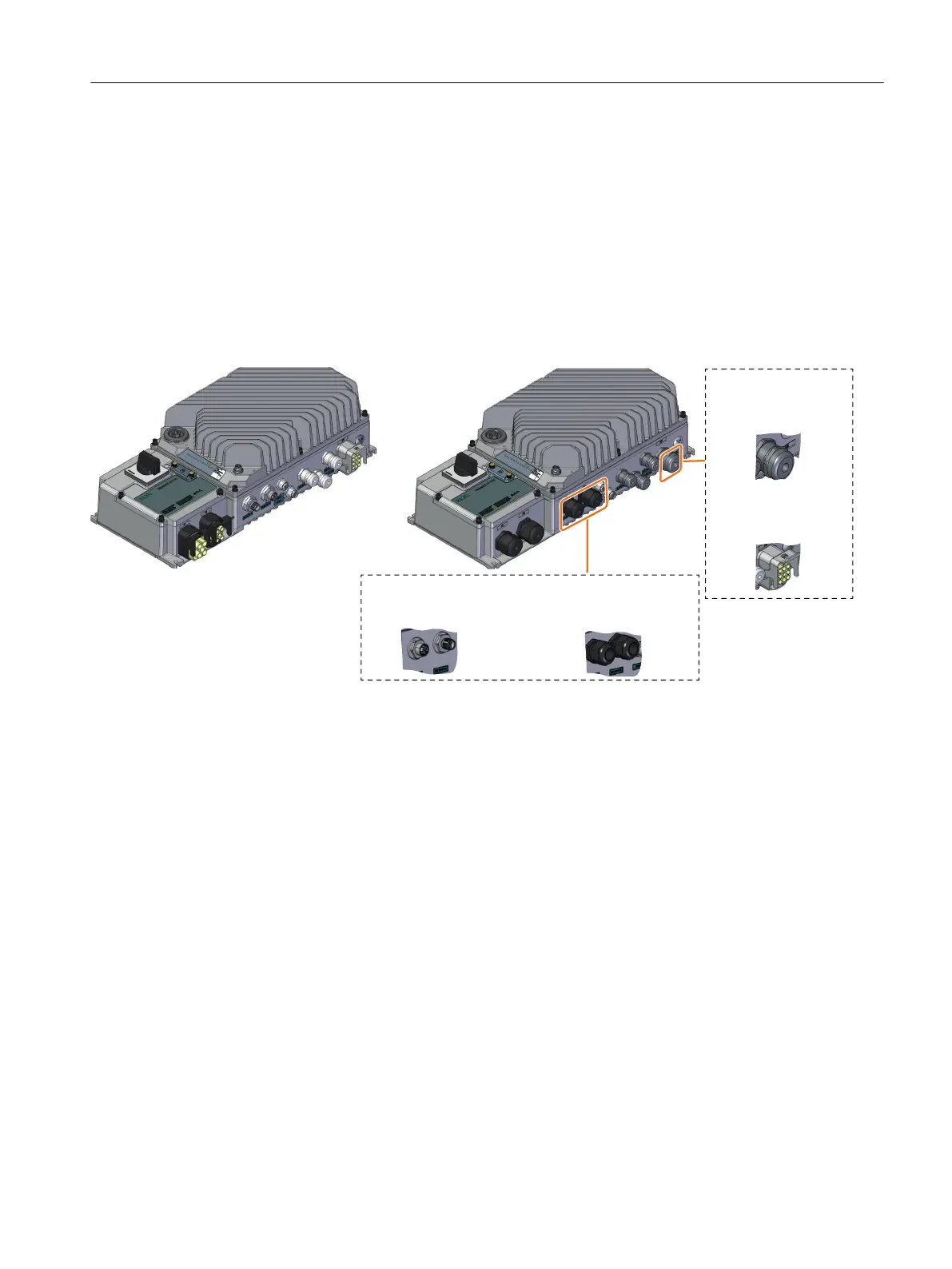

The 󹪝gure below shows an example of PROFINET variant of the wall-mounted converter with
plug-in sockets:
Wiring
5.7Overview of the converter interfaces
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 61
