C
ONFIGURING
THE
S
WITCH
3-104
Web – Specify the action (i.e., Permit or Deny). Specify the source and/or
destination addresses. Select the address type (Any, Host, or MAC). If you
select “Host,” enter a specific address (e.g., 11-22-33-44-55-66). If you
select “MAC,” enter a base address and a hexadecimal bitmask for an
address range. Set any other required criteria, such as VID, Ethernet type,
or packet format. Then click Add.

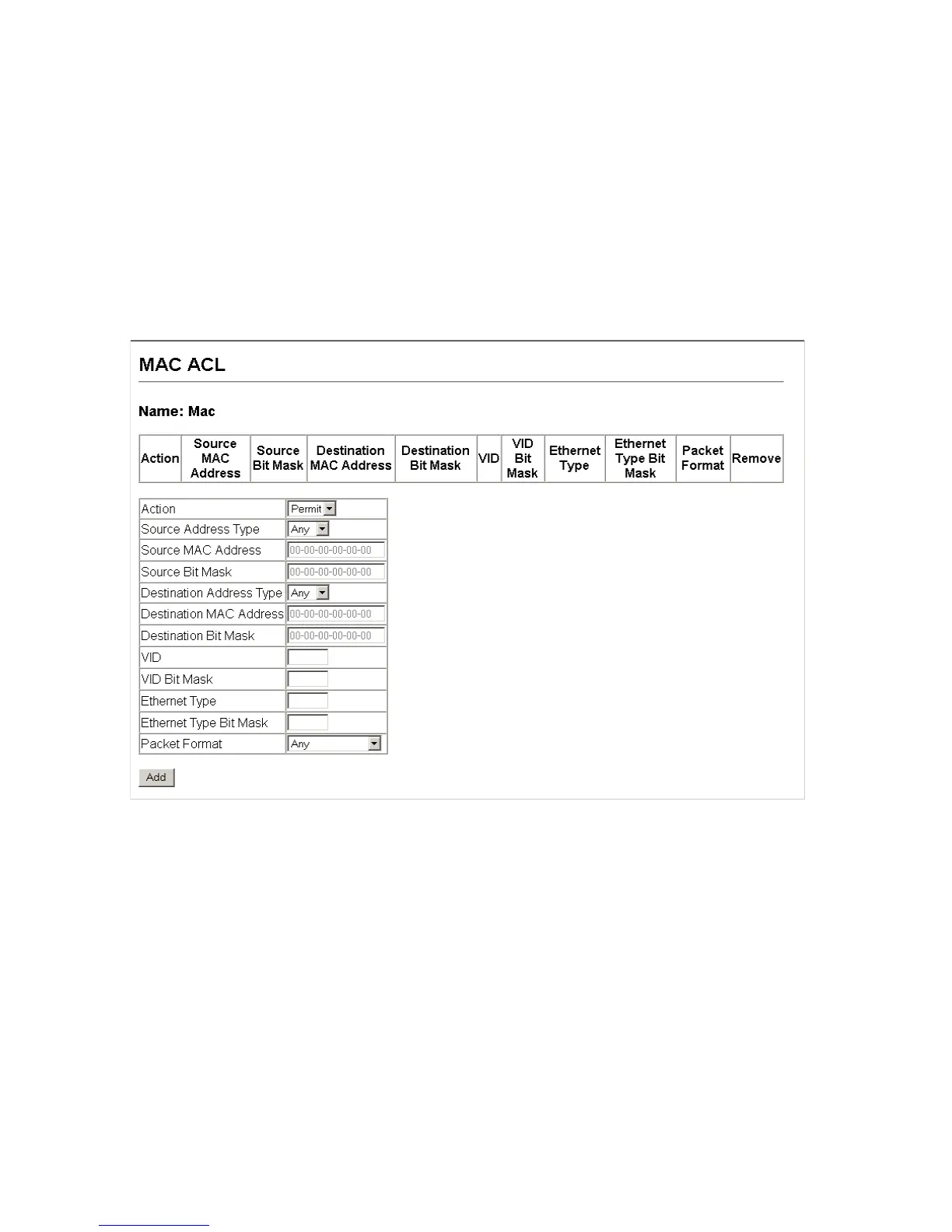

Figure 3-45. Configuring MAC ACLs
Binding a Port to an Access Control List
After configuring the Access Control Lists (ACL), you can bind the ports
that need to filter traffic to the appropriate ACLs. You can assign one IP
access list to any port.
Command Usage
• Each ACL can have up to 100 rules.
