VLAN C
ONFIGURATION
3-203
Protocol VLANs
You can configure VLAN behavior to support multiple protocols to allow
traffic to pass through different VLANS. When a packet is received at a
port, its VLAN membership is determined by the protocol type of the
packet.
Protocol VLAN Group Configuration
Command Attributes
• Protocol Group ID – Protocol Group ID assigned to the Protocol
VLAN Group. (Range: 1-2147483647)
• Frame Type – Choose either Ethernet, RFC 1042, or LLC Other as
the frame type used by this protocol.
• Protocol Type – The only option for the LLC Other frame type is
IPX Raw. The options for all other frames types include IP, ARP, or
RARP.
Web – Click VLAN, Protocol VLAN, Configuration.

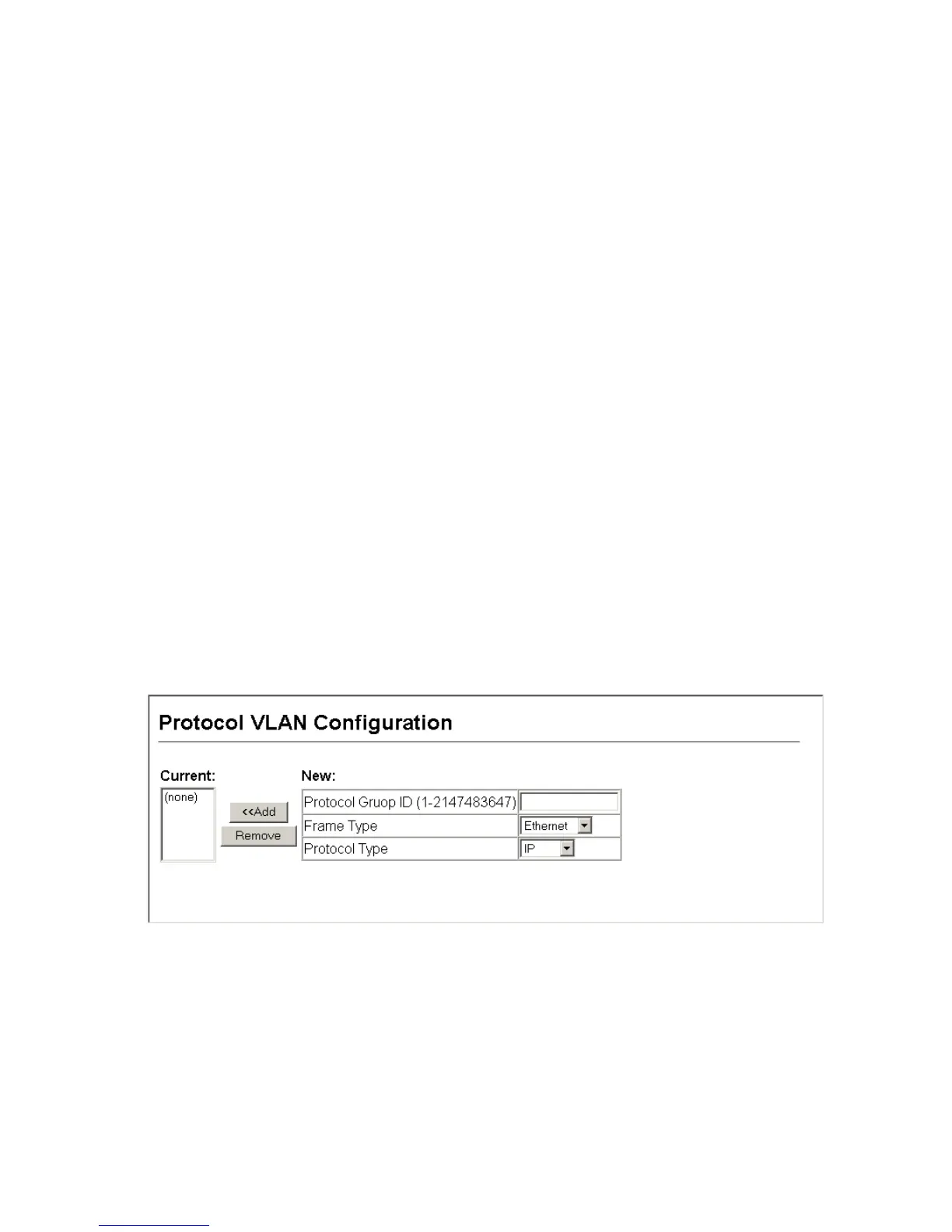

Figure 3-86. Protocol VLAN Configuration
Configuring Protocol VLAN Interfaces
Use the Protocol VLAN Port Configuration menu to set the protocol
VLAN settings per port.
