A
CCESS
C
ONTROL
L
ISTS
3-105
• This switch supports ACLs for ingress filtering only. However, you
only bind one IP ACL to any port for ingress filtering. In other words,
only one ACL can be bound to an interface - Ingress IP ACL.
Command Attributes
• Port – Fixed port or SFP module. (Range: 1-52)
• IP – Specifies the IP ACL to bind to a port.
• MAC – Specifies the MAC ACL to bind to a port.
• IN – ACL for ingress packets.
Web – Click Security, ACL, Port Binding. Click Edit to open the
configuration page for the ACL type. Mark the Enable field for the port
you want to bind to an ACL for ingress or egress traffic, select the required
ACL from the drop-down list, then click Apply.

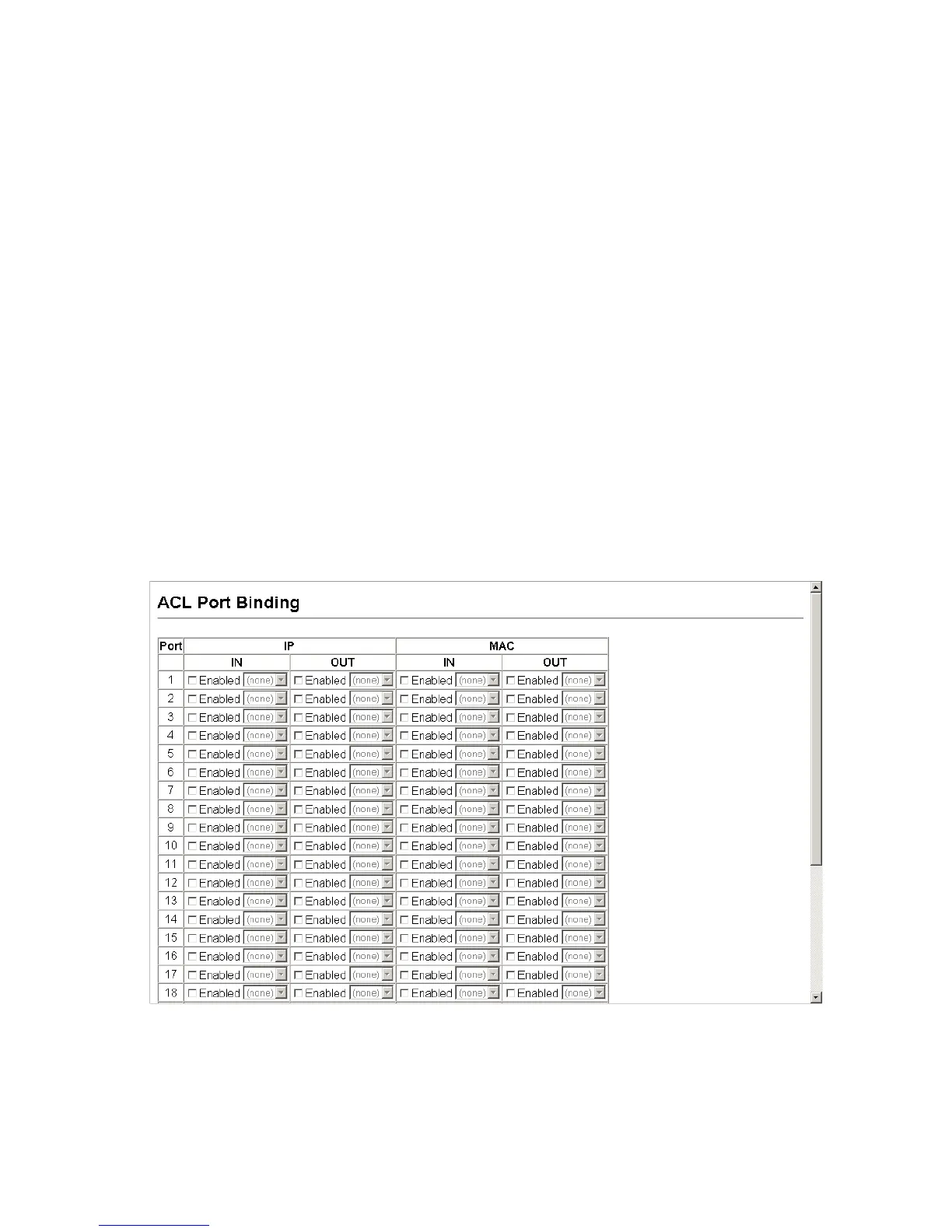

Figure 3-46. Configuring ACL Port Binding
