VLAN C
ONFIGURATION
3-199
- Host – The port is a community port and can only communicate
with other ports in its own community VLAN, and with the
designated promiscuous port(s). Or the port is an isolated port that
can only communicate with the lone promiscuous port within its
own isolated VLAN.
- Promiscuous – A promiscuous port can communicate with all the
interfaces within a private VLAN.
• Primary VLAN – Conveys traffic between promiscuous ports, and
between promiscuous ports and community ports within the
associated secondary VLANs.
• Community VLAN – A community VLAN conveys traffic between
community ports, and from community ports to their designated
promiscuous ports.
• Trunk – The trunk identifier. (Port Information only)
Web – Click VLAN, Private VLAN, Port Information or Trunk
Information.

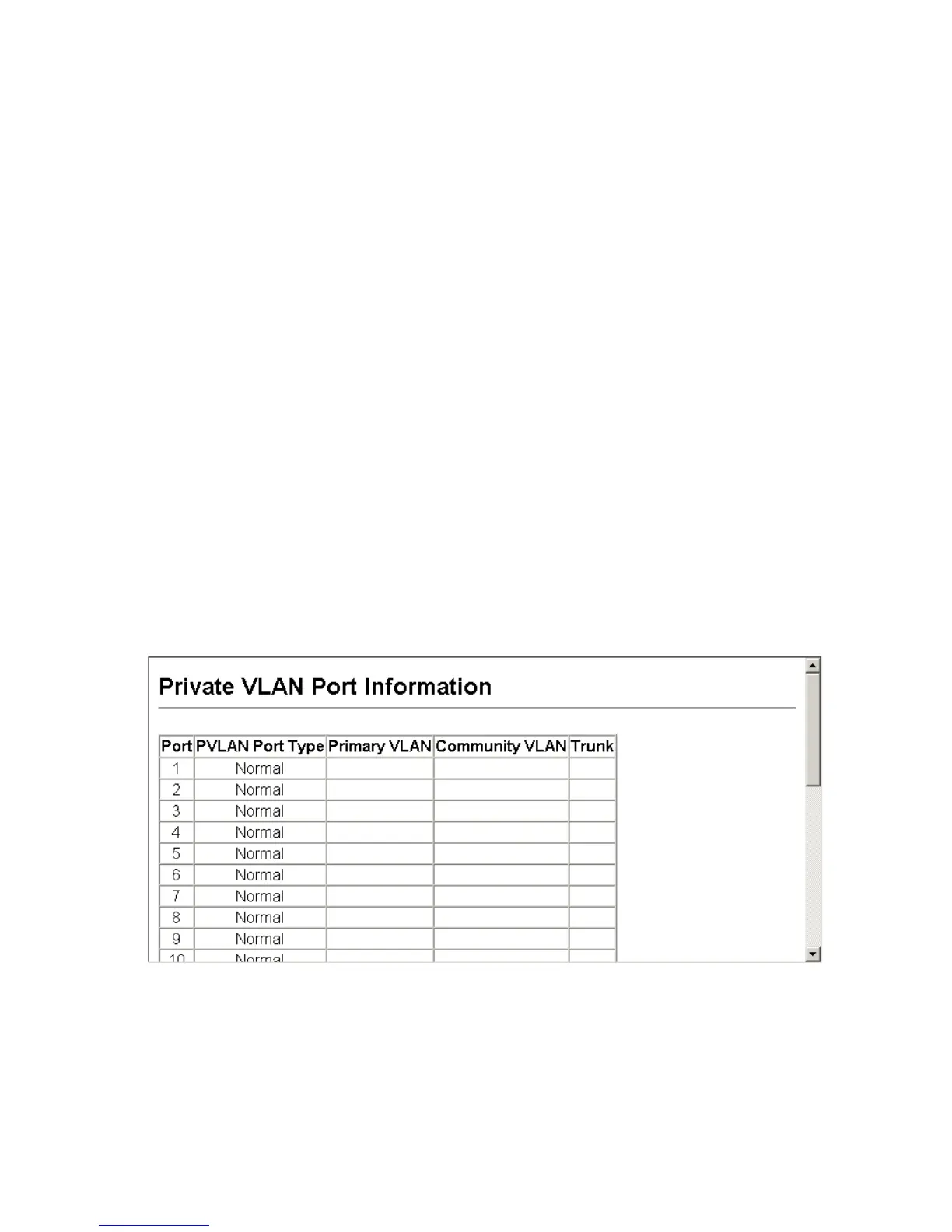

Figure 3-84. Private VLAN Port Information
