VLAN C
ONFIGURATION
3-197
Web – Click VLAN, Private VLAN, Configuration. Enter the VLAN ID
number, select Primary, Isolated or Community type, then click Add. To
remove a private VLAN from the switch, highlight an entry in the Current
list box and then click Remove. Note that all member ports must be
removed from the VLAN before it can be deleted.

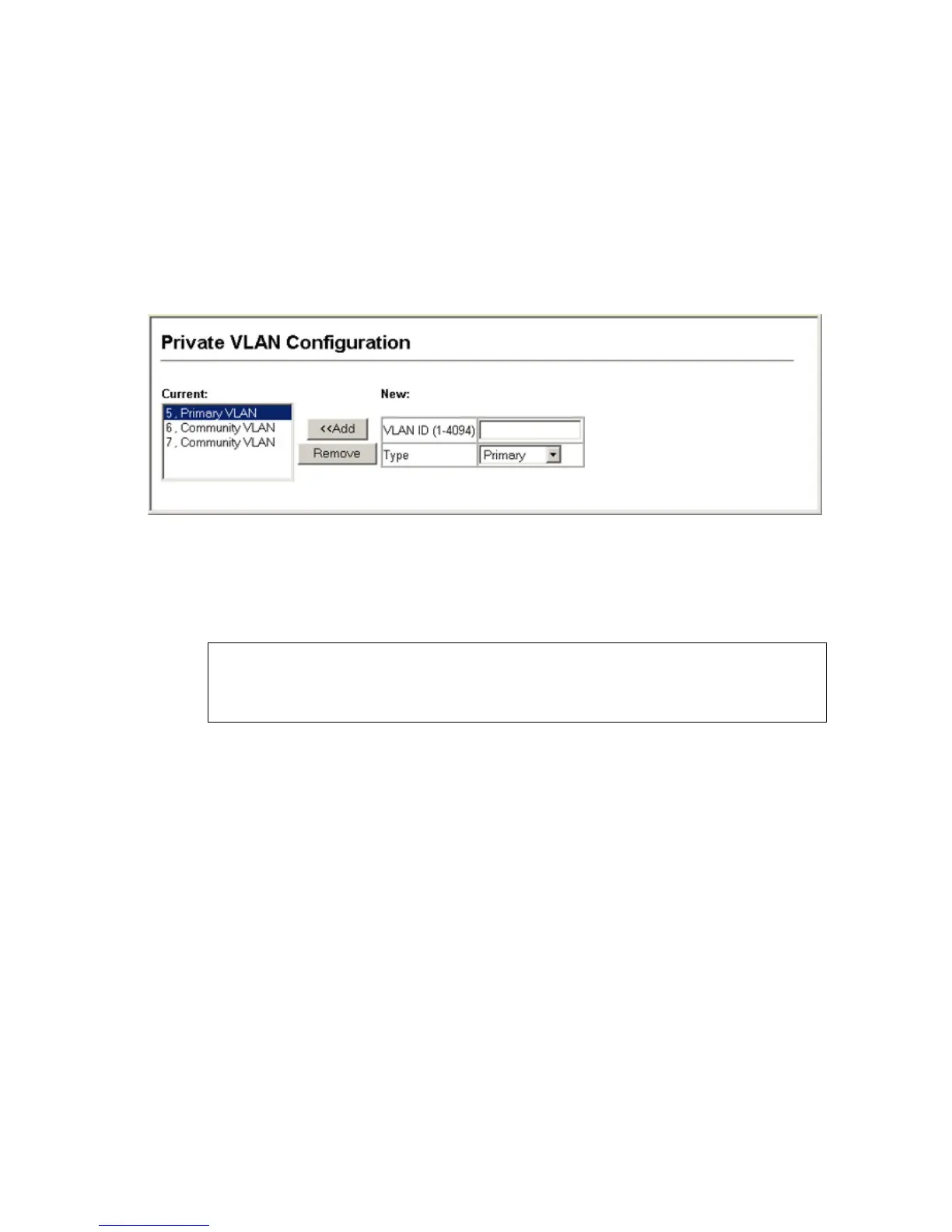

Figure 3-82. Private VLAN Configuration
CLI – This example configures VLAN 5 as a primary VLAN, and VLAN
6 as a community VLAN.
Associating VLANs
Each community VLAN must be associated with a primary VLAN.
Command Attributes
• Primary VLAN ID – ID of primary VLAN (1-4094).
• Association – Community VLANs associated with the selected
primary VLAN.
• Non-Association – Community VLANs not associated with the
selected VLAN.
Console(config)#vlan database 4-223
Console(config-vlan)#private-vlan 5 primary 4-236
Console(config-vlan)#private-vlan 6 community
Console(config-vlan)#
