A
DDRESS
T
ABLE
S
ETTINGS
3-147
• MAC Address – Physical address associated with this interface.
• VLAN – ID of configured VLAN (1-4094).
• Address Table Sort Key – You can sort the information displayed
based on MAC address, VLAN or interface (port or trunk).
• Dynamic Address Counts – The number of addresses dynamically
learned.
• Current Dynamic Address Table – Lists all the dynamic addresses.
Web – Click Address Table, Dynamic Addresses. Specify the search type
(i.e., mark the Interface, MAC Address, or VLAN checkbox), select the
method of sorting the displayed addresses, and then click Query.

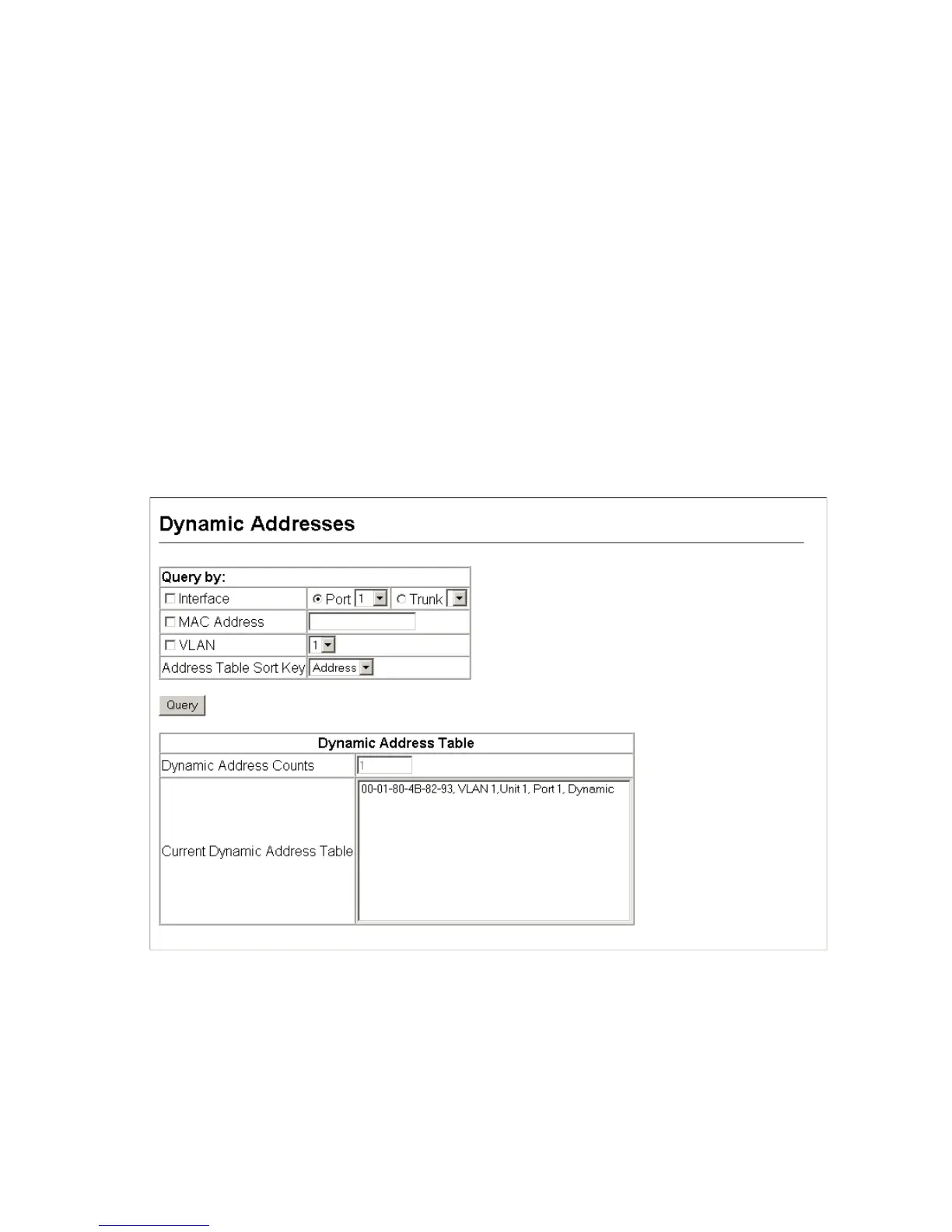

Figure 3-65. Configuring a Dynamic Address Table
