Setup Menu
Pocket-3D Reference Guide
2-58

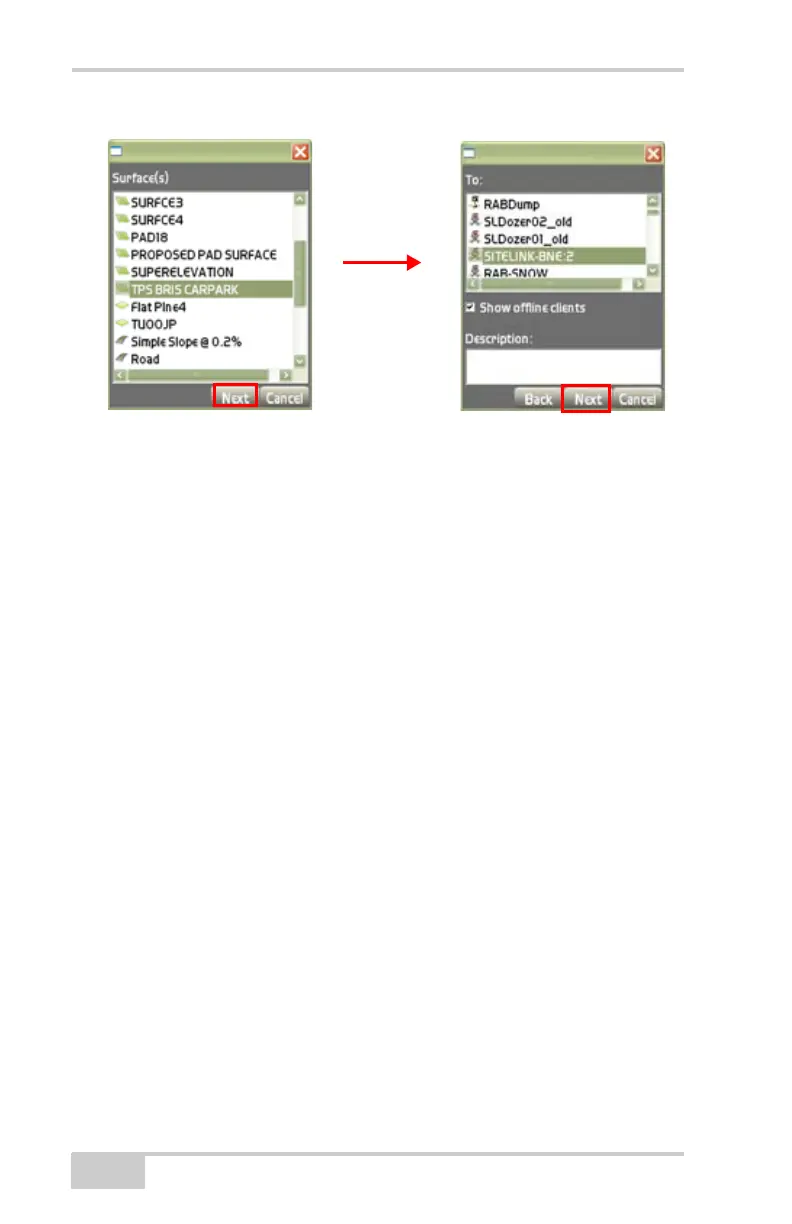

Figure 2-78. Select a Surface File to Import
4. On the import surface files dialog box (Figure 2-79 on 
page 2-59), do the following:
• Import into recipients current active project – enable to
import surface files into the current project.
• Overwrite surface w.same name – enable to keep name of
previous file.
• Replace all lines in layer w.same name – enable to replace all
lines in layer with the same name.
• Back – press to go back to previous screen.
• Next – press to go to the Send dialog box (Figure 2-79 on 
page 2-59).
• Cancel – press to quit and return to the Main Screen.
5. On the Send dialog box (Figure 2-79 on page 2-59), press Finish
to send the file and return to the Main Screen.
