Setup Menu
Pocket-3D Reference Guide
2-54
9. Press Next to display the Send dialog box (Figure 2-73).
10. On the Send dialog box (Figure 2-73), press Finish to save
changes and return to the Main Screen.

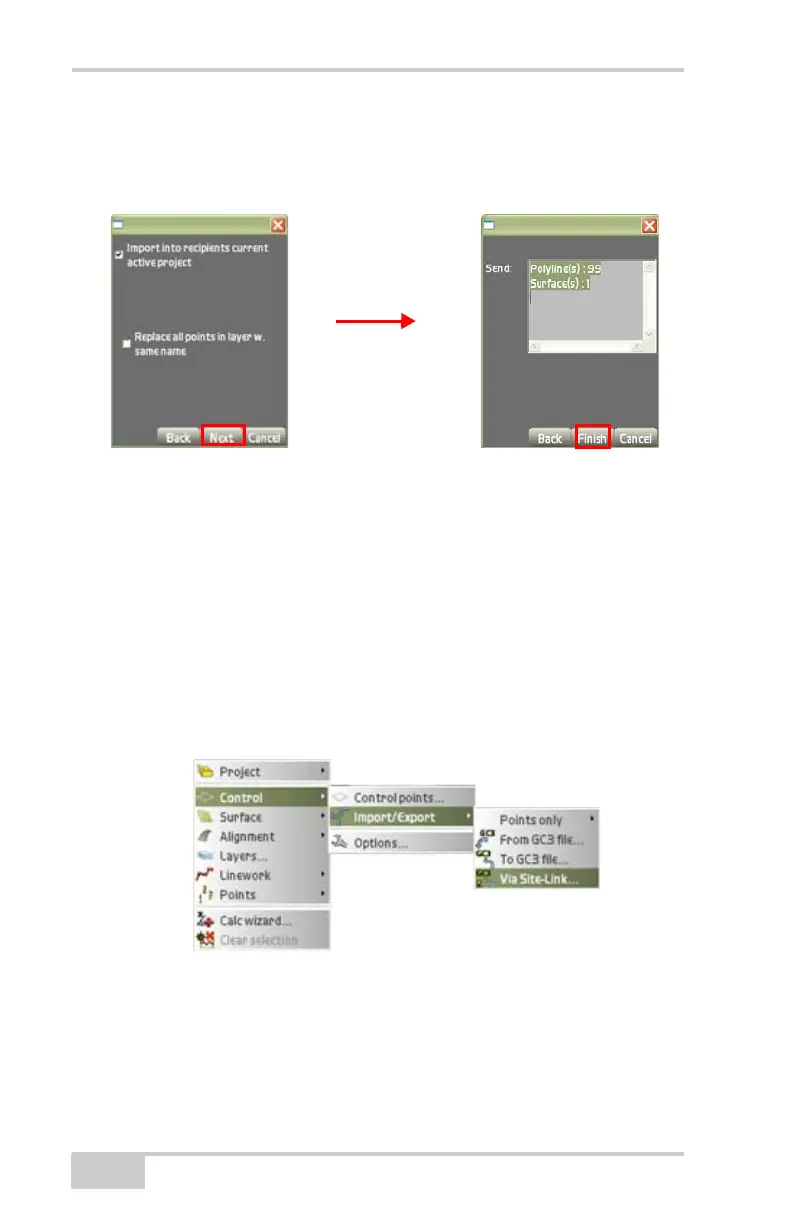

Figure 2-73. Importing/Exporting Control Data
Importing/Exporting Control
Points Via Site-Link
To add, edit, delete, or import/export a control point via Site-Link, do
the following:
1. Press DataControlImport/ExportVia Site-Link
(Figure 2-74).
Figure 2-74. Import/Export Control Points
2. On the Control data dialog box (Figure 2-75 on page 2-55),
check mark the box to import the entire localization, control
points, and mmGPS transmitter data into the project file.
