Pocket-3D Reference Guide
3-86

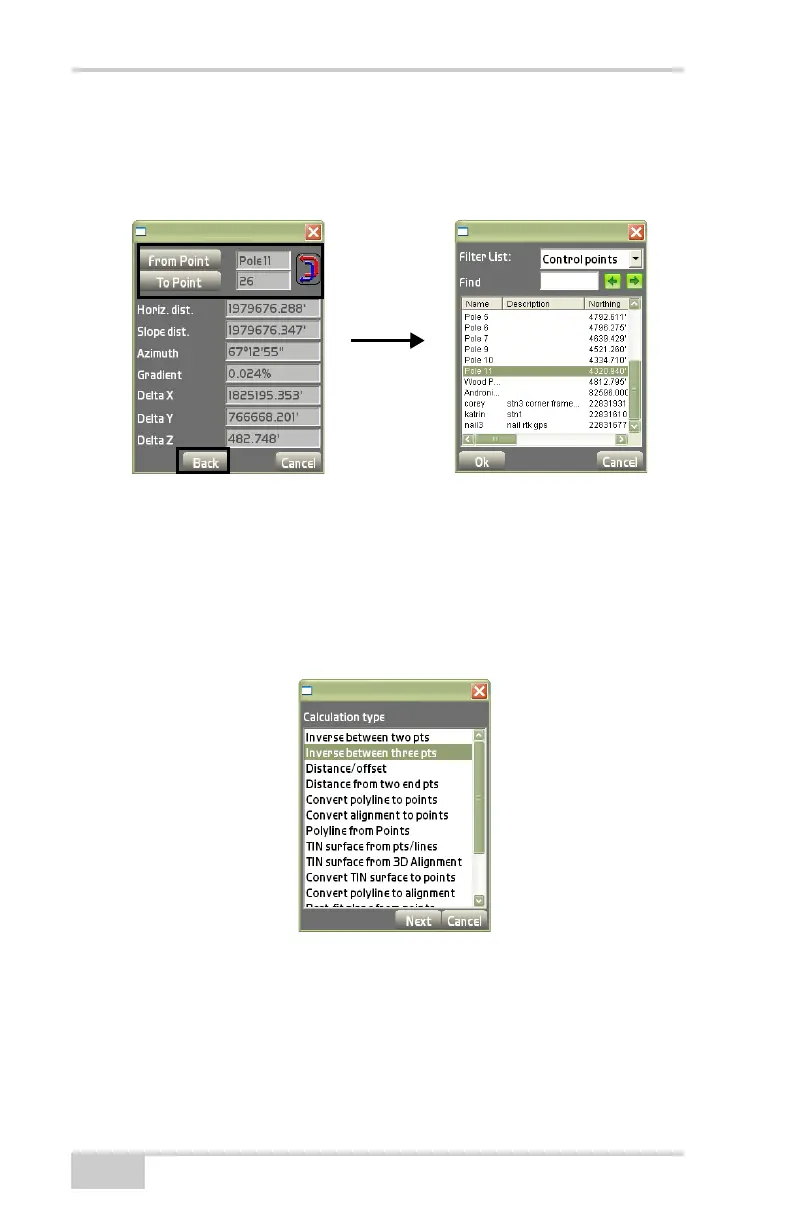

Figure 3-127. Inverse Between Two Points
Inverse Between Three Points
On the Calculation type dialog box (Figure 3-128), select Inverse
between three pts to calculate the inverse of the direction and dis-
tance between three points, then press Next (Figure 3-128).
Figure 3-128. Calculation Type – Distance Between Three Points
The results dialog box displays the distance between selected points
and another point and the following calculation for Point 1 or Point 2:
Horizontal Distance (Horiz. dist), Slope Distance (Slope dist.), and
Azimuth (
Figure 3-129 on page 3-87).
• From Point 1 – press to select the beginning point.
From/To Points
Selection Dialog
Box
Results Dialog
Box
To Next Page
