Topcon Pocket-3D - Convert Alignment to Points

Calculation Wizard
P/N 7010-0628
3-95

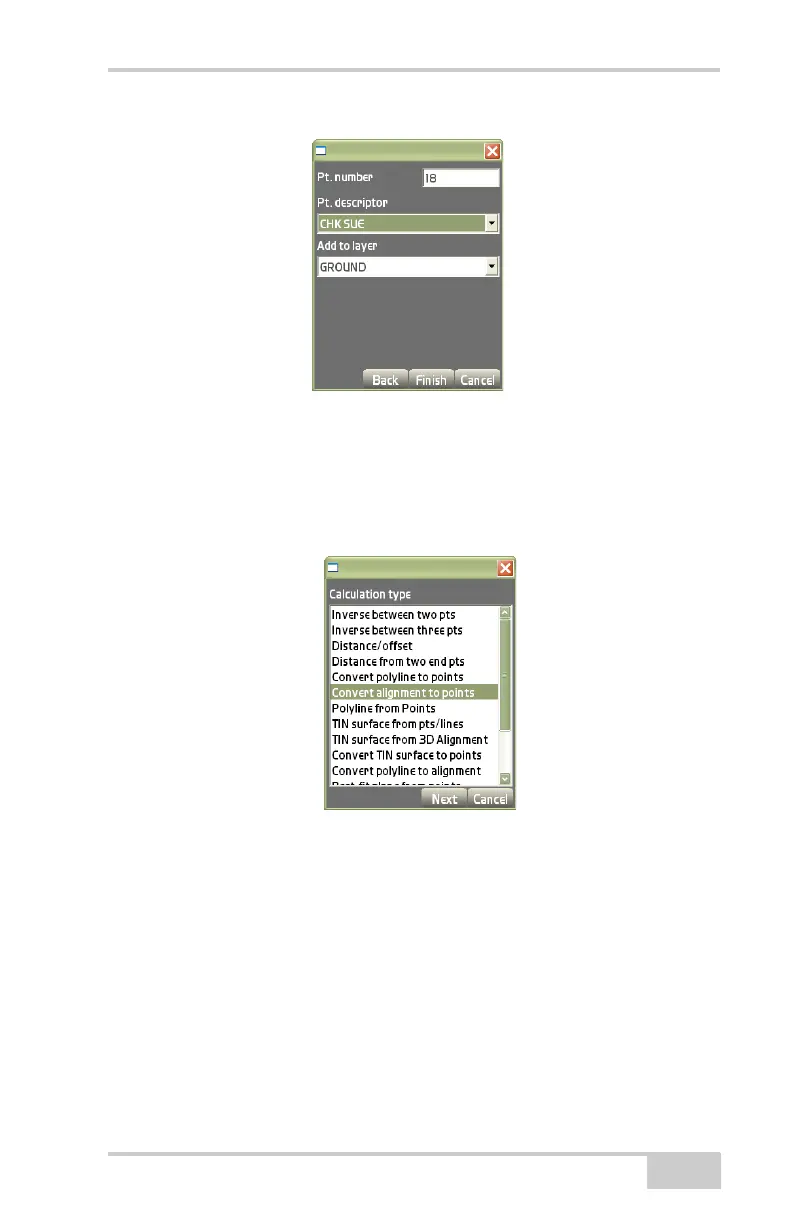

Figure 3-142. Point Properties
Convert Alignment to Points
On the Calculation type dialog box, select Convert alignment to
points, then press Next (
Figure 3-143).
Figure 3-143. Calculation TYpe – Convert Alignments to Points
This process creates coordinate points at all nodes and vertices of a
selected alignment. A points file must be open and an alignment
selected from the list of user-created RD3 files.
On the create points dialog box (Figure 3-144 on page 3-96), enter
the following parameters to create the points, then press Next.
• Alignment – select an alignment to be converted to points from
the drop-down list.
