Setup Menu
Pocket-3D Reference Guide
2-64

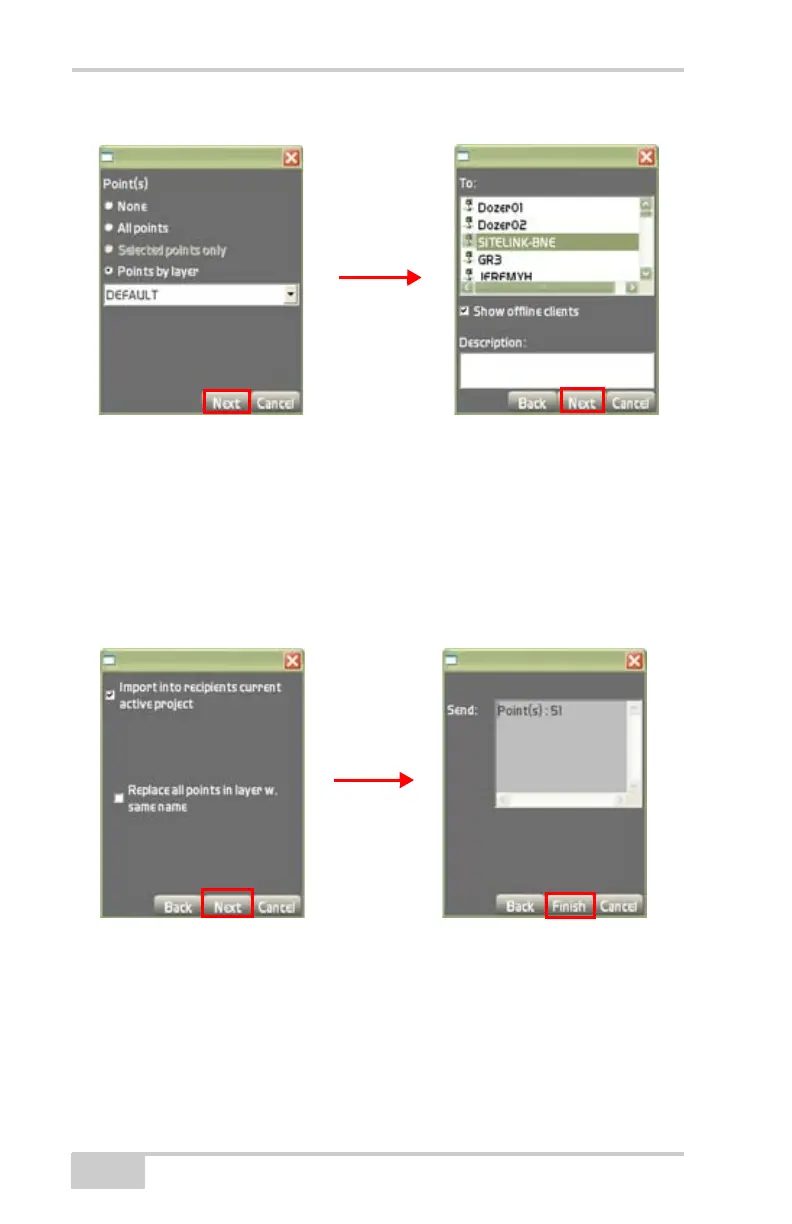

Figure 2-87. Select Points for Export-Import
5. On the points file dialog box (Figure 2-88), do the following
• Import into recipients current active project – check mark this
box to import surface files into your project.
• Replace all points in layer w.same name – check mark this
box to overwrite duplicate filenames.
• Press Next to display the Send dialog box (Figure 2-88).
Figure 2-88. Import Points Into Project
6. On the Send dialog box, press Finish to save and return to the
Main Screen (
Figure 2-88).
