Xerox WorkCentre 6605 Service Manual

Image Quality
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
3-8

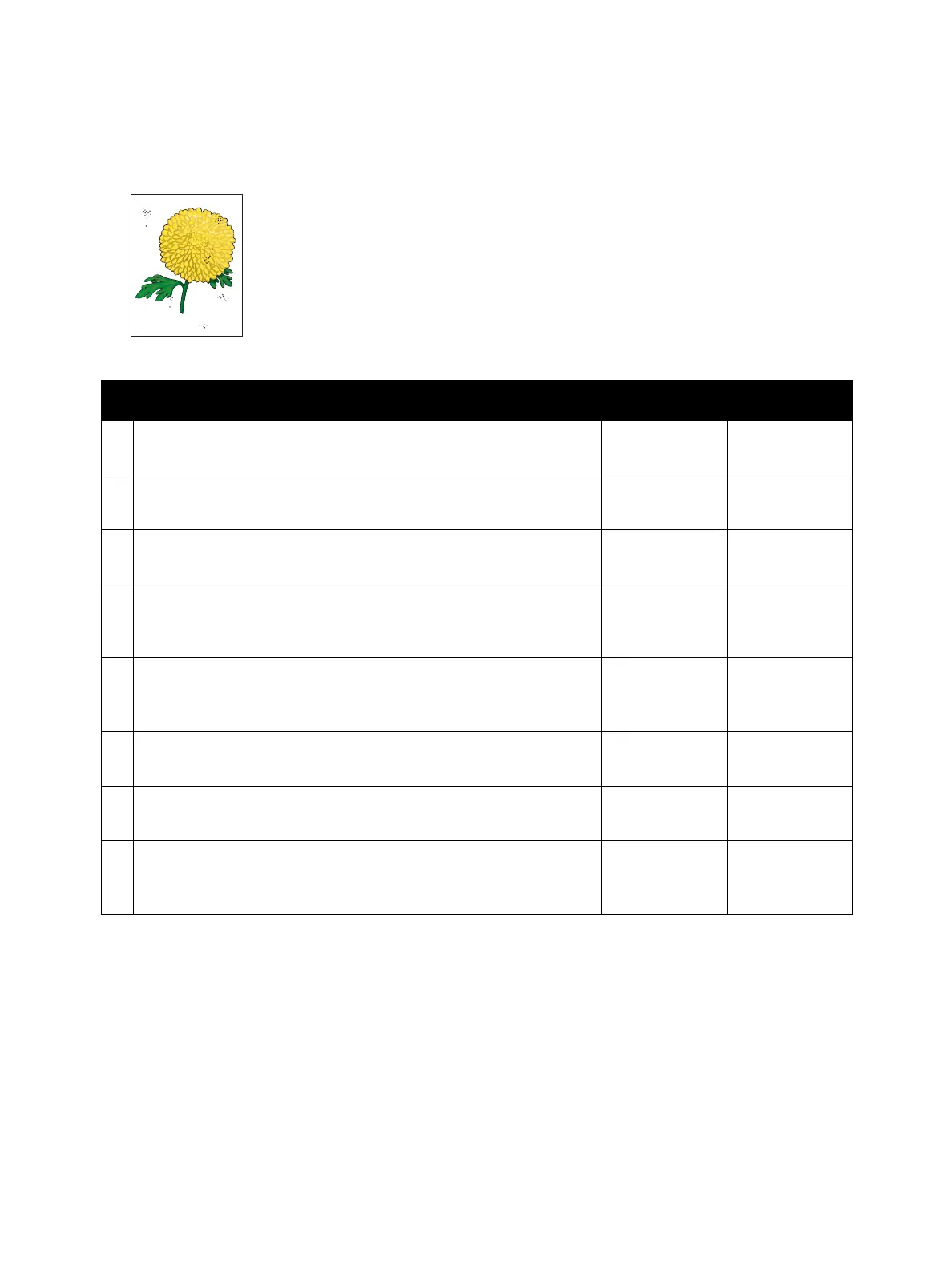

Random spots/Blurred images
Possible causative parts
• Toner Cartridge Y/M/C/K (PL5.1.8/PL5.1.9/PL5.1.10/PL5.1.11)
•Imaging Unit Y/M/C/K (PL8.1.2/PL8.1.3/PL8.1.4/PL8.1.5)
• Transfer Roller (PL14.1.99)
• Transfer Belt Assembly (PL6.1.1)
• Development HVPS Board (PL18.1.14)
• Transfer HVPS Board (PL18.1.28)
Action Yes No
1 Ensure that the toner cartridges are installed correctly.
Does this solve your problem?
The task is
complete.
Go to action 2.
2 Ensure that the Imaging Units are installed correctly.
Does this solve your problem?
The task is
complete.
Go to action 3.
3 Replace the Imaging Units.
Does this solve your problem?
The task is
complete.
Go to action 4.
4 Check the Transfer Roller.
Is Transfer Roller not contaminated, damaged, or worn, and does it
work correctly?
Go to action 5. Reinstall
Transfer Roller.
5 Check the Transfer Roller.
Is Transfer Roller not contaminated, damaged, or worn, and does it
work correctly?
Go to action 6. Replace
Transfer Roller.
6 Check the Transfer HVPS Board connector connection.
Is the Transfer HVPS Board connector connected correctly?
Go to action 7. Connect the
connector.
7 Check the Development HVPS Board connector connection status.
Is the Development HVPS Board connector connected correctly?
Go to action 8. Connect the
connector.
8 Check the intermediate transfer belt.
Is the Transfer Belt Assembly not contaminated, damaged, or worn,
and does it work correctly?
Contact Xerox
Te ch ni ca l
Support.
Replace the
Transfer Belt
Assembly.
Random Spots

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
