Xerox WorkCentre 6605 Service Manual

Image Quality
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
3-24

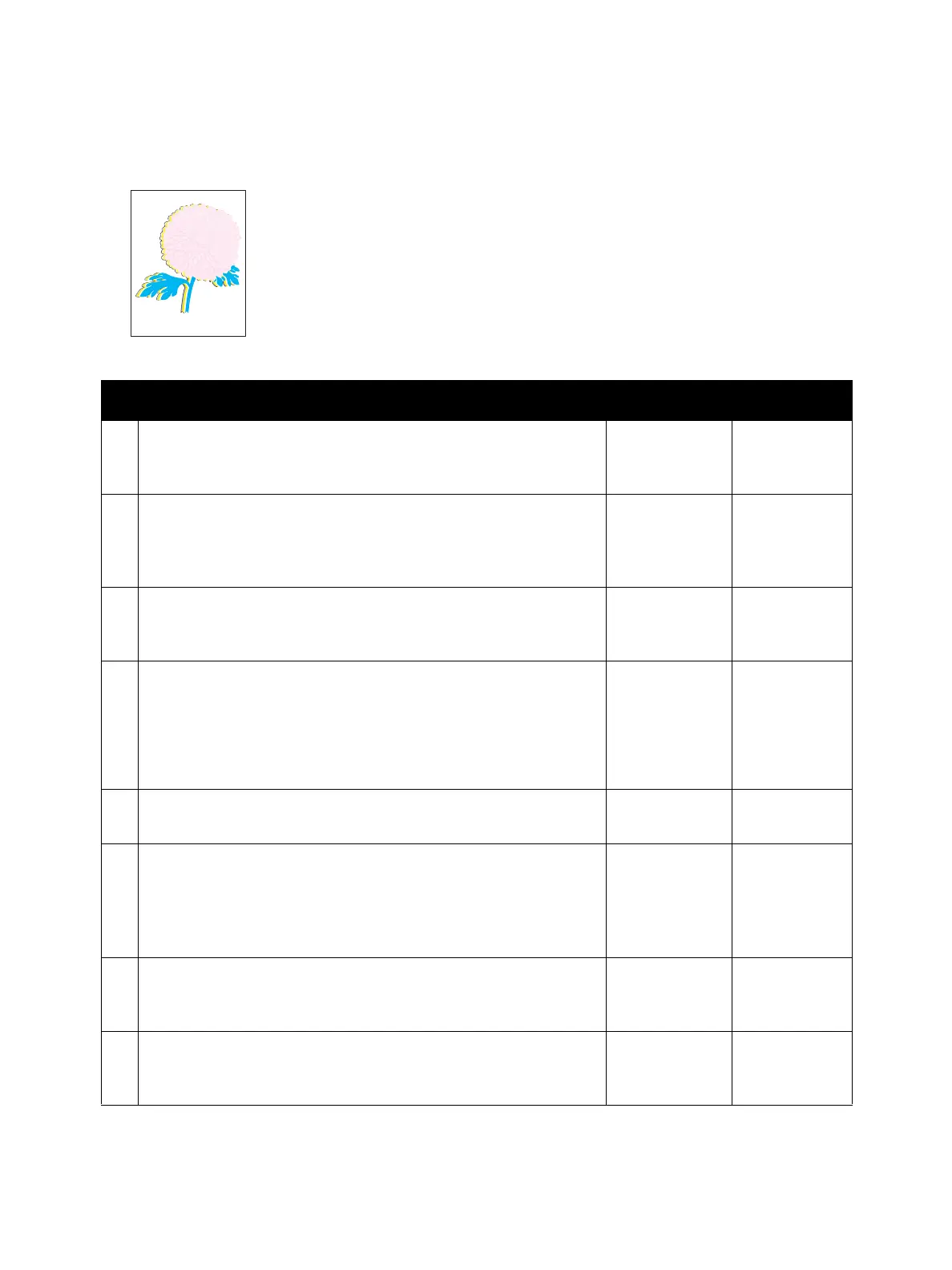

Color registration is out of alignment
Possible causative parts
•Imaging Unit Y/M/C/K (PL8.1.2/PL8.1.3/PL8.1.4/PL8.1.5)
• CTD Sensor Assembly (PL6.1.14)
• Transfer Belt Assembly (PL6.1.1)
• Laser Unit (PL2.1.1)
Action Yes No
1 Adjust the settings of the paper type on the printer driver to those
of the tray.
Does this solve your problem?
The task is
complete.
Go to action 2.
2 Perform the auto color registration adjustment described in
“Performing an Automatic Color Registration Adjustment” on
page 6-18.
Does this solve your problem?
The task is
complete.
Go to action 3.
3 Manually correct the color registration using “Performing a Manual
Color Registration Adjustment” on page 6-19.
Does this solve your problem?
The task is
complete.
Go to action 4.
4 Check the installation status of the drum unit.
Remove the Imaging Unit Y/M/C/K.
Is each imaging unit installed correctly, and are the contacts at
each end of the imaging units clean and free of deformation?
Go to action 5. Restore and
clean the
interface.
Reinstall the
Imaging Unit
Y/M/C/K.
5 Replace the Imaging Units.
Does this solve your problem?
The task is
complete.
Go to action 6.
6 Check dirt and foreign substances on the CTD Sensor surface.
Is the CTD Sensor Assembly sensor surface dirty, or are there any
foreign substances on the surface?
Clean the CTD
sensor surface
or remove the
foreign
substance.
a
a. Wipe with a cotton swab. (Do not use alcohol.)
Go to action 7.
7 Replace the Transfer Belt Assembly.
Does the problem persist even after the Transfer Belt Assembly is
replaced with a new one?
Go to action 8. The task is
complete.
8 Replace the Laser Unit.
Does the problem persist even after the Laser Unit is replaced with
a new one?
Contact Xerox
Te ch ni ca l
Support.
The task is
complete.
