8. Repeat the procedure for the holes in the other three slots.

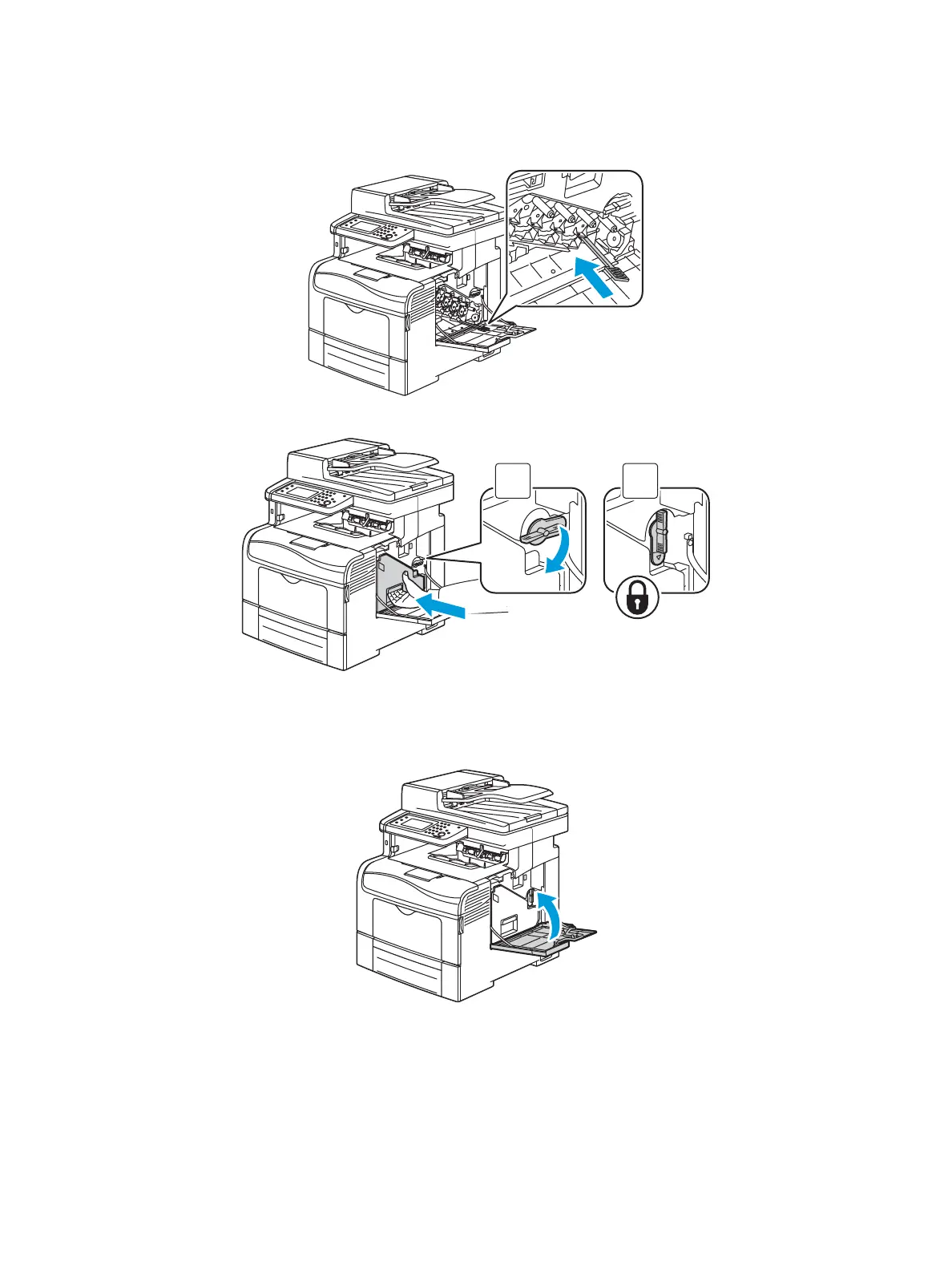

9. Return the cleaning rod to its original location.
10. Reinsert the waste cartridge, and turn the waste cartridge lock lever 90-degrees clockwise.
Note: If the waste cartridge does not fit into place properly, ensure that the Transfer Belt is
inserted fully.
11. Close the side door.
