170 Chapter 12

Using LAN

Transferring Files

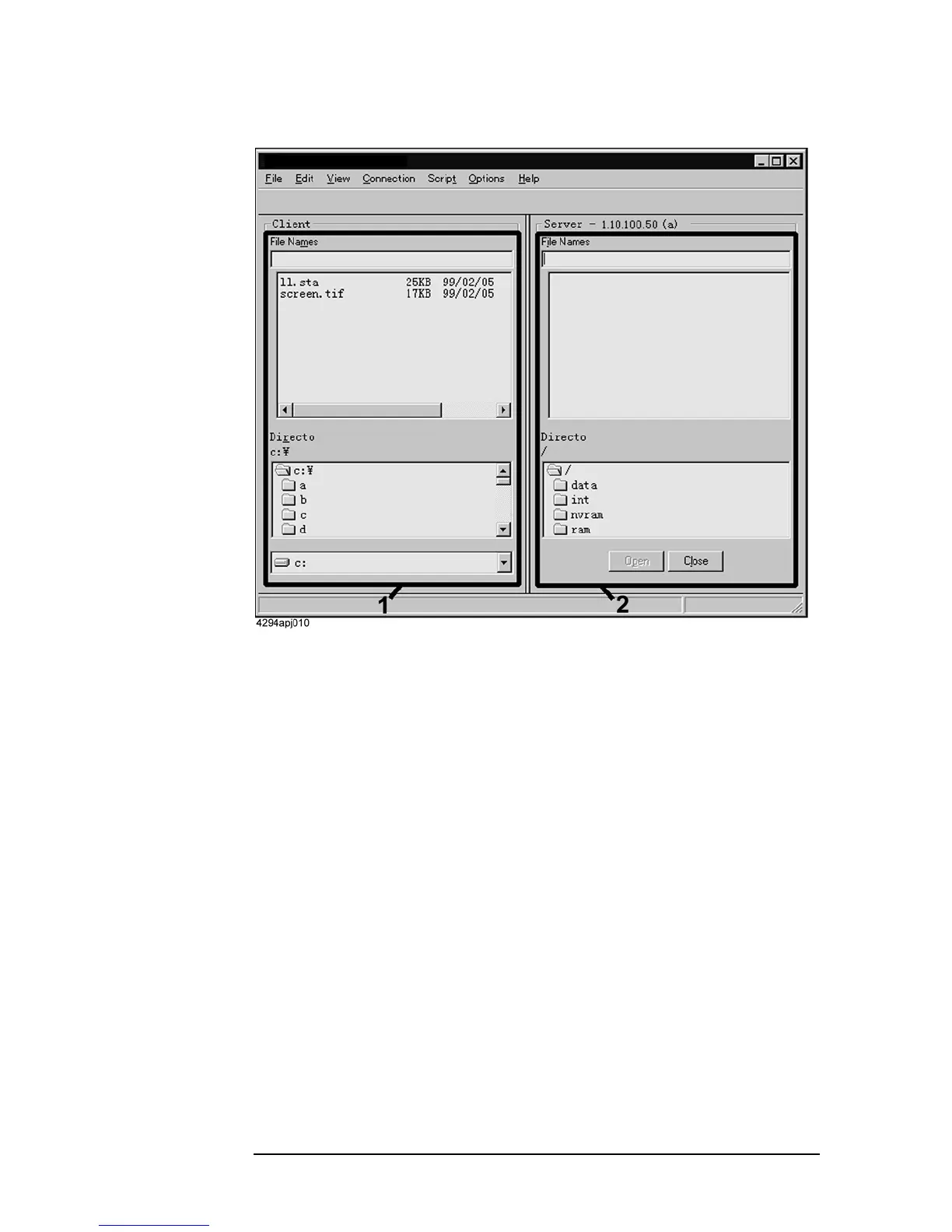

Figure 12-2 A sample screen of file transfer application (after connected with the 4294A)

Step 4. Copy files, similarly to the usual procedure for copying files by use of Windows 95

Explorer, from the external computer side (the window labeled 1 in

Figure 12-2) to the

4294Aside (the window labeled 2 in Figure 12-2), or from the 4294A side to the external

computer.
