374 Chapter 16
GPIB Command Reference
OUTPCOMC{1-3}?
This command defines the minimum negative peak as the resonant point and the maximum
peak as the anti-resonant point. For parameters not obtained because no peak and negative
peak are detected, 0 is read out.
The peak and negative peak used at the execution of this command satisfies the condition
set with the
“THRR” command on page 452. They are not related to the peak definition in
the marker search function.

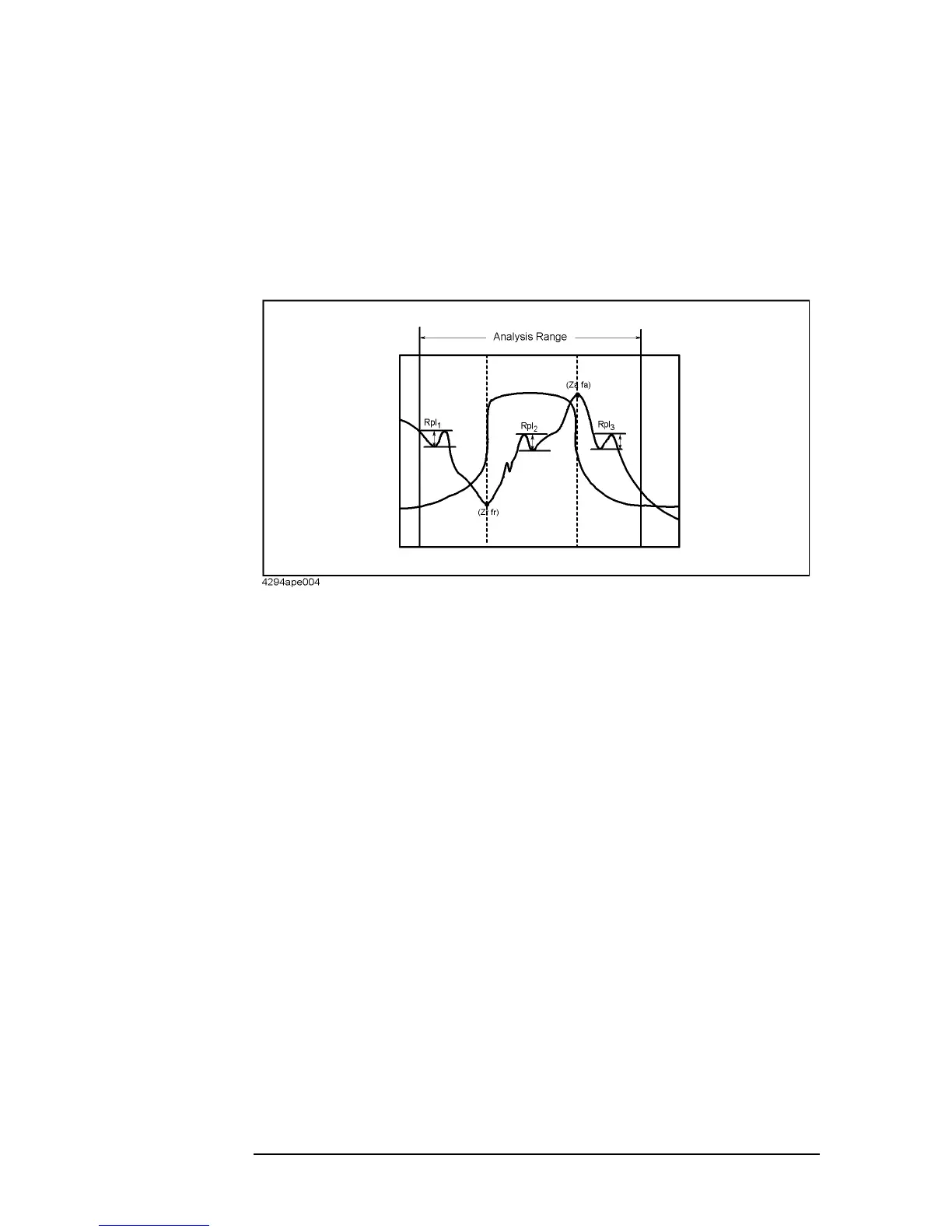

Figure 16-4 Analyzed parameters of a ceramic resonator
Corresponding
key
No front panel key is available to execute this function.
OUTPCOMC{1-3}?
Syntax OUTPCOMC{1-3}?
Description Reads out OPEN/SHORT/LOAD data for fixture compensation. Use the “OUTPCOMC1”
command to read out OPEN data (G-B); the “OUTPCOMC2” command, SHORT data
(R-X); the “OUTPCOMC3” command, LOAD data (R-X). (Query only)
Query response {numeric 1},{numeric 2},..,{numeric NOP×2-1},{numeric NOP×2}<newline><^END>
Reads out the real part and imaginary part of each measurement point value (complex
number) separately. Where, NOP is the number of points (for user measurement points) or
100 (for fixed measurement points), and n is an integer between 1 and NOP.
{numeric n×2-1}: Value of the n-th measurement point (real part).
{numeric n×2}: Value of the n-th measurement point (imaginary part).
Corresponding
key
No front panel key is available to execute this function.
