Application Sample Programs
Measuring Magnetic Materials
1. Chapter Title
2. Chapter Title 13. Application Sample
4. Chapter Title
5. Chapter Title
Programs
Measuring Magnetic Materials
This section describes how to measure magnetic materials using the 4294A (and the
42942A terminal adapter) and the 16454A magnetic material test fixture.
Measurement Procedure

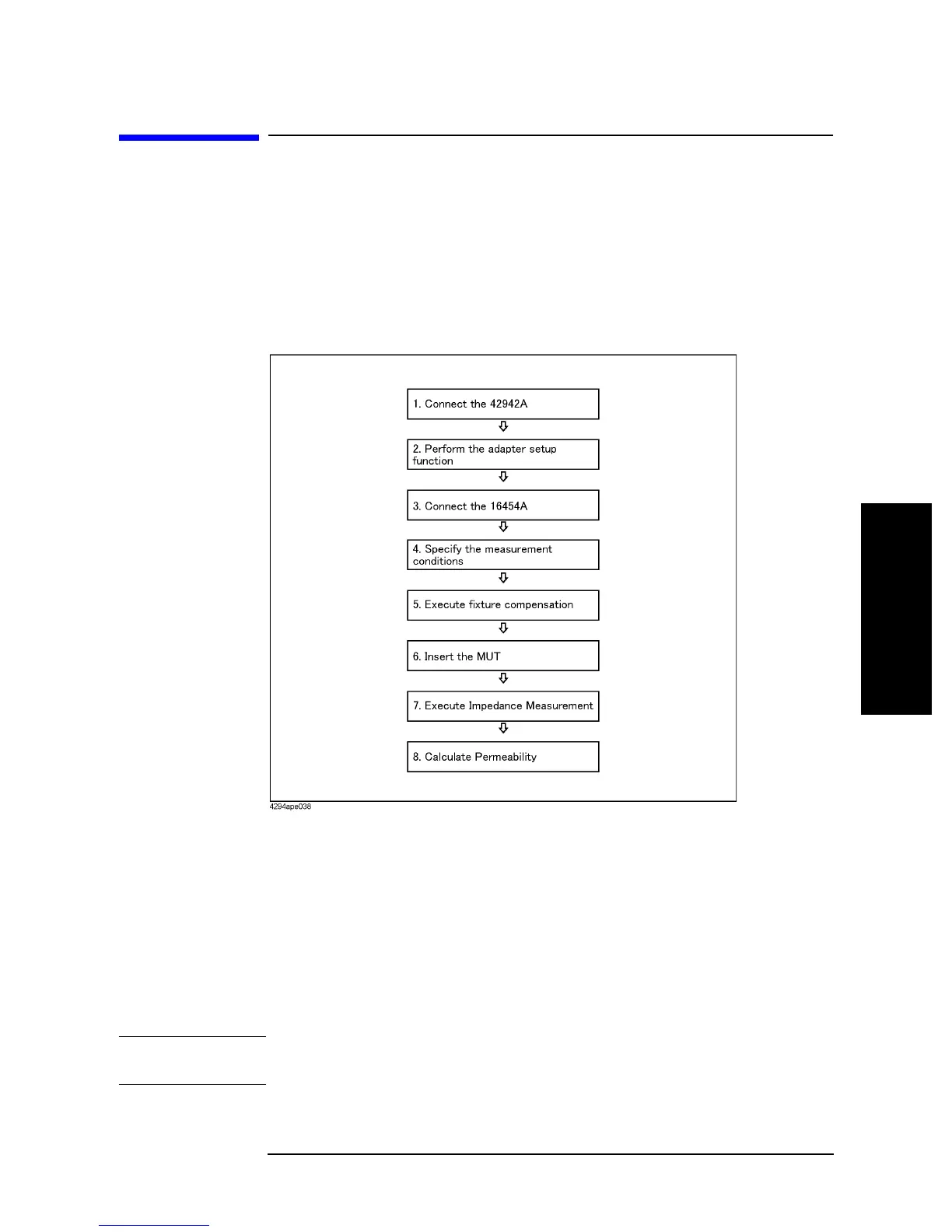

Figure 13-2 shows the flow of magnetic material measurement.
Figure 13-4 Flow of Magnetic Material Measurement
Step 1. Connect the 42942A
Connect the 42942A to the UNKNOWN terminal of the 4294A.
Step 2. Perform the adapter setup function
Select 7mm 42942A as the adapter, measure phase/OPEN/SHORT/LOAD data for
calculating the setup data, calculate the setup data, and store it into the nonvolatile
memory.
NOTE For details on how to set up the adapter when connecting the 42942A, refer to “Preparing
Accessories for Measurement” in the 4294A Operation Manual.
To Next Page
