Agilent Technologies 4294A Programming Manual

100 Chapter 7
Processing Measurement Results
Analyzing Measurement Results
Analyzing Measurement Results
Equivalent circuit analysis
With the Agilent 4294A, five different circuit models are available for equivalent circuit
analysis as shown below depending on the type of measurement results obtained.
Use the following command to select the desired circuit model.
• “EQUC” on page 311
Use the following command to perform equivalent circuit analysis.
• “CALECPARA” on page 275
NOTE The applicable range for equivalent circuit analysis is the same as the range searched by the
marker.

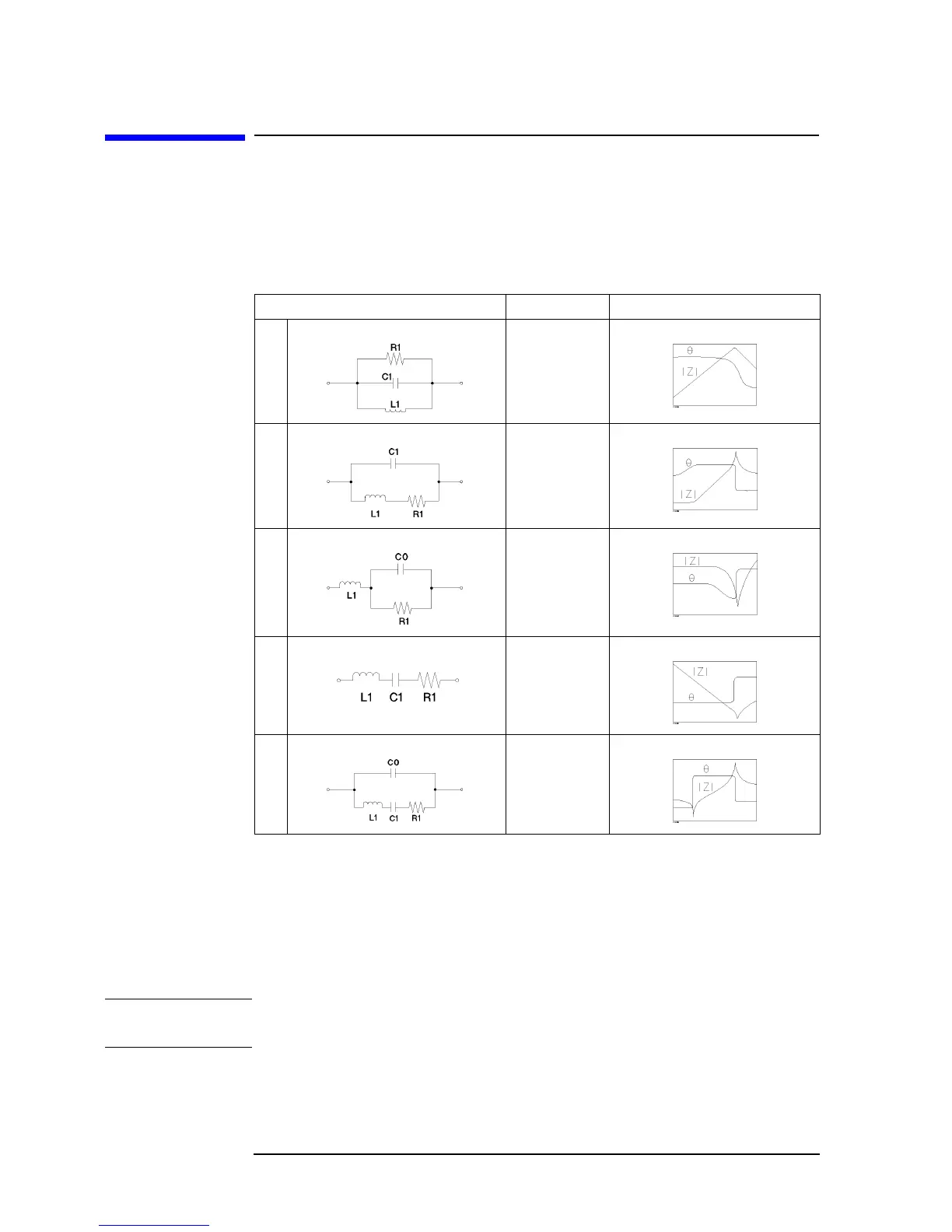

Equivalent Circuit Analysis Model Sample Types
Typical Frequency Characteristics
*1
A
Inductor
with Large
Core Loss
B
Inductor and
Resistor
C
Resistor with
Large
Resistance
D Capacitor
E
Oscillator and
Vibrator
*1.Measurement parameter: |Z|-θ, Vertical display format: logged |Z| and linear θ
