ESB?
16. GPIB
Command Reference
( F - N )
C
0
, C
1
, L
1
and R
1
are calculated using the following equations.
C
0
= C
1
× f
r
2
/(f
a
2
- f
r
2
)
C
1
= 1 /(Q × R
1
× 2 × π × f
s
)
L
1
= Q × R
1
/(2 × π × f
s
)
R
1
= 1 / G
max
Q = |f
s
/ (f
2
- f
1
)|
If there are no f
a
and f
r
points on the admittance chart, C
0
is calculated using the following
equation.
C
0
= B
fs
/(2 × π × f
s
)

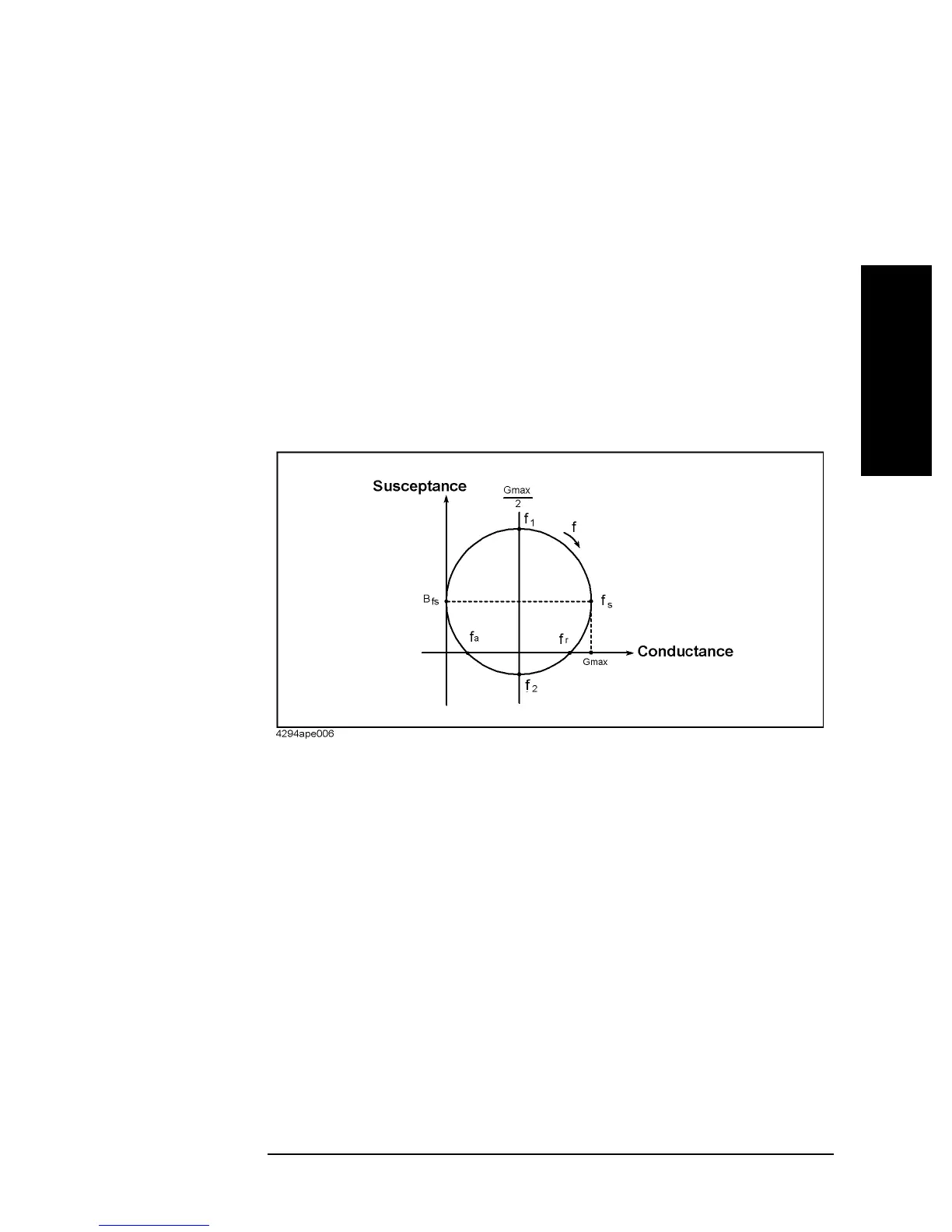

Figure 16-2 Admittance characteristic circle diagram
Corresponding
key
No front panel key is available to execute this function.
ESB?
Syntax ESB?
Description Reads out the value of Instrument Event Status Register (Event Status Register B). (Query
only)
Query response {numeric}<newline><^END>
Corresponding
key
No front panel key is available to execute this function.
