42 Chapter 3
Setting Measurement Conditions
Setting the On-screen Arrangement

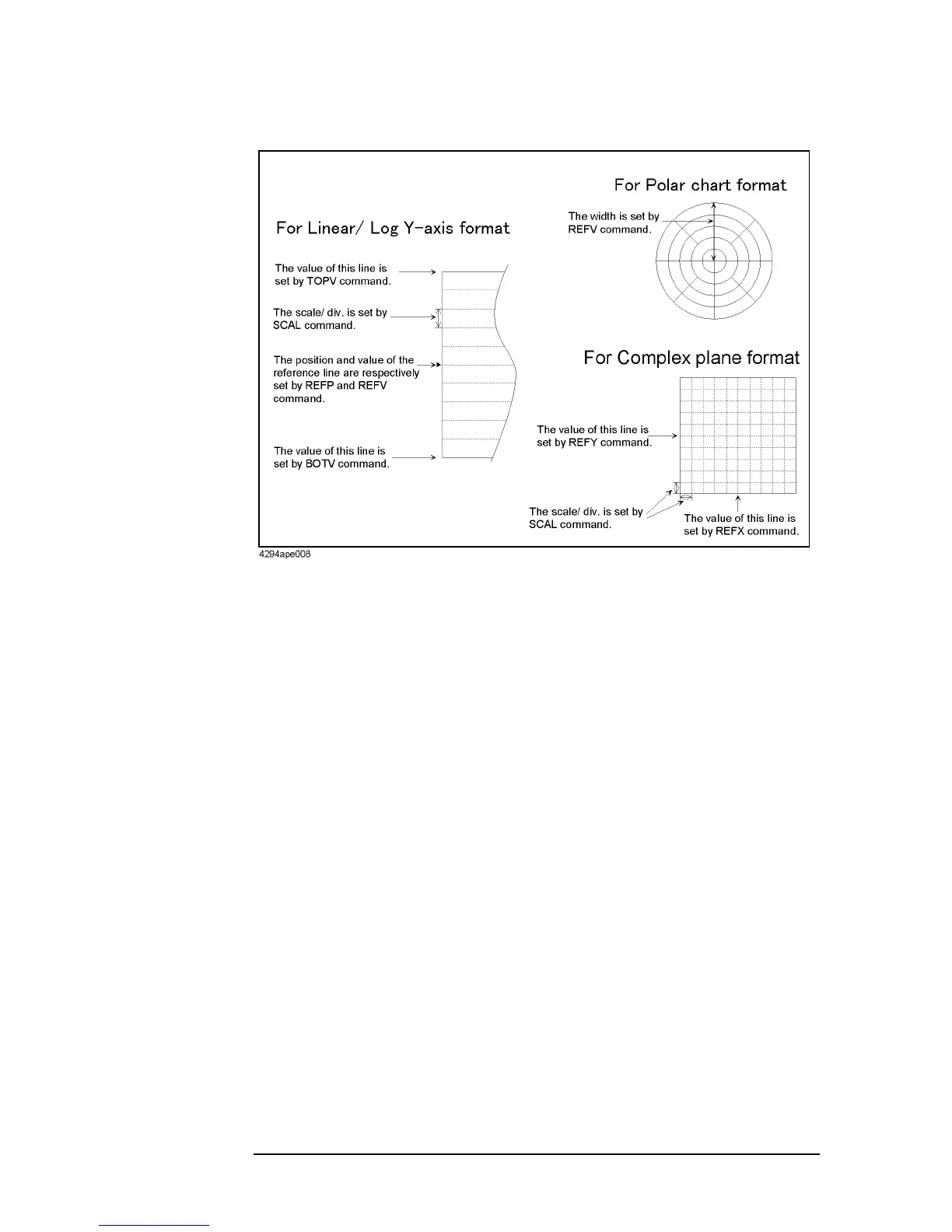

Figure 3-1 Commands for setting display scale parameters
Polar chart format
Make the settings by using the full-scale value (the value of the outermost circle) only. To
make the settings, use the command given below.
• “REFV” on page 409
Complex plane format
Set the scale parameters by using the commands given below.
• “SCAL” on page 423
• “REFX” on page 410
• “REFY” on page 410
The center line of the grid along the X-axis and that along the Y-axis are always used as the
lines for the reference values and cannot be changed. The relations between the commands
and the scale parameters are shown in
Figure 3-1.
