Tone
Touch the Tone Frequency button and use the launched dialog box to key
in the frequency, using the numeric softkeys.
Touch the Level button and use the launched dialog box to key in the level.

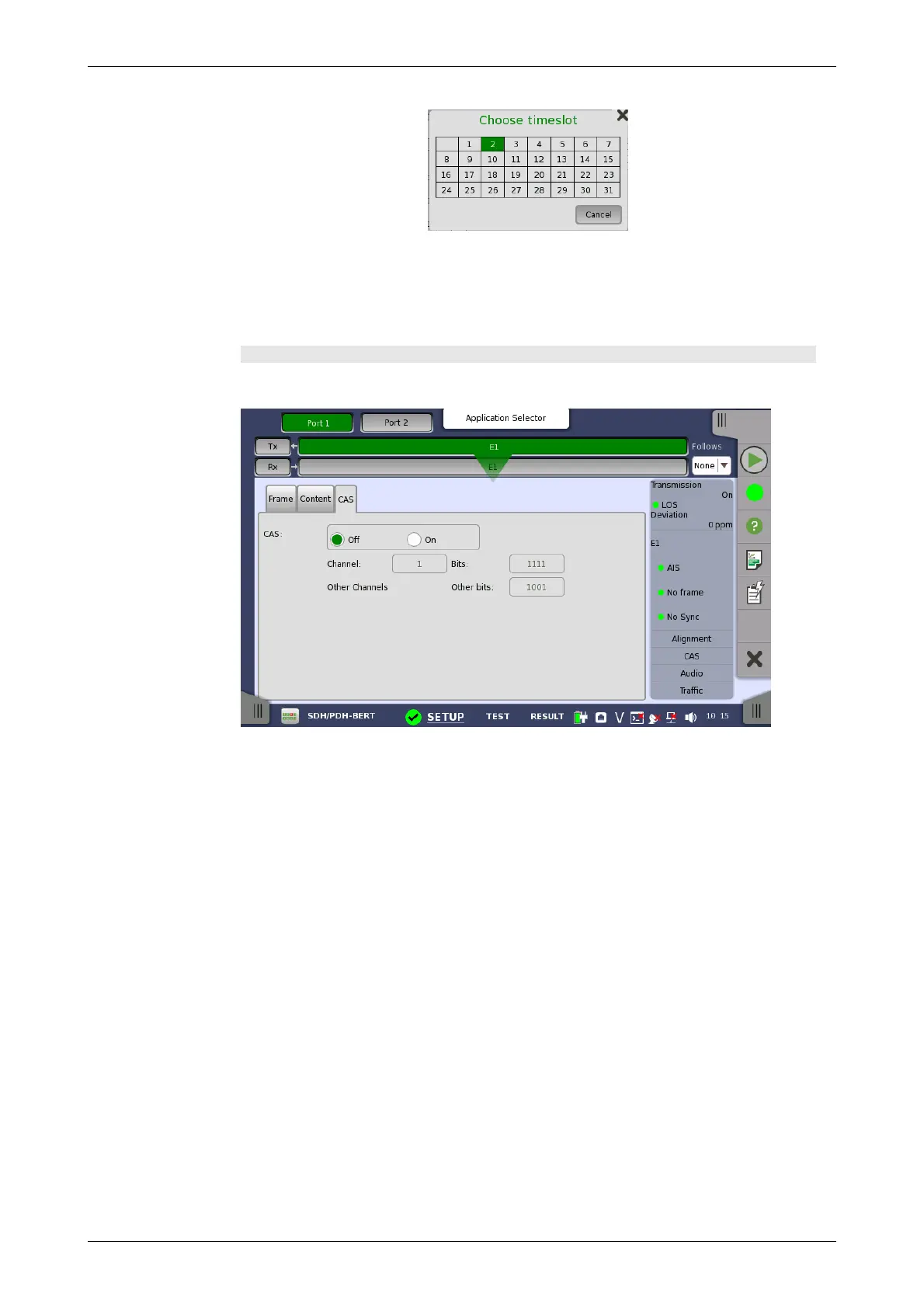

CAS tab page
The CAS tab page contains the following parameters:
CAS
Use the CAS radio buttons to enable (On) or disable (Off) the insertion of a
CAS (Channel Associated Signaling) signaling multiframe into time slot 30 of
the transmitted signal.
Touch the Channel, Bits and Other bits fields to define the contents of a
selectable CAS channel as well as the remaining channels.
5.3.2 Receiver Setup
5.3.2.1 Physical Setup
When the receiver is set up with only an E1 interface, selecting the Rx button
in the navigation area will launch the following screen.
