Tone frequency
The frequency of the audio signal is shown here.
Coder offset
The coder offset is presented if the time slot displayed is a normal 64 kbit/s
time slot.
Audio level
Two dBm meters show the volume of the currently selected audio channel
(Port1 - Port2).
5.3.3.7 Traffic

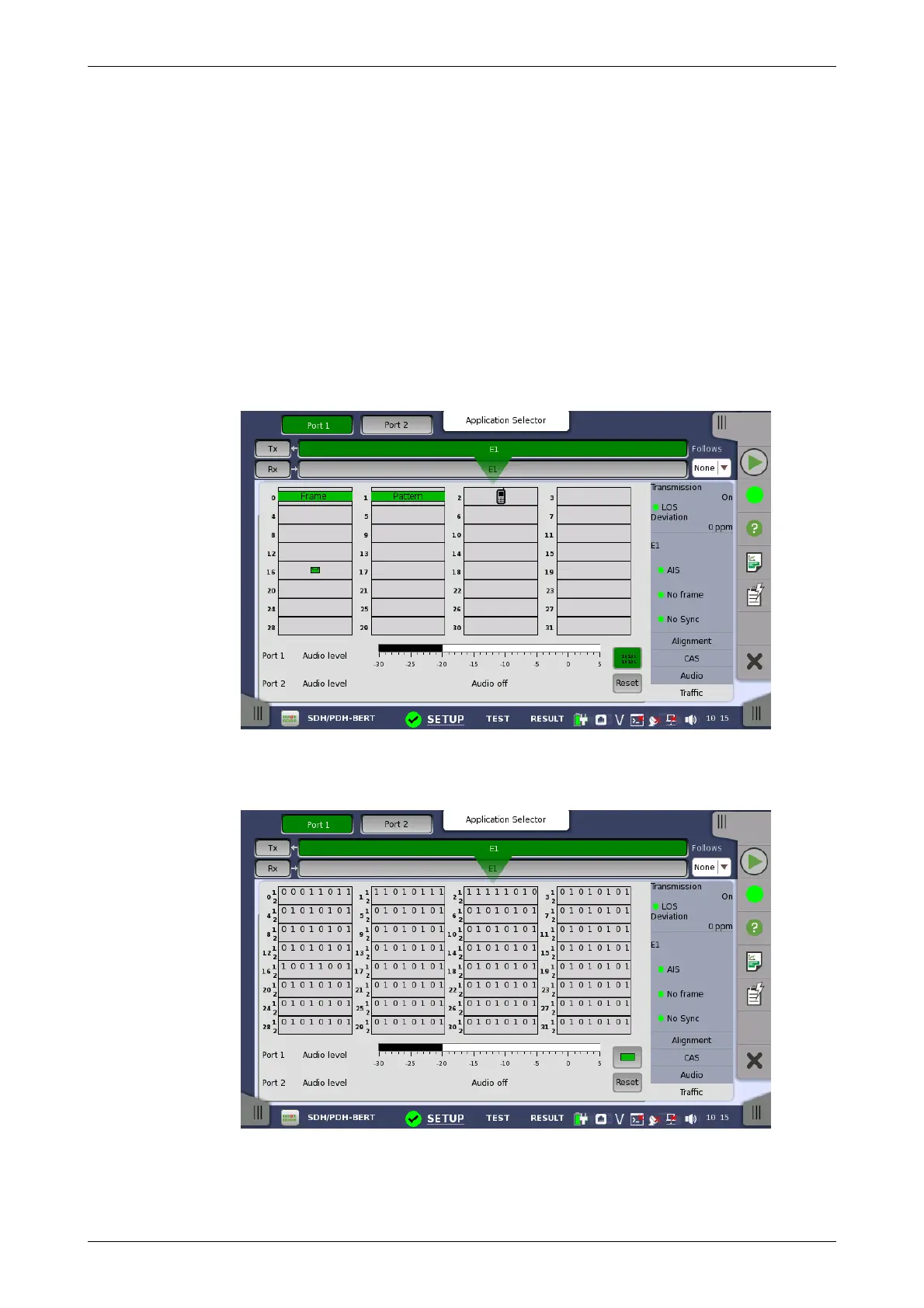

Touching the Traffic button in the status area of the Ports Setup screen
displays the status shown below.
This screen shows the activity of the speech channels represented on the 2
Mbps line. You can switch between a traffic display and a view of the time
slot content.
The busy / idle status of channel is displayed.
The current audio time slot is marked with an green highlighting. Select the
relevant channel by touching it.
