3.4.2 Service Interfaces

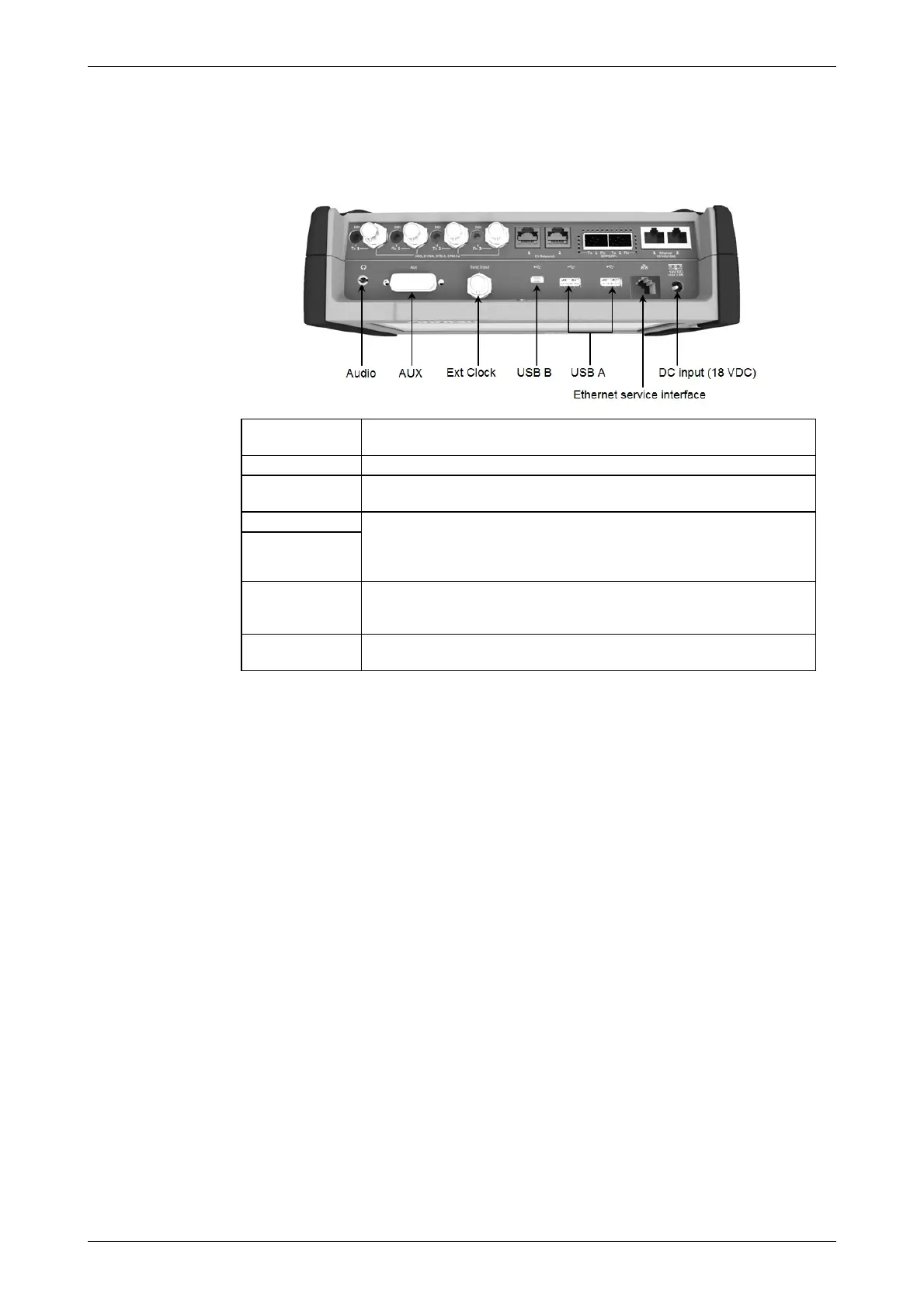

All connections concerning the service interfaces are also located on the
connector panel:
Audio
The audio connector is used for connecting to an optional
head set.
AUX The AUX connector is used for G0325A GPS Receiver.
Ext Clock Input
The Ext Clock Input connector is used for reference clock
input.
USB B The three USB connectors (two connectors type A and one
connector type B mini) can, for example, be used for
connection with USB memory stick. This is convenient for the
exchanging of information to other instrument.
USB A
Ethernet service
interface
The Ethernet connector is used for connecting the Network
Master to a Local Area Network, e.g. to remotely operate the
instrument from a PC.
DC input (18
VDC)
The DC power connector is used for connection of 18 V DC
power delivered from the AC Adapter.
