LAN Status
WAN Alarms,
WAN Errors
PCS Alarms
PCS Errors
PCS Status

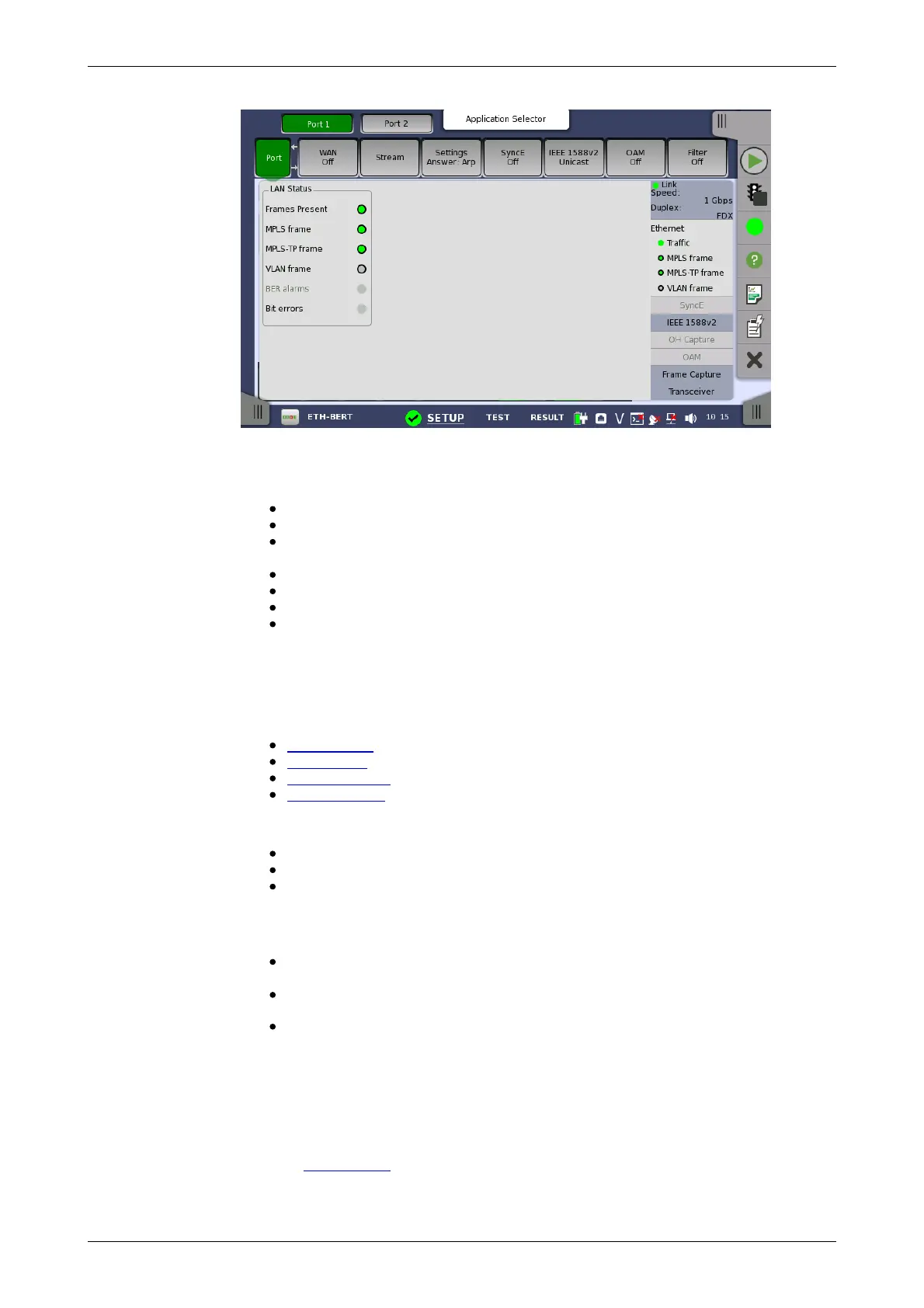

This screen presents key interface status indicators, with Lamp icons
showing the current status. These indicators give a quick overview of the
condition of the lines.
Frame Present: Ethernet frames are detected.
MPLS frame: Label of MPLS (Multi-Protocol Label Switching) is detected.
MPLS-TP frame: Label of MPLS-TP (Multi-Protocol Label Switching
Transport Profile) is detected.
VLAN frame: Virtual LAN tag is detected.
Multi stream frame loss: Multi stream frame loss is detected.
BER alarms: BER Alarms are detected.
Bit errors: Bit errors are detected.
Multi stream frame loss appears in case of Mon./Gen. application.
WAN Alarms and WAN Errors appear when 10 Gbps WAN is set.
For the detail of items, refer to the following descriptions in
"SDH/SONET/PDH/DSn Applications".
SDH Alarms
SDH Errors
SONET Alarms
SONET Errors
This status appears when the SFP+ is set to Interface Type .
Local fault: Local fault is detected.
Remote fault: Remote fault is detected.
High BER: High BER is detected.Appears when Port is set to 10 Gbps
LAN.
PCS Errors and PCS Status appear when Port is set to 10 Gbps LAN.
Invalid Sync Header: Invalid Sync Header (Sync bit is 00B or 11B.) is
detected.
Invalid Block: Invalid Block is detected.
LOBL: Sync Header Lock is detected.
6.1.3.4 OH Capture
This function is enabled when interface is set to 10G WAN. Touching the OH
Capture button in the status area of the Ports Setup screen launches the
dialog box similar to the SDH/SONET OH Capture screen.
Refer to OH Capture in the "SDH Setup and Status" section.
6.1.3.5 SyncE
