5.1 SDH Setup and Status
An STM-xx button in the navigation area of the Ports Setup screen gives
you access to the SDH setup for the transmitter and/or receiver of the
currently selected port.
Refer to SDH/SONET switching for switching to SDH.
Synchronous Digital Hierarchy (SDH) is a standardized protocol that transfers
digital signals over optical fiber using lasers. At low transmission rates data
can also be transferred via an electrical interface.
The SDH interface uses the electrical BNC connectors and the optical ports.
MU100010A Connector Panel
5.1.1 Transmitter Setup
5.1.1.1 Physical Setup

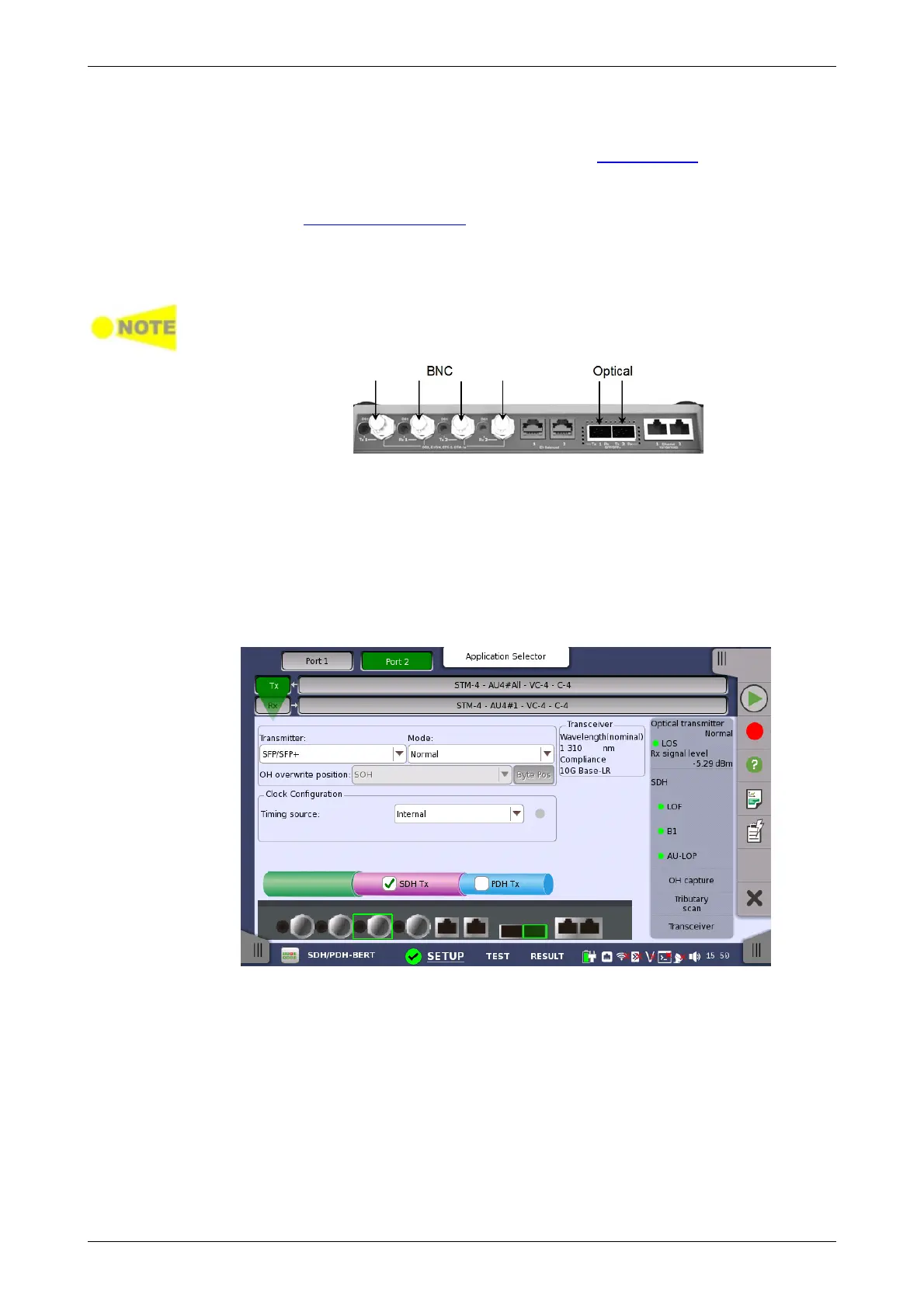

When the transmitter is set up with an SDH interface, touching the Tx button
in the navigation area will launch the following screen. (Note that the SDH Tx
check box above the connector panel illustration is selected.)
This screen allows you to enable the optical or electrical interface of the SDH
transmitter. It can also be used to confirm the current status of the selected
port.
The configuration options available in the setup area of the screen are
described below. The status information is described in a separate section.
Transmitter
Use the Transmitter drop-down menus to select to the transmitter.
Mode
Use the Mode drop-down menus to select to the behavior of the transmitter.
OH overwrite position
