The most important columns of the tables are the varied main parameters
Frame size and Throughput and the performance parameter Loss rate.
The order of the tables will vary depending on the test mode and the relation of
the ports. Refer to the table in "Throughput" subsection of "Test Results".

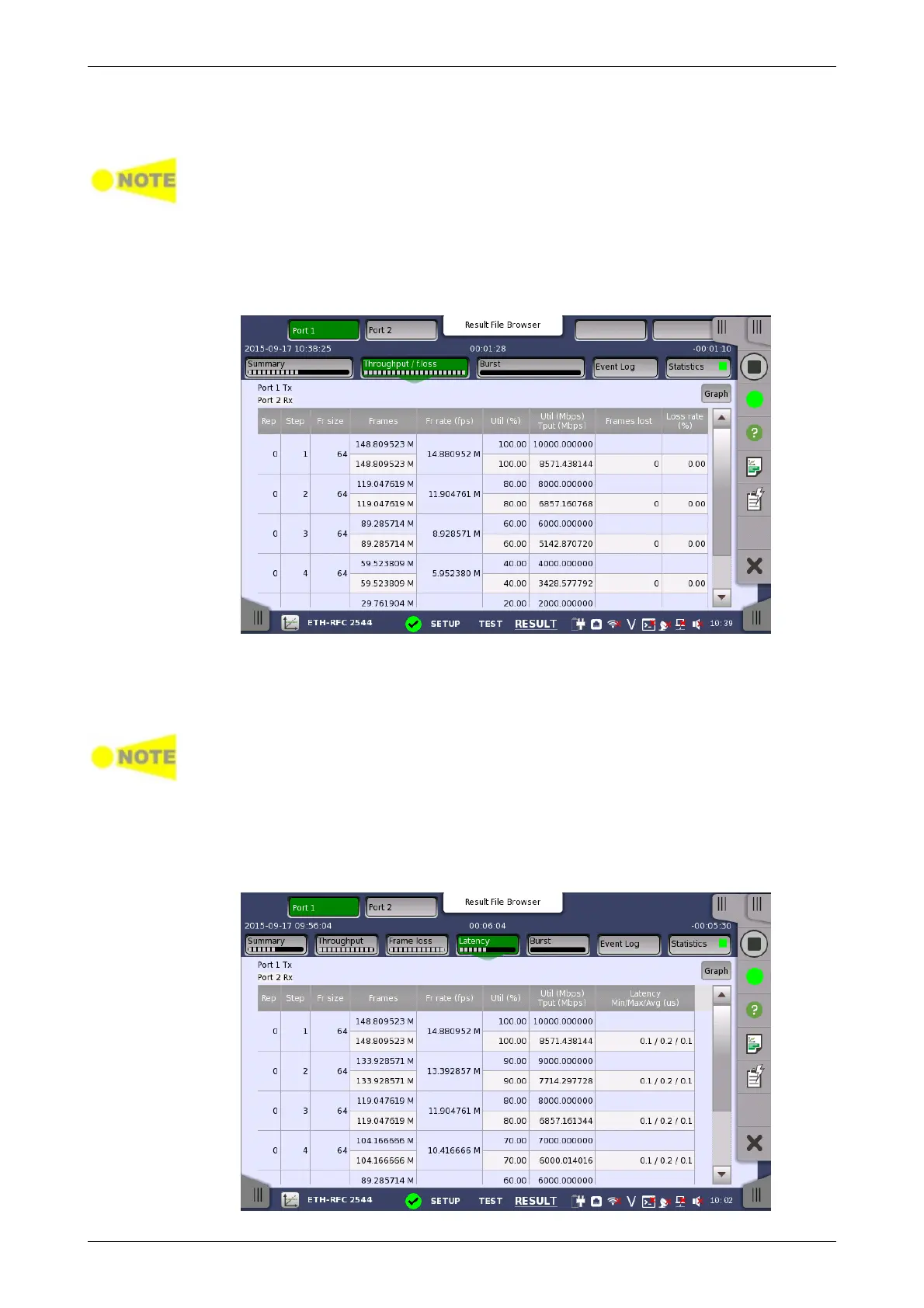

6.9.3.4 Throughput and frame loss
Touching the Throughput and frame loss button in the navigation area
will display the screen shown below.
This screen presents the results from the Throughput and frame loss test.
The most important columns of the tables are the varied main parameters
Frame size and Throughput and the performance parameters Frames lost
and Loss rate.
The order of the tables will vary depending on the test mode and the relation of
the ports. Refer to the table in "Throughput" subsection of "Test Results".
6.9.3.5 Latency
Touching the Latency button in the navigation area will display the screen
shown below.
