6.4 Channel Statistics
The Channel Statistics test separates incoming frames into channels based on
a number of defining characteristics (Definitions) and shows information about
each channel (Statistics). The test is mostly used for in-service monitoring,
where it provides data for detailed analysis of the traffic types present in the
network.
6.4.1 Ports Setup and Status
The first step in running an application is to set up the port interfaces. This is
done on the Ports Setup screen, which also provides port status
information.
The setup options and status information related to the Ethernet interface are
described in a separate section:
Ethernet Setup and Status
6.4.2 Test Setup
6.4.2.1 Control
Refer to "Control in "BERT" section for the operation.
6.4.2.2 Generator
Refer to "Generator in "BERT" section for the operation.
6.4.2.3 Stream
Refer to "Stream in "Mon/Gen" section for the operation.
6.4.2.4 Definitions

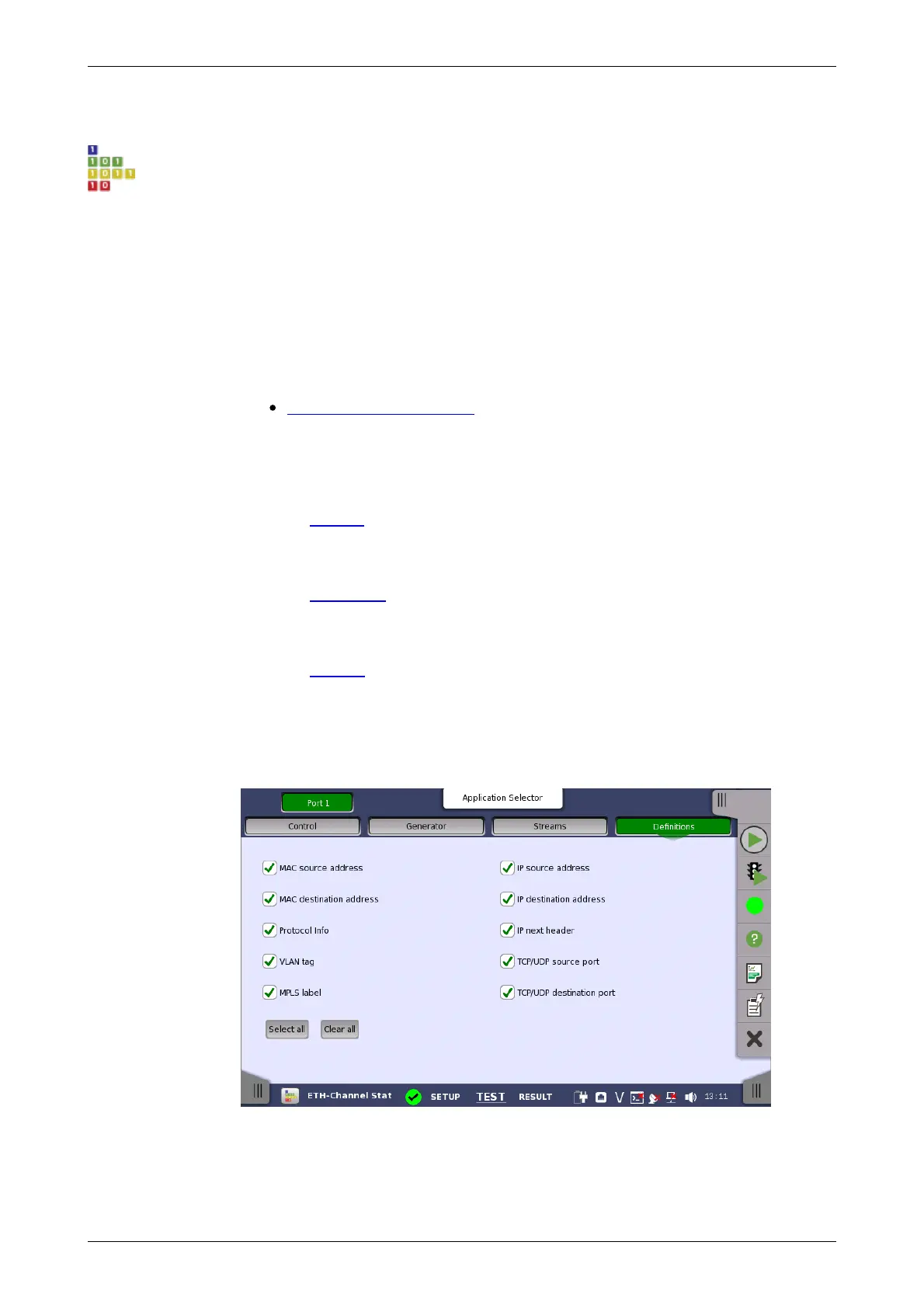

Touching the Definitions button in the navigation area displays the
following screen.
This screen is where you specify which frame characteristics are
considered when performing the channel separation (i.e. which frame
characteristics are active during the test). The maximum number of
channels is 231.
