Monitor Buttons
A summary consisting of the most relevant alarm/error indications is
displayed constantly. By touching the summary, you can launch a display
that contains all alarms/errors.
At the bottom of the status area are below buttons that give you access to
various monitor information. By touching a button, you can launch the
corresponding information display.
Alignment
CAS
Audio
Traffic
5.3.3.2 Physical Details

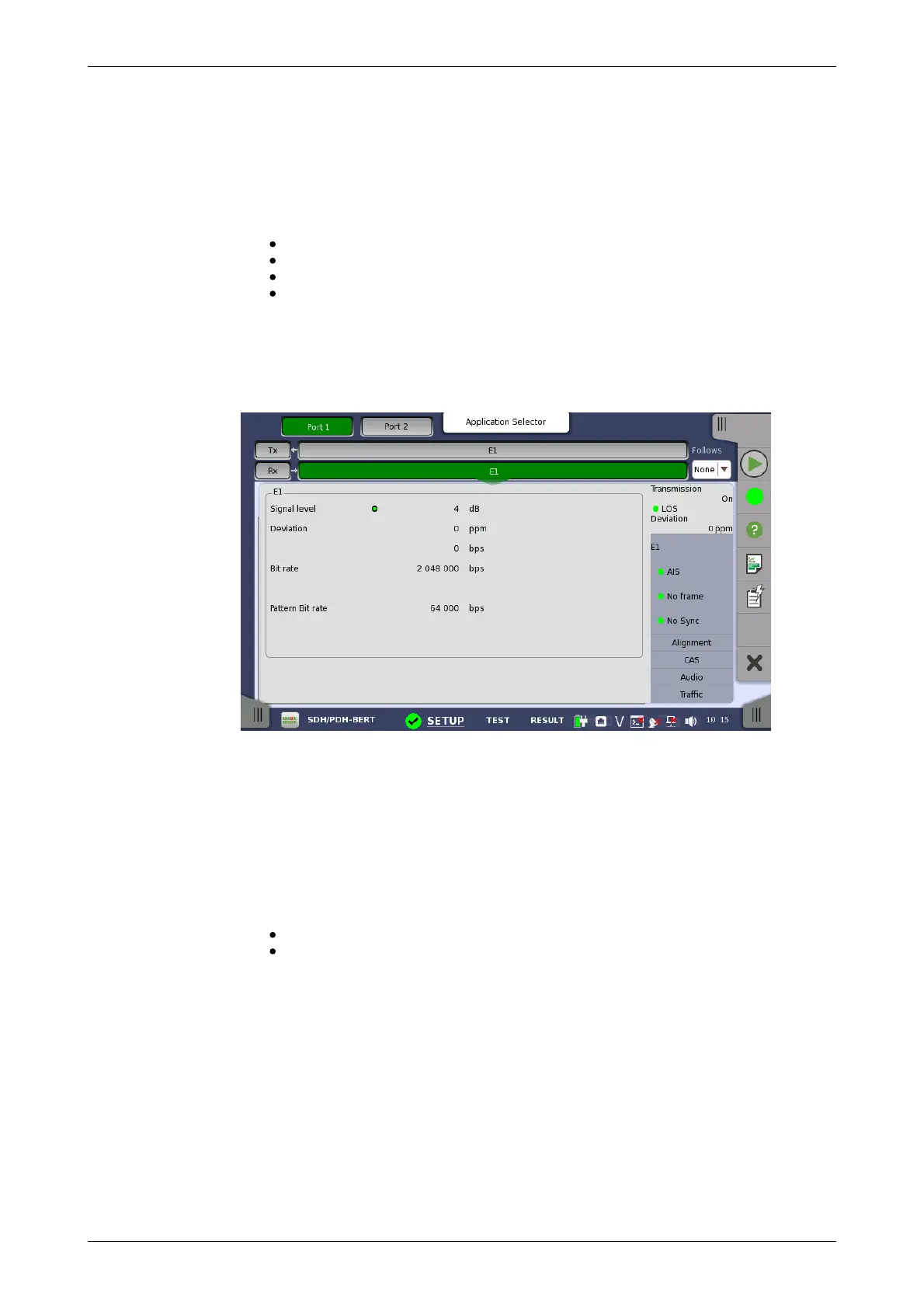

Touching the topmost summary box in the status area of the Ports Setup
screen displays the status shown below.
This screen presents detailed information about the current physical status
of the received signal at the 2 Mbps E1 layer.
The physical status information consists of the following parameters.
Signal level
The Signal Level indicators show the attenuations (in dB) of the currently
received signals compared to a nominal signal.
The nature of the levels depend on the Input Level setup for each receiver
(Terminate or Monitor):
In Terminate mode, the attenuation is assumed to be caused by a cable.
In Monitor mode, linear attenuation is assumed.
Deviation
The deviation from the nominal bit rate is shown for each receiver in both
ppm and bps. The nominal bit rate is 2 048 000 bps.
Bit rate
The actual bit rate of each receiver is shown (in bps).
Pattern Bit rate
This field shows the effective bit rate of the patterns received (that is, the
number of pattern bits received per second).
5.3.3.3 Alarms and Errors
