Use of colors

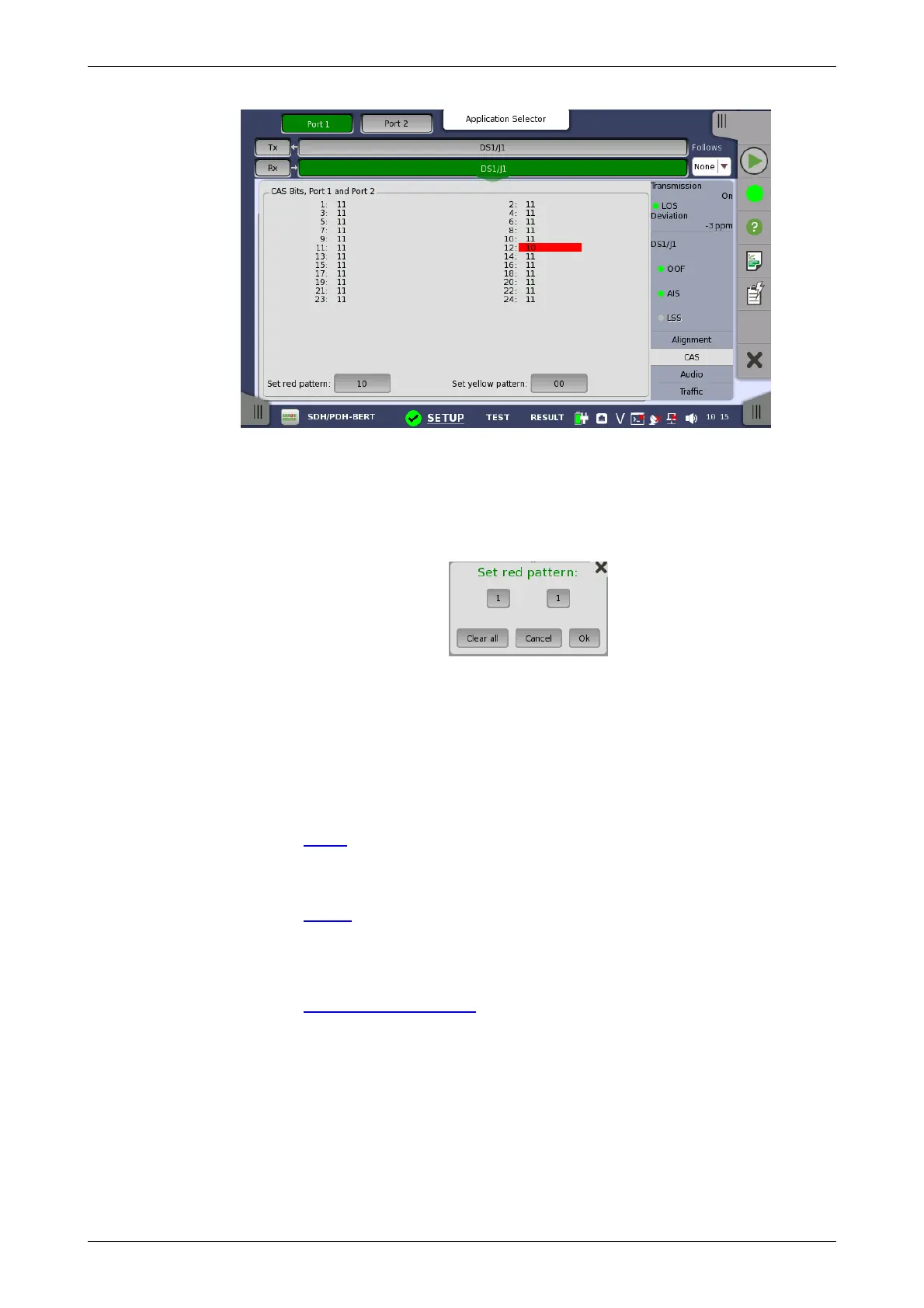

This screen gives information on the CAS (Channel Associated Signaling)
signaling when available. It displays the state of the two signaling bits in both
directions for all 24 channels. Activity is indicated with bold characters.
For easy recognition of special bit combinations, coloring is available. Use
the Set red pattern and Set yellow pattern buttons to launch the
respective setup dialog boxes.
The color pattern consists of four binary digits for ESF/J1 frame. For SF/D4
frame, it consists of two binary digits. The minimum acceptable value is 00
or 0000, and the maximum acceptable value is 11 or 1111. Touch the digit
buttons to set the relevant value and then touch Ok.
To clear the whole word e.g. to make the line ready for new digit settings,
touch the Clear all button.
5.4.3.6 Audio
Refer to Audio in "E1 Setup and Status".
5.4.3.7 Traffic
Refer to Traffic in "E1 Setup and Status". In DS1/J1 Traffic status screen, the
24 traffics are displayed.
5.4.4 Errors/Alarms Insertion
Refer to Errors/Alarms Insertion in E1 Setup and Status section.
5.5 E3 Setup and Status
