SSM/QL
Local Clock

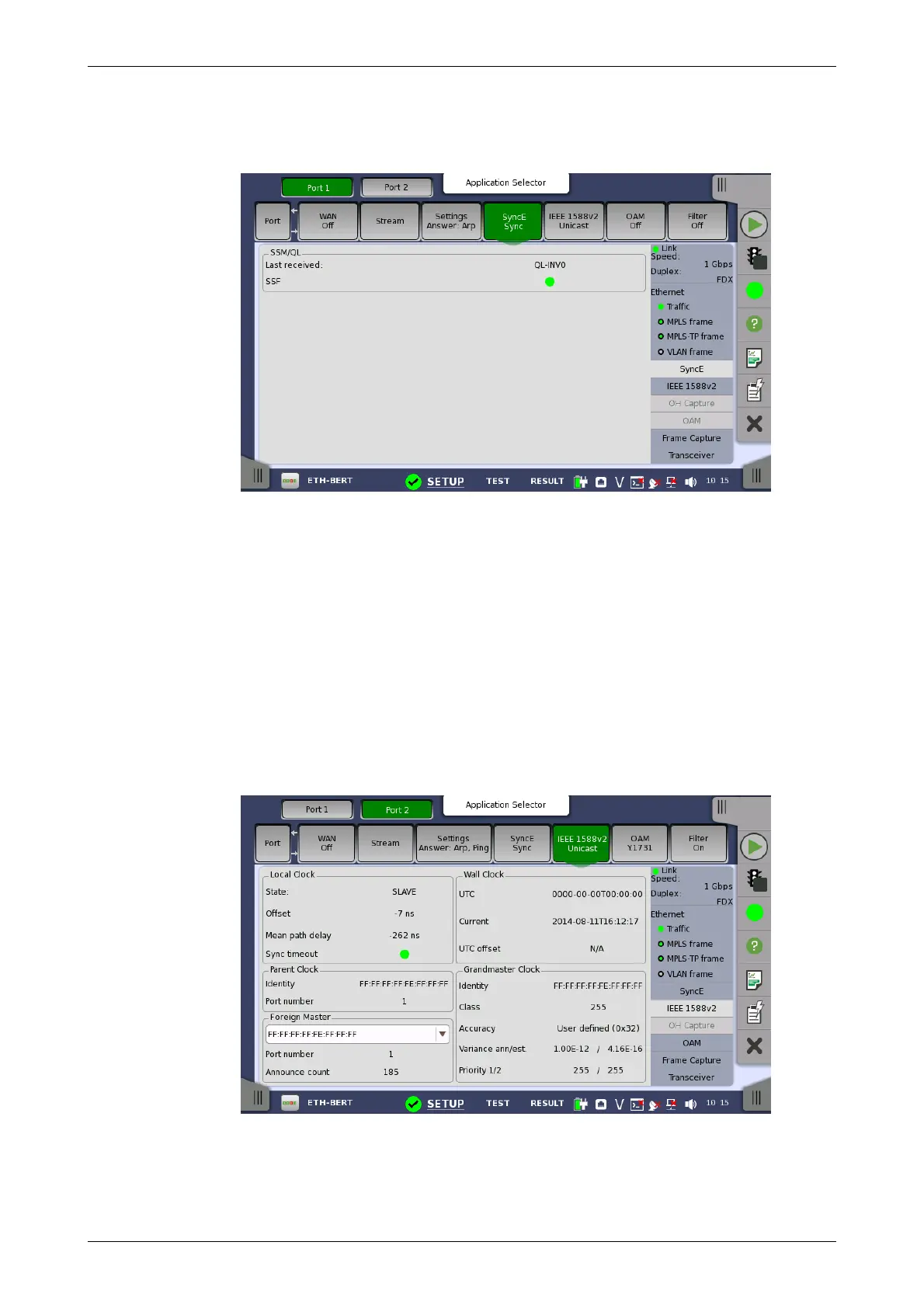

Touching the SyncE button in the status area of the Ports Setup screen
displays the status shown below.
This screen presents information related to the status of synchronous
Ethernet.
Synchronization Status Message and Quality Level status
Last received
Shows the latest QL value.
SSF
Server signal fail. The Lamp icon becomes red when no ESMC message has
been received within the last five seconds.
6.1.3.6 IEEE 1588v2
Touching the IEEE 1588v2 button in the status area of the Ports Setup
screen displays the status shown below.
This screen presents information about the status of the IEEE 1588 clock.
State
Shows the current clock state of the ports (MASTER/SLAVE). A unicast slave
may be stuck in INIT-state until the master clock grants access.
