Alarm/Error
Status
The middle part of the status area gives you access to alarm and error
information for the selected interface. The current status is indicated by the
lamp color.
A summary consisting of the most relevant alarm/error indications is
displayed constantly. By touching the summary, you can launch a display
that contains all alarms/errors.
5.5.3.2 Physical Details
Refer to Physical Details in "E1 Setup and Status". The nominal bit rate of E3
is 34 368 000 bps.
5.5.3.3 Alarms and Errors

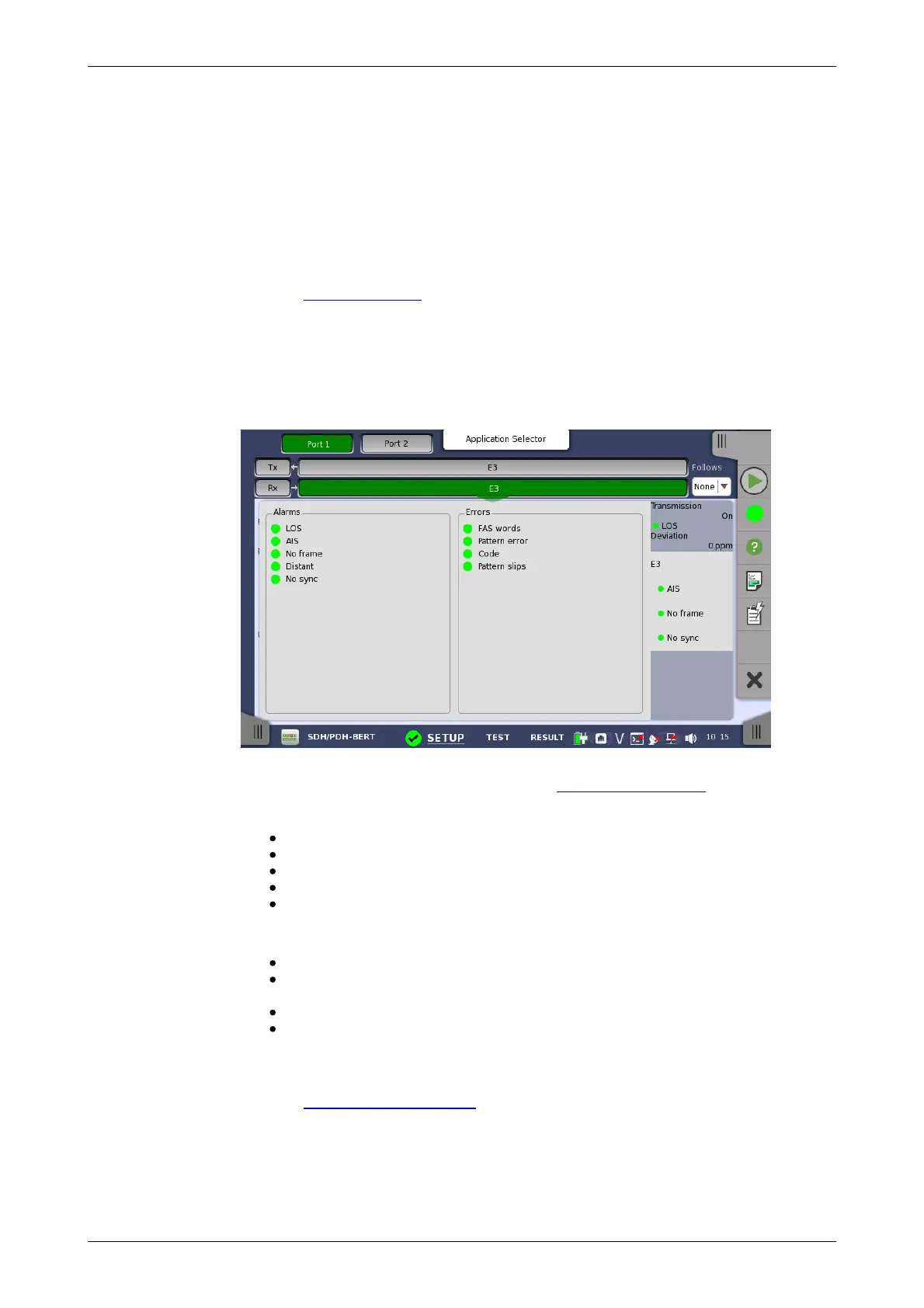

Touching the middle summary box in the status area of the Ports Setup
screen displays the status shown below.
This screen contains detailed alarm and error information related to the E3
interface. Status is indicated by the use of colored Lamp icons.
Alarms
LOS: Loss of Signal
AIS: Alarm Indication Signal
No frame: No frame
Distant: Distant
No sync: No synchronization
Errors
FAS words: Received FAS pattern does not match to "1111010000".
Pattern error: Received pattern does not match to specified pattern
type.
Code : Code
Pattern slips : Pattern slips are occurring.
5.5.4 Errors/Alarms Insertion
Refer to Errors/Alarms Insertion in E1 Setup and Status section.
