In the byte-specific dialog box, select the display format (ASCII or Hex) using
the Operator Specific Area drop-down menu.

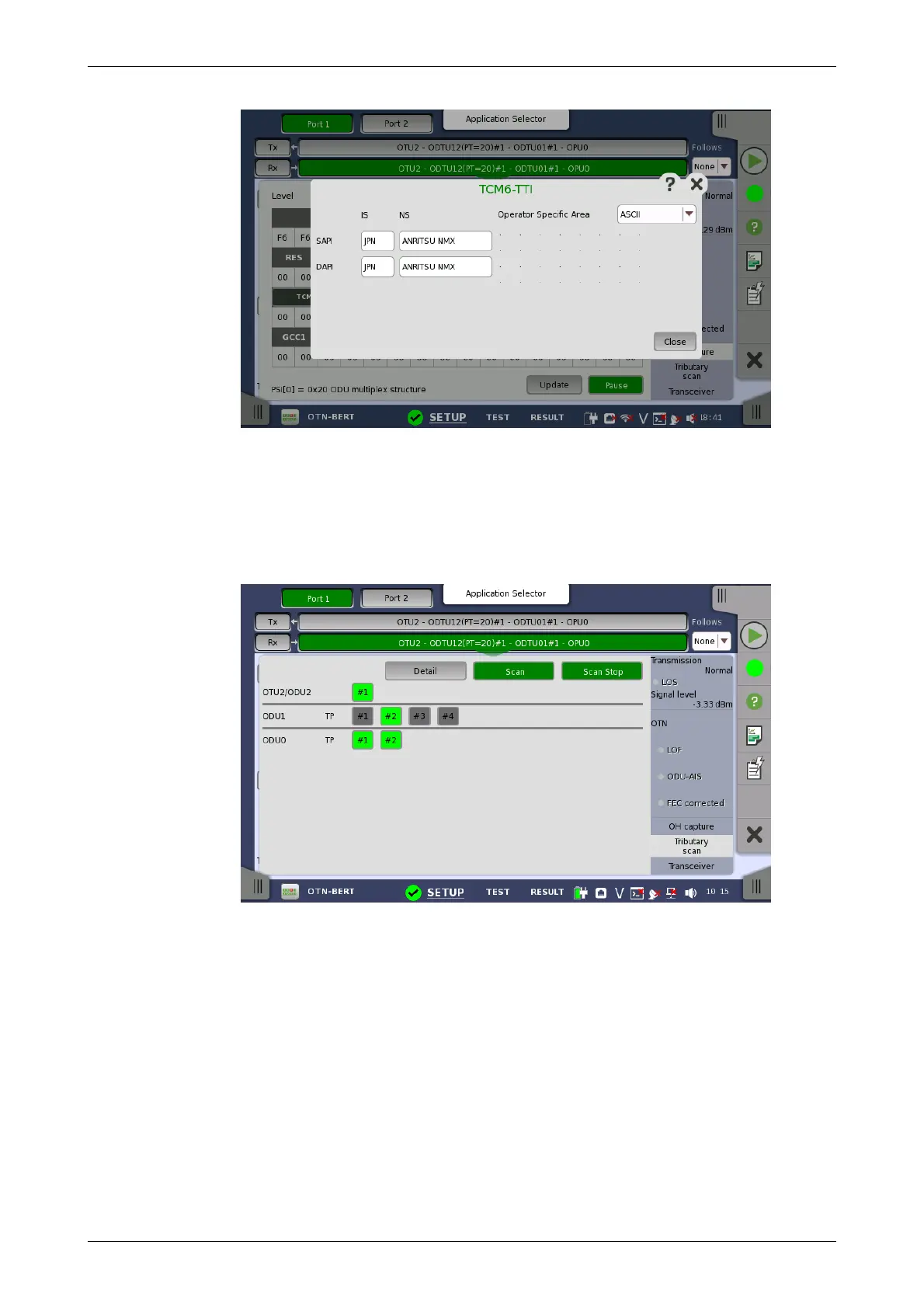

7.1.3.5 Tributary scan
Touching the Tributary scan button in the status area of the Ports Setup
screen displays the status shown below.
A Tributary scan detects errors and alarms over multiple Tributary Ports
depending on the current mapping settings at the receiver port. The screen
displayed by the Tributary scan button can be used to acquire the tributary
status information.
The screen contains the following buttons: Detail, Scan, Scan Start/Stop.
The Scan button is active when the screen is displayed.
Start scanning
Touching the Scan Start button scans one level at a time. With the Scan
button active (displayed in green), you can select the Tributary Port to scan
by touching the number button. The buttons are shown in green or red
according to the scan result. Note that only one ODUk at the first level is
displayed.
