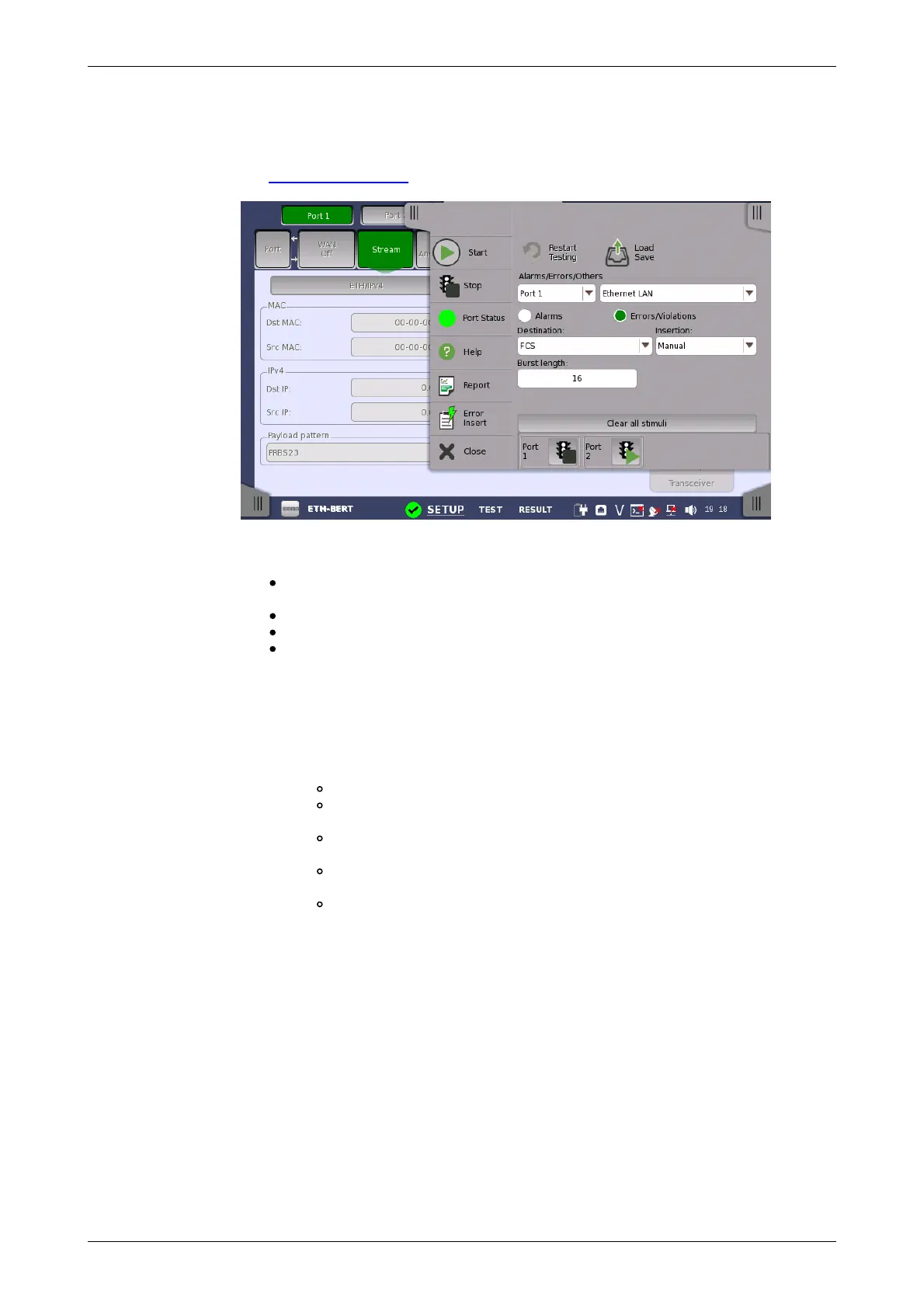

6.1.4 Errors/Alarms Insertion
This section describes the errors or alarms insertion for the Ethernet layer on
the Application toolbar.
Select the port to insert errors, and the stimuli type. The settings items vary
depending on the selected stimulus type.
Ethernet LAN: Inserts errors or alarms related the Ethernet frame, IP
packet or the pattern error.
Ethernet PCS alarms/errors: Inserts errors or alarms to PCS blocks.
Ethernet WAN: Inserts errors or alarms to the WAN header.
Ethernet frequency: Adds the frequency offset to the Ethernet bit rate.
6.1.4.1 Ethernet LAN
1. Select Alarms or Errors/Violations using the radio button.
2. Select Destination using the drop down menu.
3. Select the Insertion in case of Errors/Violations.
Alarms will be inserted continuously.
Off: Turns off inserting errors.
Manual: Inserts errors in the specified counts if you touch the
Error Insert icon.
Burst / sec: Inserts errors in the specified counts in one second
periodic.
Burst / 10 sec: Inserts errors in the specified counts in ten
second periodic.
Burst*1E-02 to Burst*1E-07: Inserts errors of burst length in the
specified rate continuously.
For example, Error burst length is set to 3 and Burst*1E-06 is
selected, the three errors will be inserted per one million blocks.
The Error Insert icon shows only status.
4. Touch the Burst length field to set the errors insertion counts.
5. When Insertion is set to Manual, Touch the Error Insert icon.
