User pattern field is enabled if Pattern type is set to User [32] bit or User
[2084] bit. Touch the User pattern field and use the launched Pattern
Editor dialog box to define the user pattern. Depending on the selected
pattern type, different user pattern setup options will be available.
The length can be any length from 1 bit to 32 bits or from 1 bit to 2048 bits.
5.7.3 Status Information
This section describes the status information available for the E4 layer in the
status area of the Ports Setup screen.
5.7.3.1 Status Summary
The status summary displayed for the E4 layer consists of the following
information:
The topmost part of the status area gives you access to information about
the current physical status of the selected interface. A summary consisting
of the most relevant status indicators is displayed constantly. By touching
the summary, you can launch a display that contains the detailed status
information.
The middle part of the status area gives you access to alarm and error
information for the selected interface. The current status is indicated by the
lamp color.
A summary consisting of the most relevant alarm/error indications is
displayed constantly. By touching the summary, you can launch a display
that contains all alarms/errors.
5.7.3.2 Physical Details
Refer to Physical Details in "E1 Setup and Status". The nominal bit rate of E4
is 139 264 000 bps.
5.7.3.3 Alarms and Errors

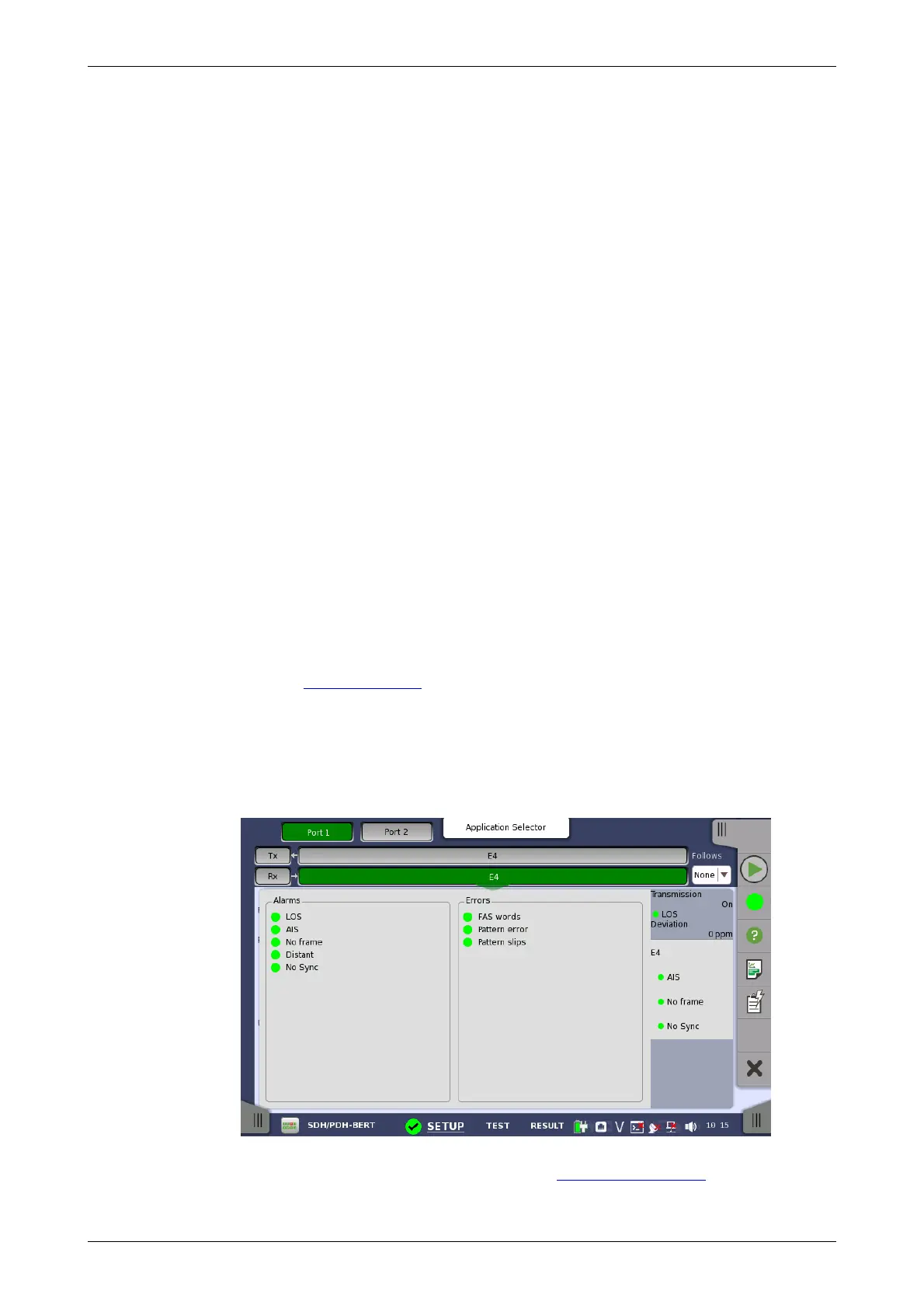

Touching the middle summary box in the status area of the Ports Setup
screen displays the status shown below.
This screen contains detailed alarm and error information related to the E4
interface. Status is indicated by the use of colored Lamp icons.
Alarms
To Next Page
