Only enabled when the OH overwrite has been selected to the behavior of
the transmitter. Use the drop-down menu to select the relevant overwrite
position. The available values are:
SOH
A1/A2 byte
K1/K2 byte
S1 byte
DCC1-3 byte
DCC4-12 byte
J0 byte
1 byte of SOH

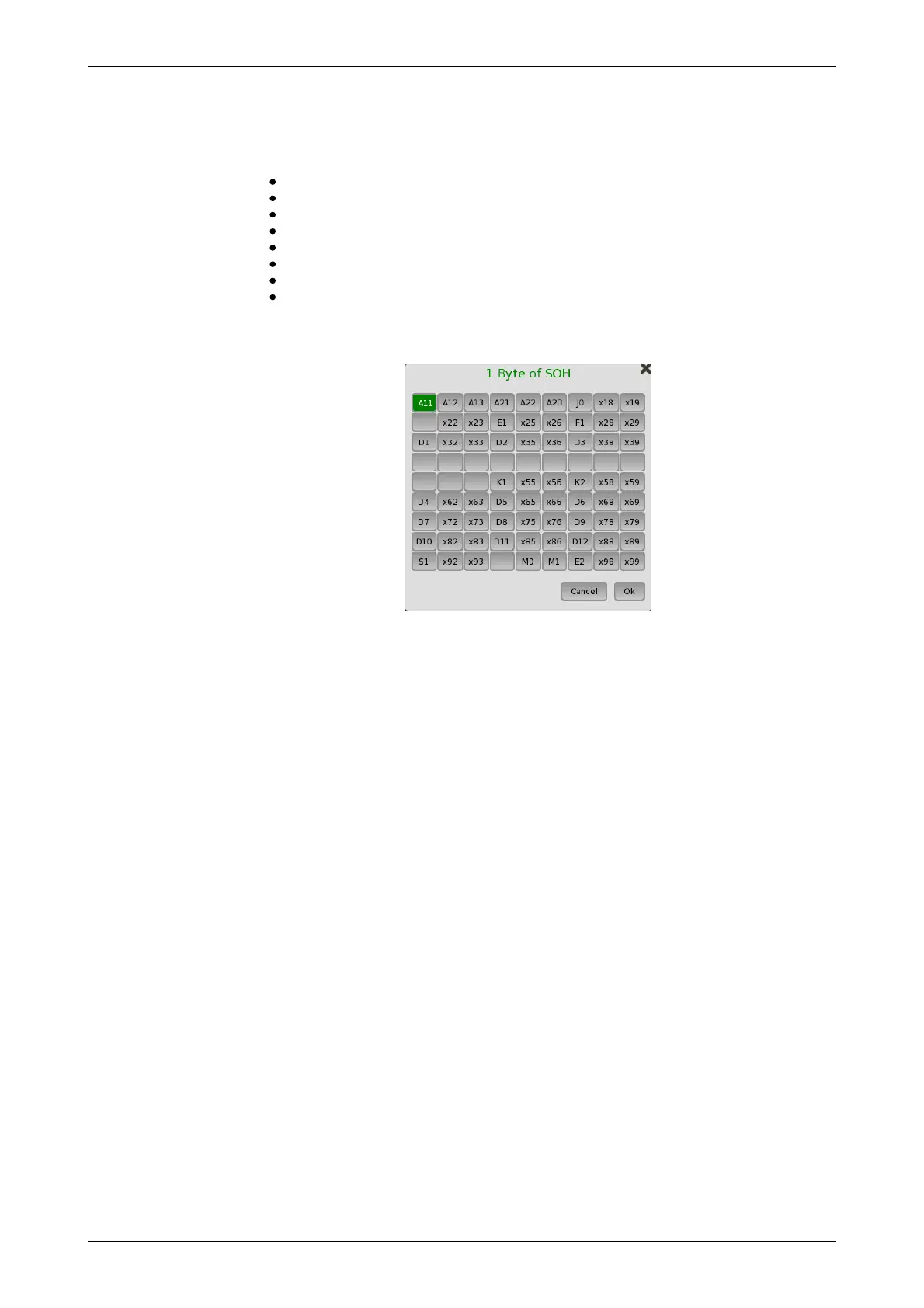

When '1 byte of SOH' is selected, touch the Byte Pos button to launch the 1
Byte of SOH dialog box. Select the byte to overwrite in the dialog box.
Use the drop-down menu to select the clock source. This is fixed to
Received when the Port Mode is set to Through or OH overwrite.
Timing Source
Internal: Internal clock of the module
External: The clock input to the connector
Received: The clock generated from the received signal
When External or Received is set, the right hand lamp indicates whether
clock is detected or not.
Displays the Transceiver information when the option except "Electrical" is
selected to the transmitter.
5.1.1.2 SDH Frame Setup
Touching the navigation area button which represents the transmitter's SDH
layer will launch the following screen.
