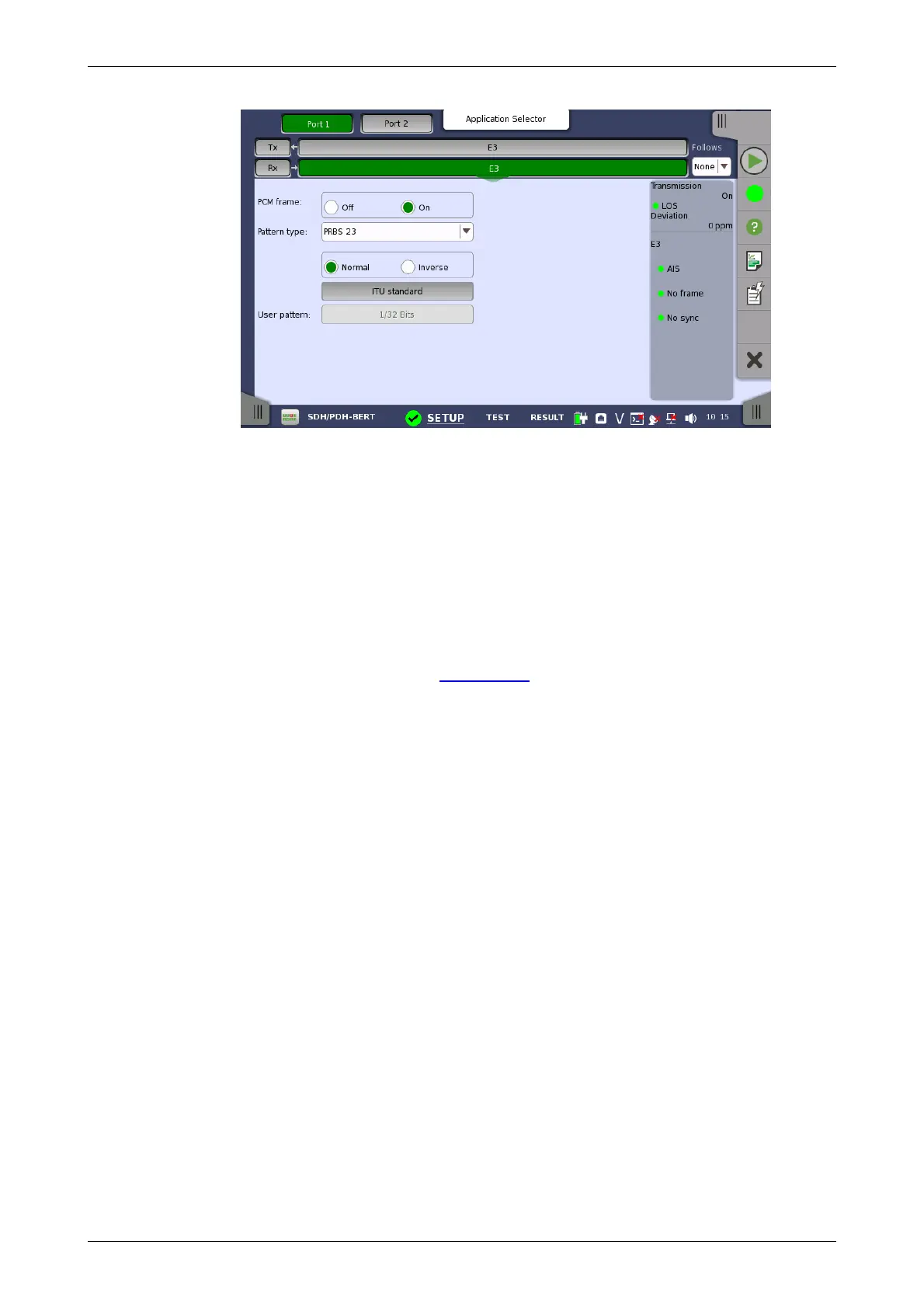

Follows
Physical Status
To make the currently selected receiver follow either the transmitter or Port
1 receiver (i.e. copy its settings), touch the drop-down menu in the
navigation area and select the relevant value. The receiver settings continue
to follow the change of either the transmitter or Port 1 receiver. The default
setting is None. Note that the Port 1 receiver cannot follow the Port 2
receiver.
PCM frame
Use the PCM frame radio buttons to enable (On) or disable (Off) the status
of the PCM frame.
Pattern type
Select the requested pattern. Available patterns are the same as the
transmitter setup. Refer to Pattern type in "E1 Setup and Status".
Touch 'Normal' or 'Inverse' pattern type.
Touching the 'ITU standard' button will apply ITU-T O.150 recommended
Pattern type for 34 Mbit data rates (PRBS 23 Inverse).
User pattern
User pattern field is enabled if Pattern type is set to User [32] bit or User
[2084] bit. Touch the User pattern field and use the launched Pattern
Editor dialog box to define the user pattern. Depending on the selected
pattern type, different user pattern setup options will be available.
The length can be any length from 1 bit to 32 bits or from 1 bit to 2048 bits.
5.5.3 Status Information
This section describes the status information available for the E3 layer in the
status area of the Ports Setup screen.
5.5.3.1 Status Summary
The status summary displayed for the E3 layer consists of the following
information:
The topmost part of the status area gives you access to information about
the current physical status of the selected interface. A summary consisting
of the most relevant status indicators is displayed constantly. By touching
the summary, you can launch a display that contains the detailed status
information.
